Electrical Diagrams

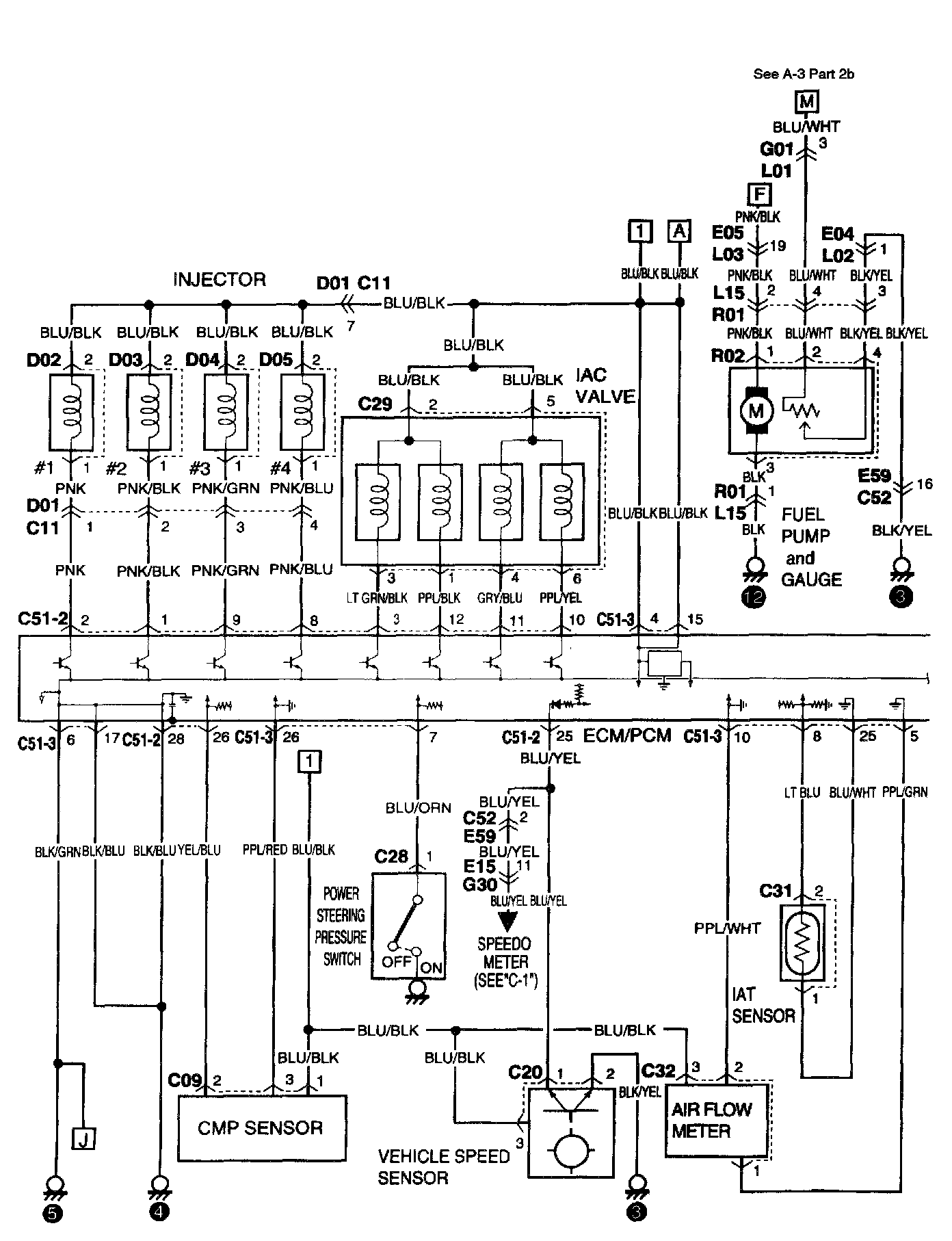

A-3 Part 1a - Ignition, Engine, Emission And 4WD Control System:

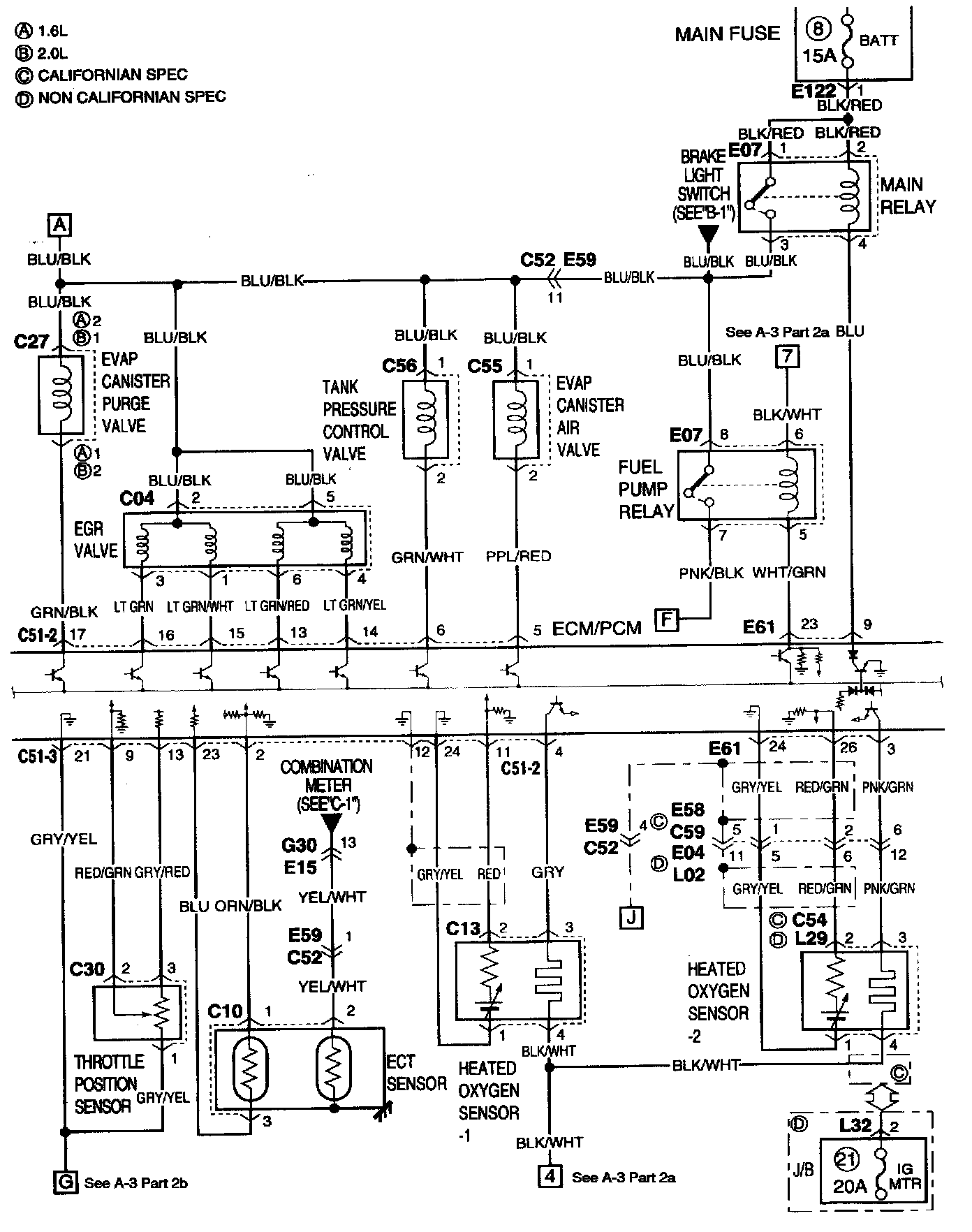

A-3 Part 1b - Ignition, Engine, Emission And 4WD Control System:

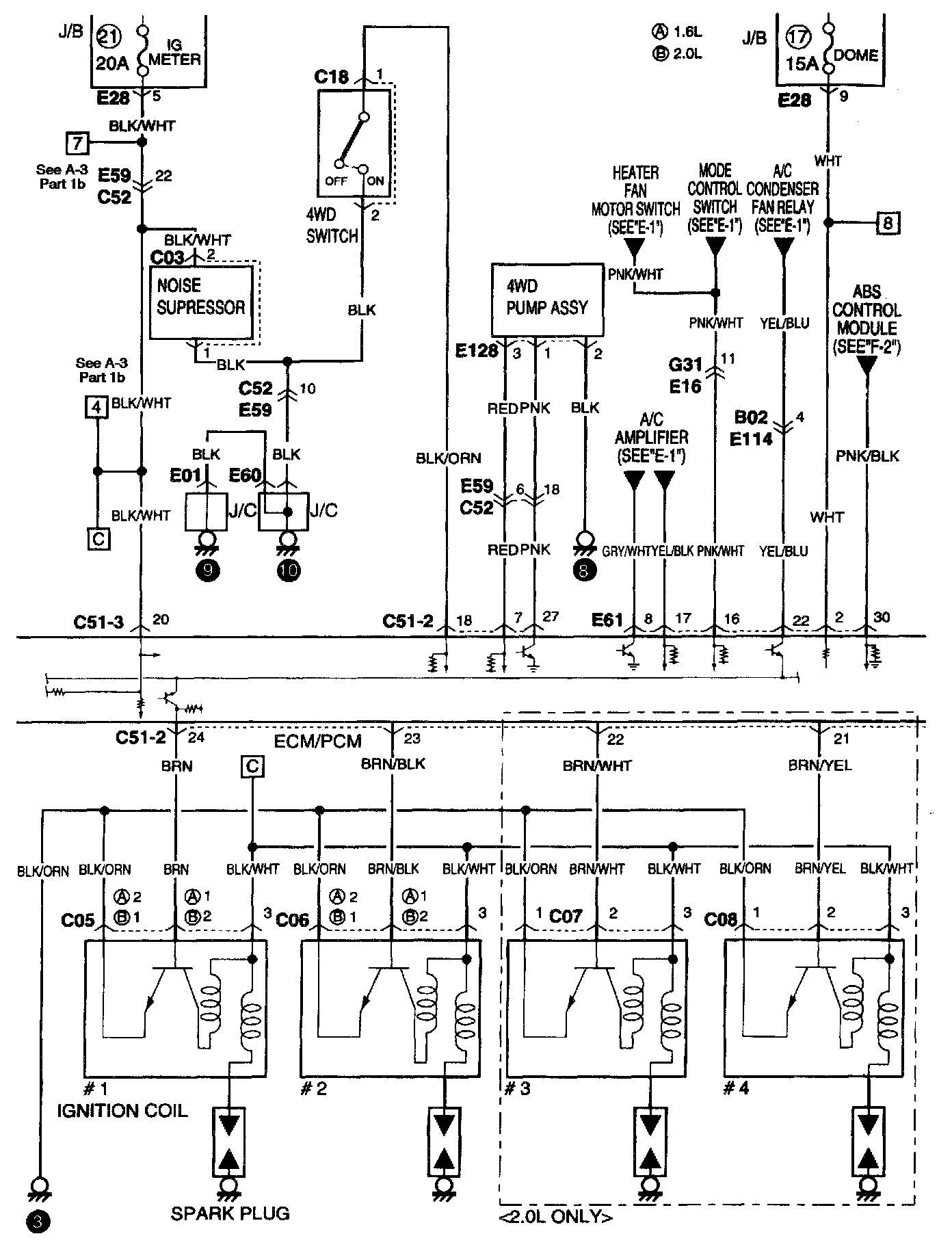

A-3 Part 2a - Ignition, Engine, Emission And 4WD Control System:

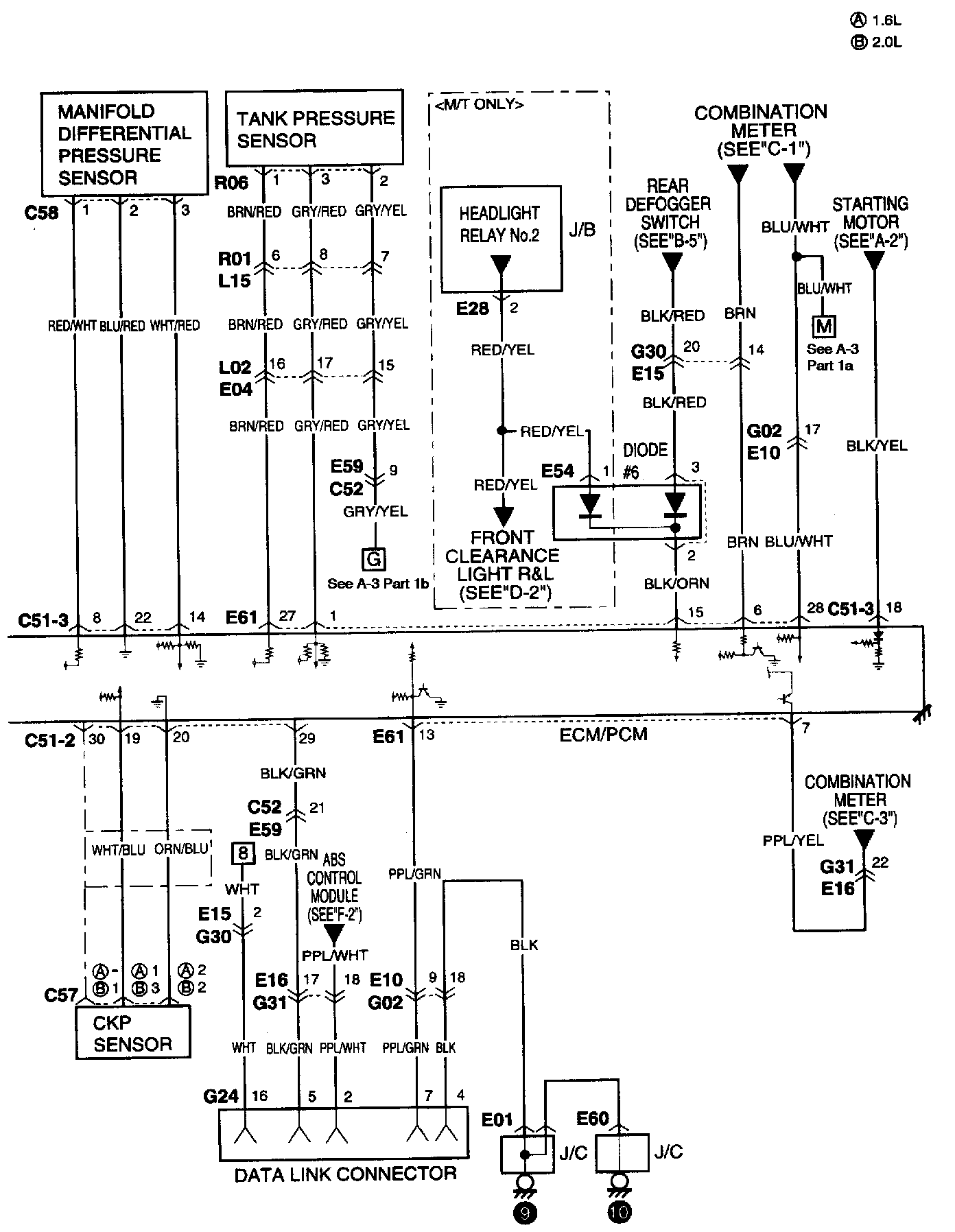

A-3 Part 2b - Ignition, Engine, Emission And 4WD Control System:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
