Engine Room

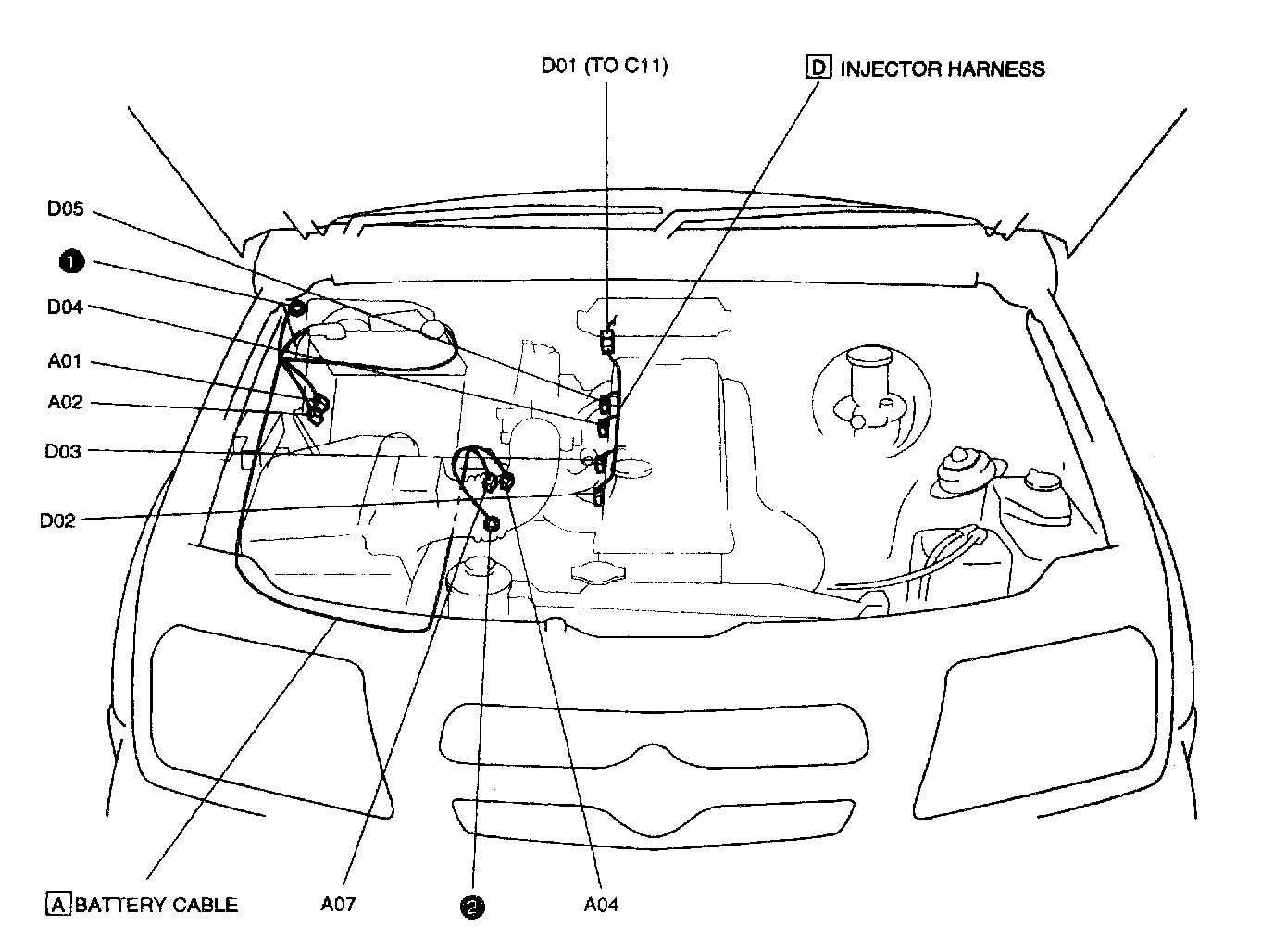

A: Battery Cable, D: Injector Harness:
A: Battery Cable, D: Injector Harness Connectors:

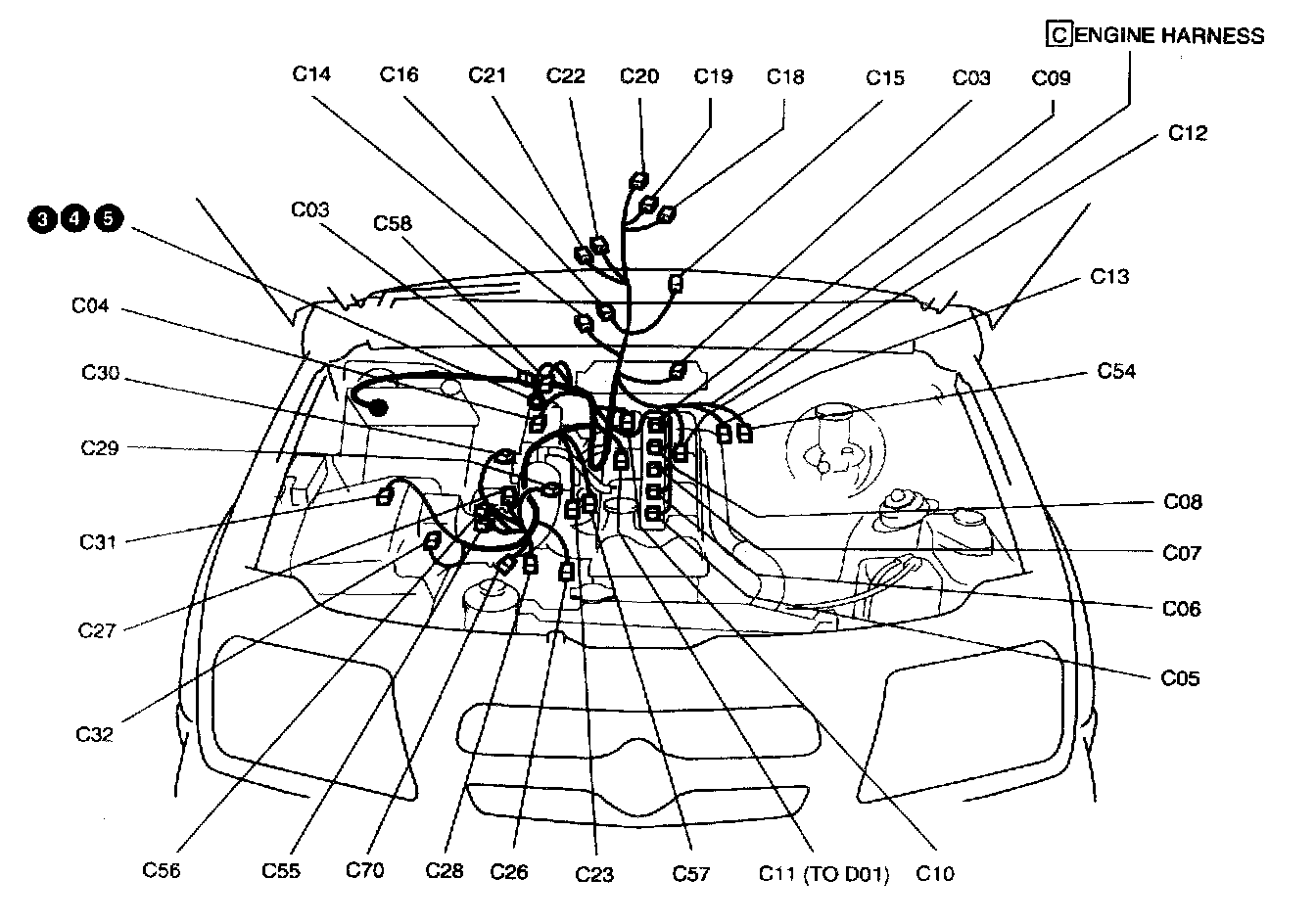

C: Engine Harness:

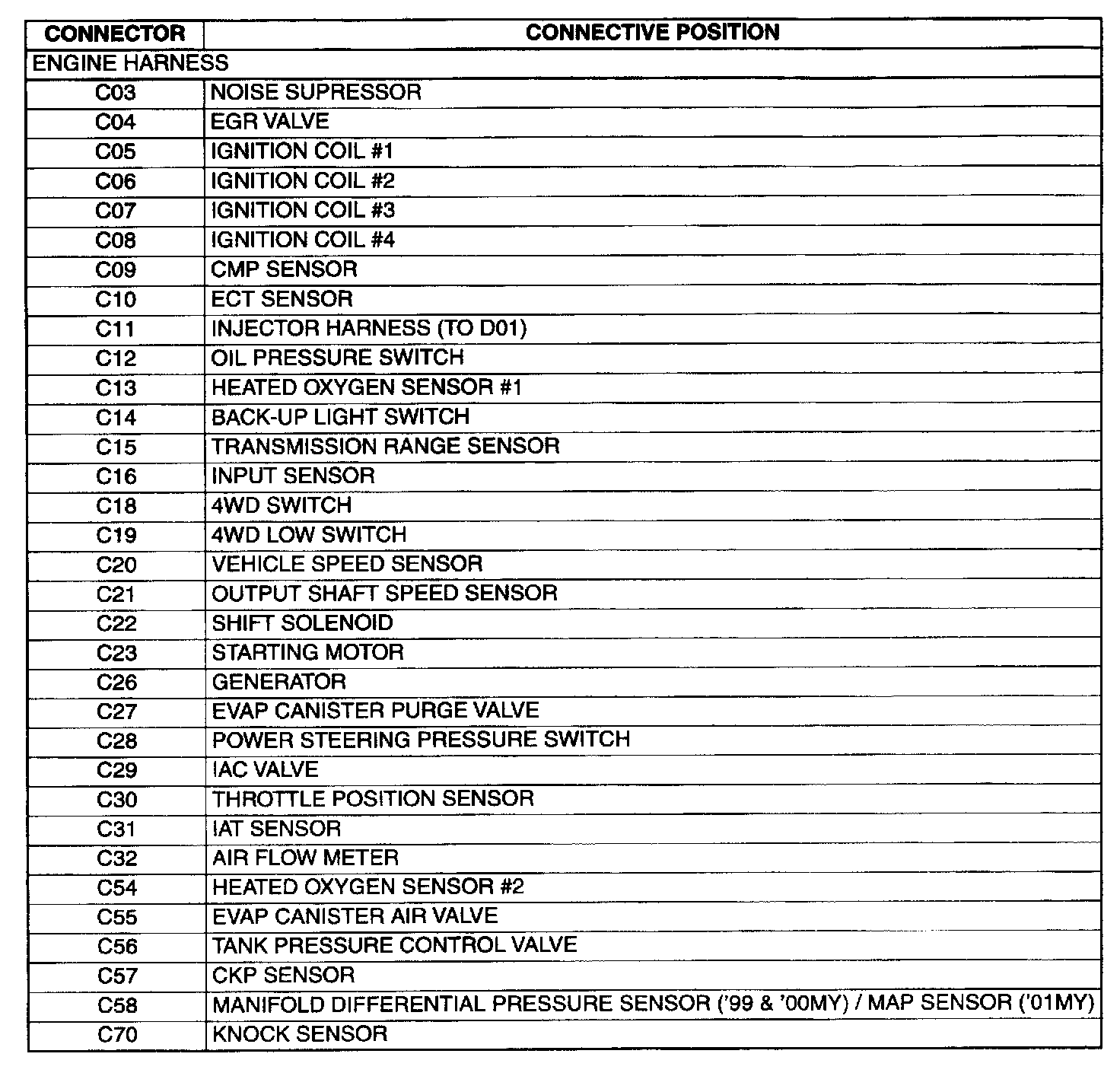

C: Engine Harness Connectors:

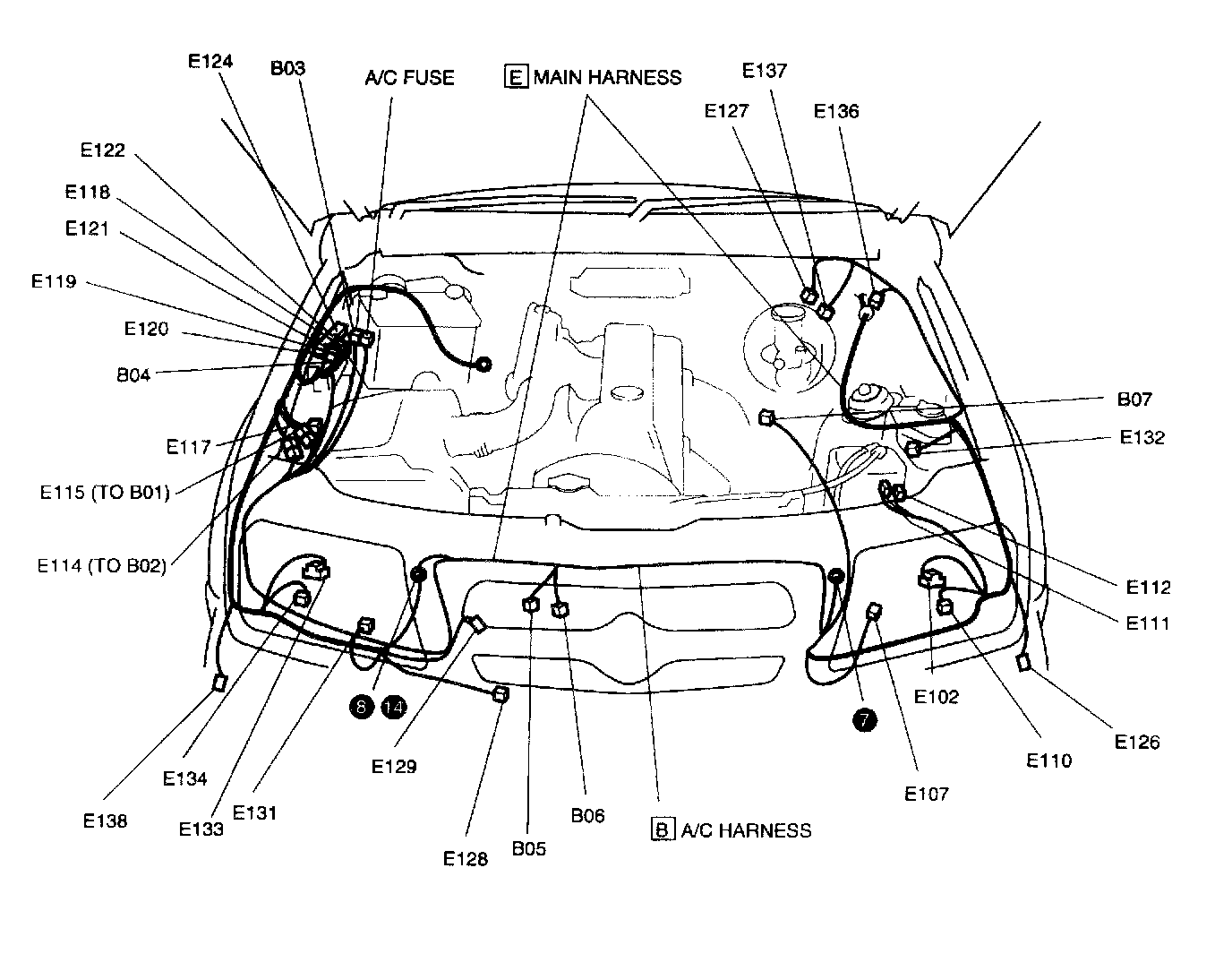

B: A/C Harness, E: Main Harness:

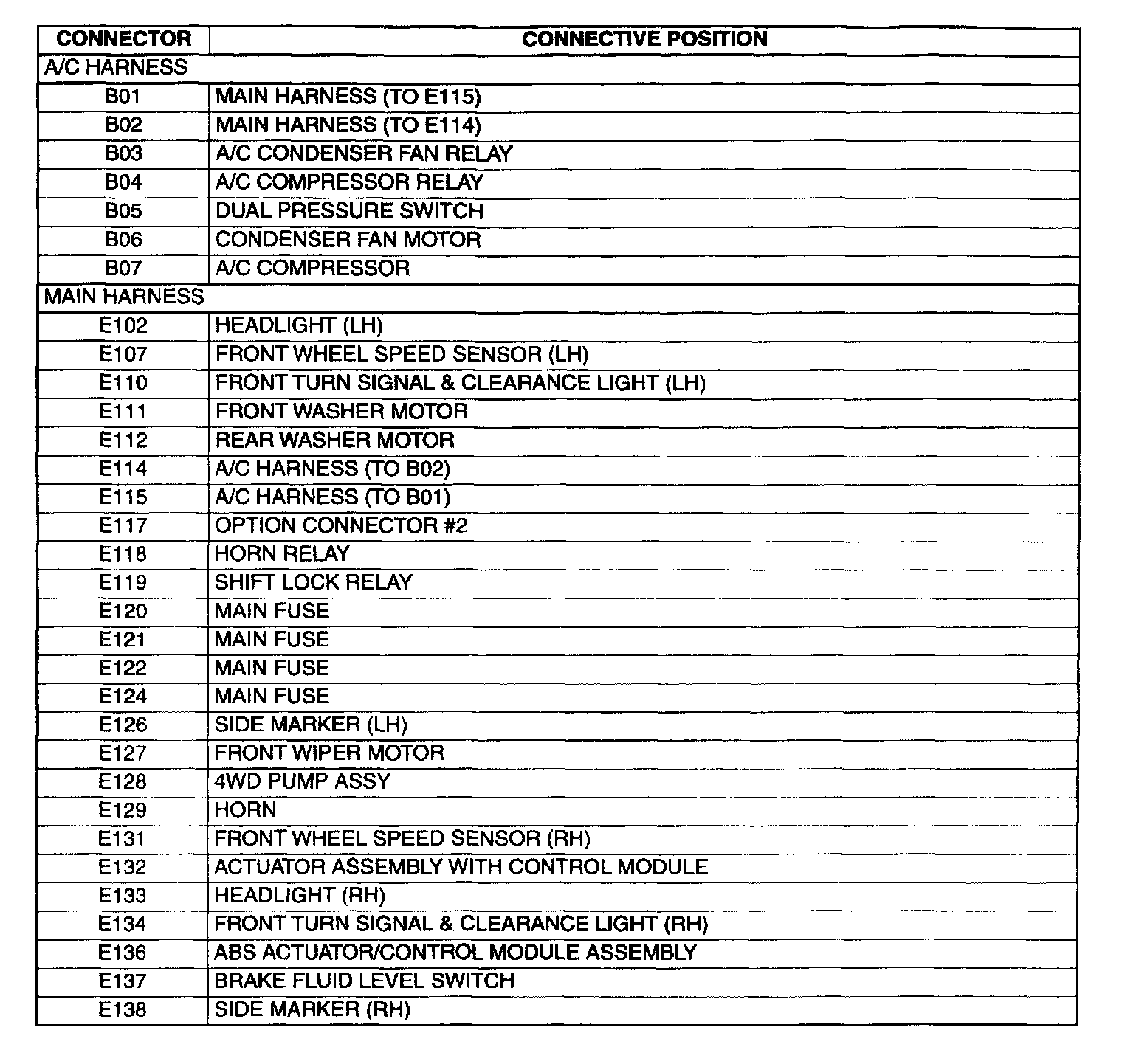

B: A/C Harness, E: Main Harness Connectors:
