Electrical Diagrams

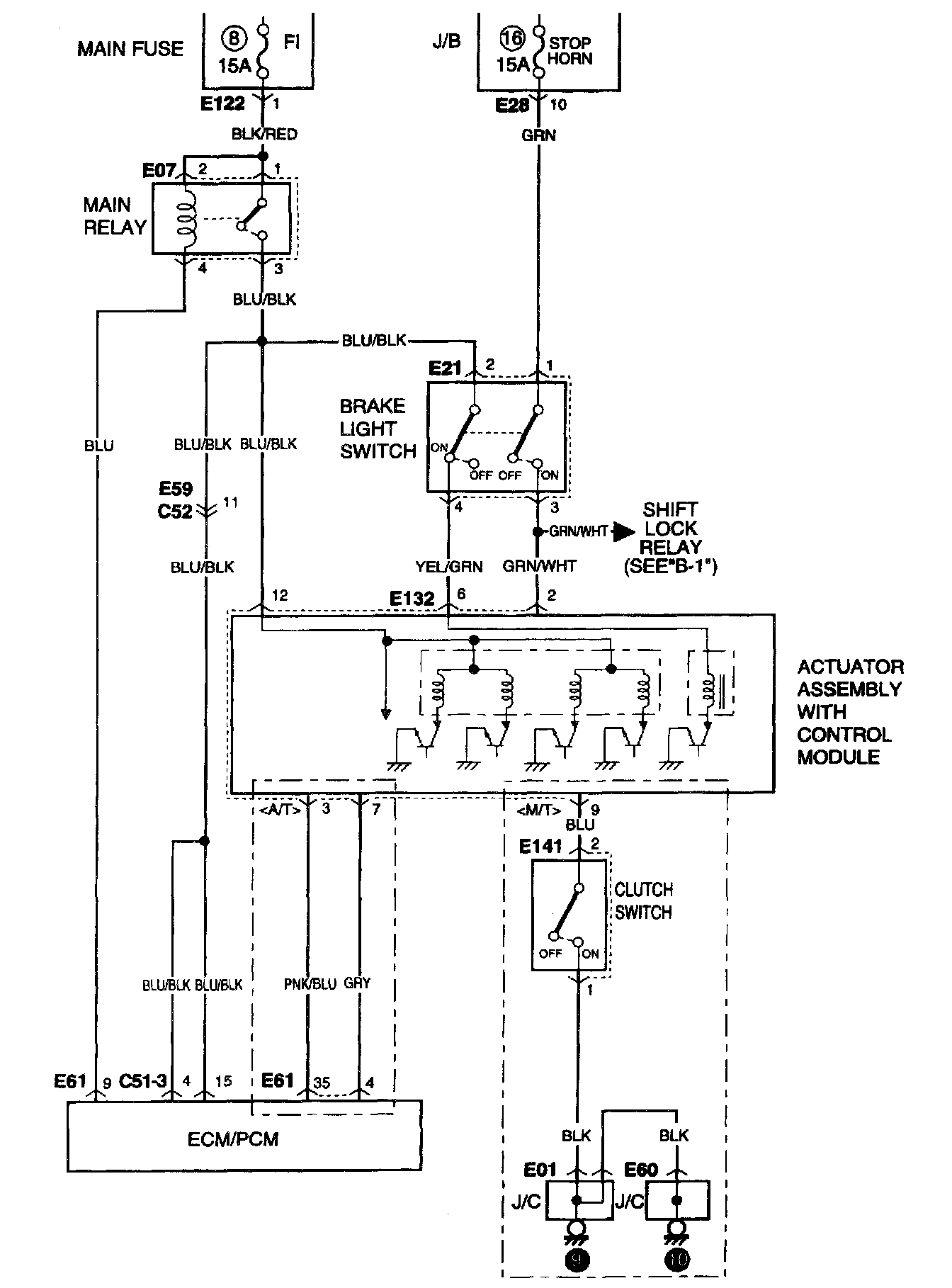

F-3 Cruise Control System Part 1:

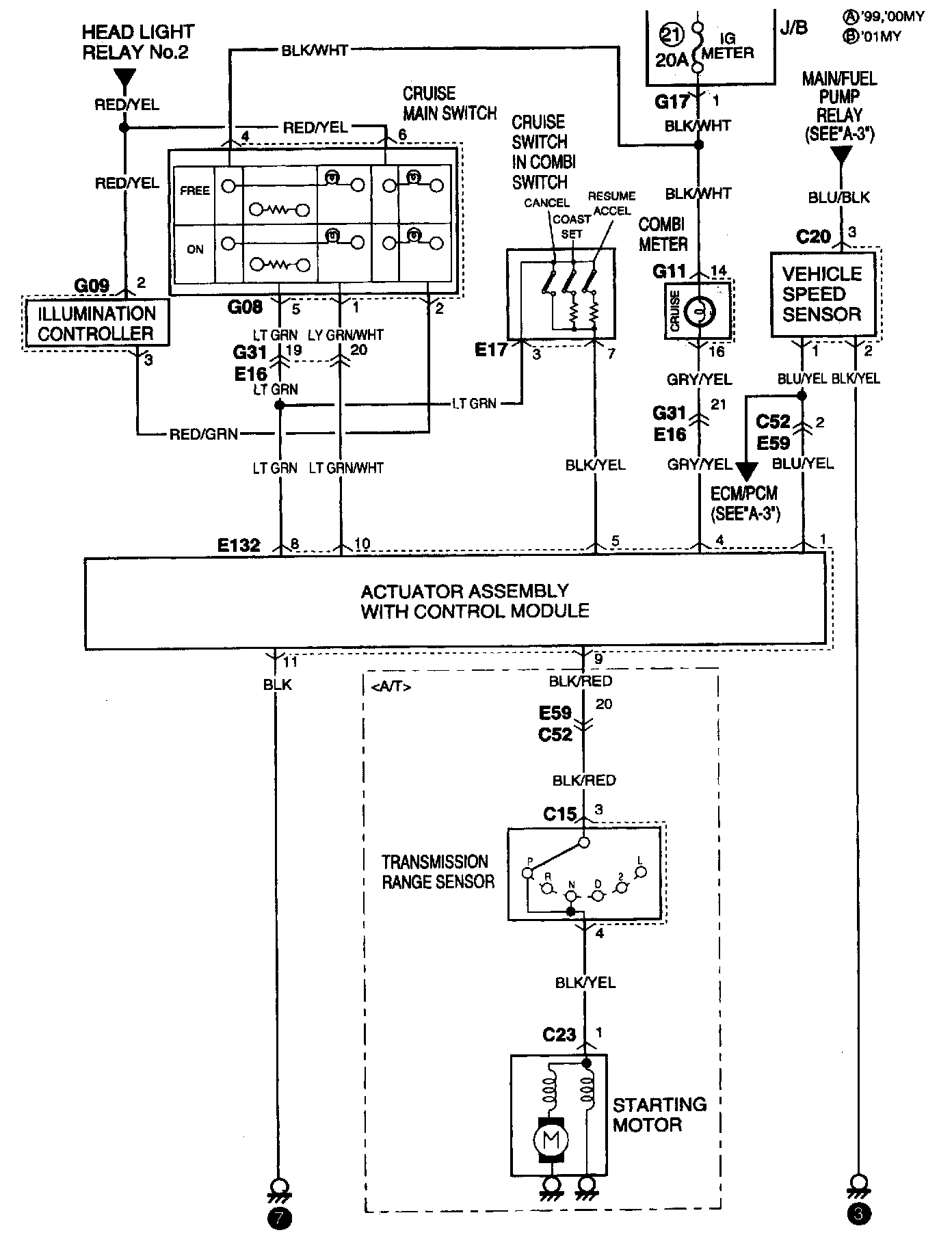

F-3 Cruise Control System Part 2:
NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
