P1500

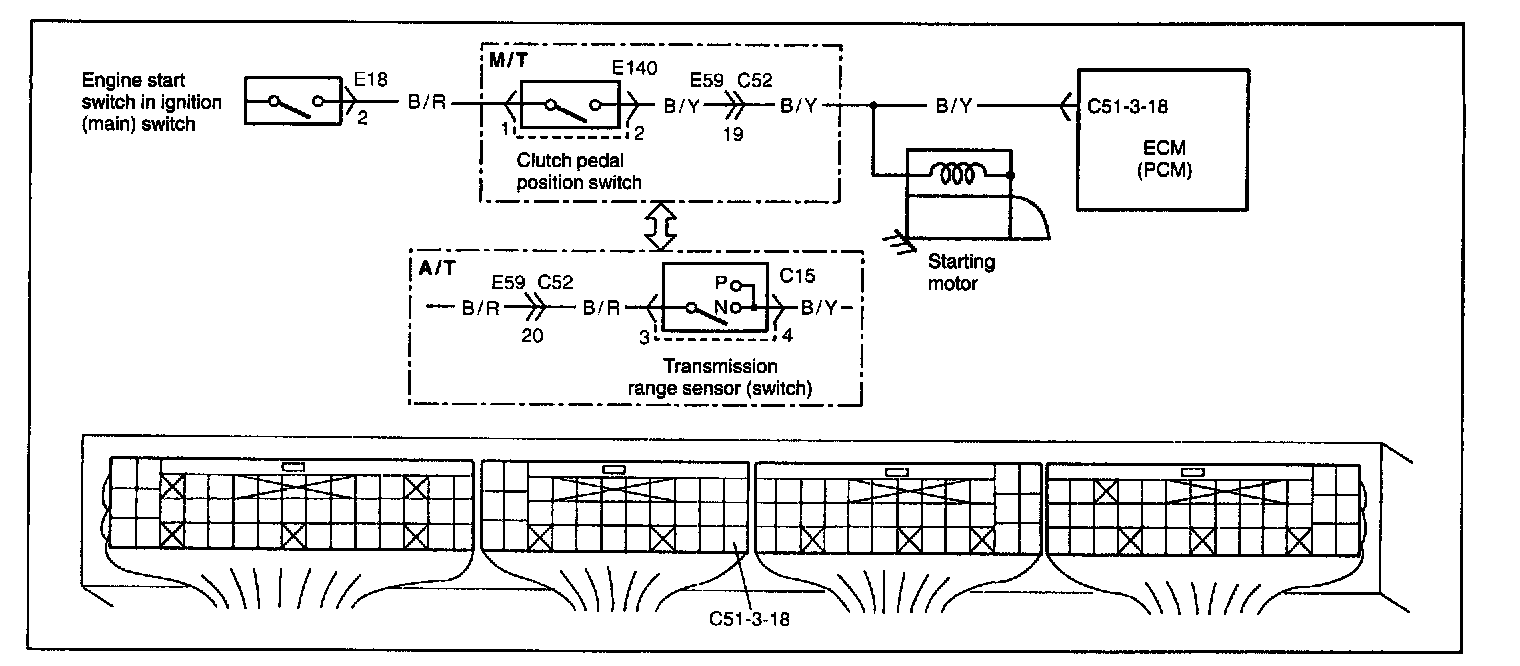

Wiring Diagram:






Detecting Condition/Trouble Area:






DTC CONFIRMATION PROCEDURE
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC by using scan tool, then start engine and run it for 3 min. or more.
3. Check DTC and pending DTC by using scan tool.

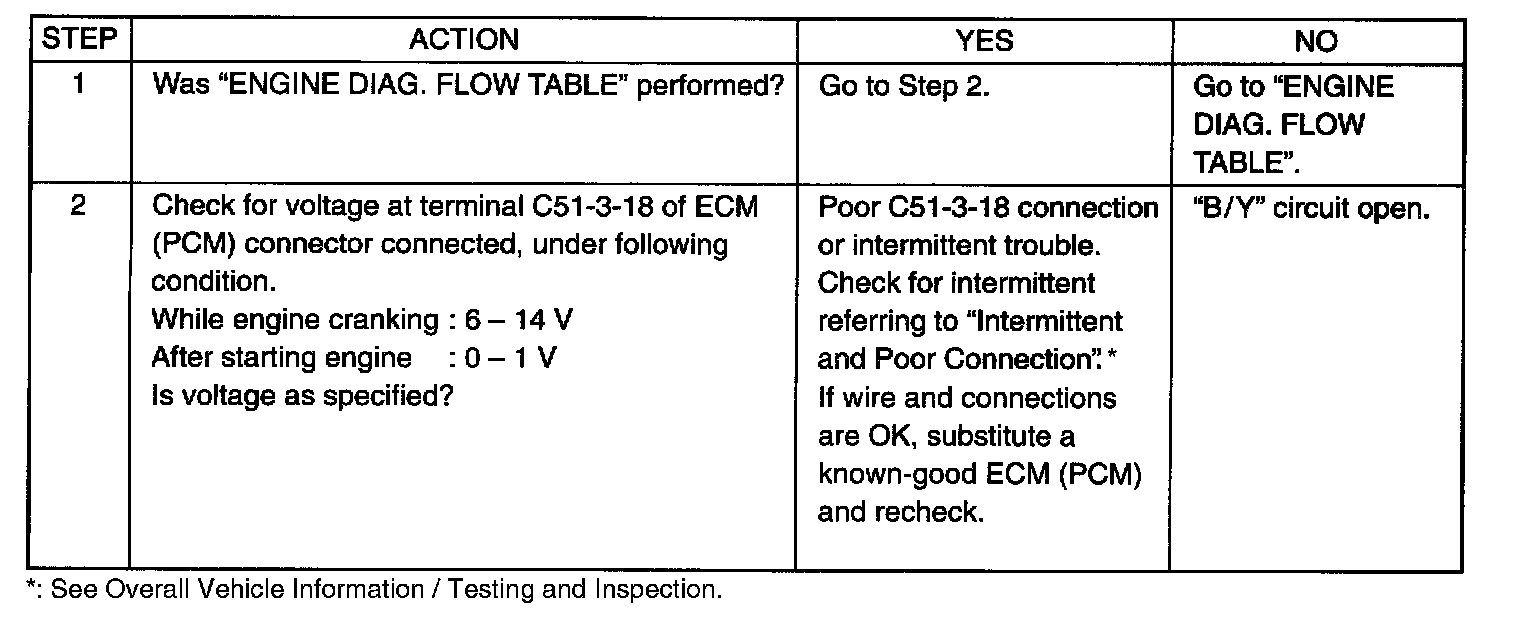

Troubleshooting ( Steps 1 - 2 ):
