P0461

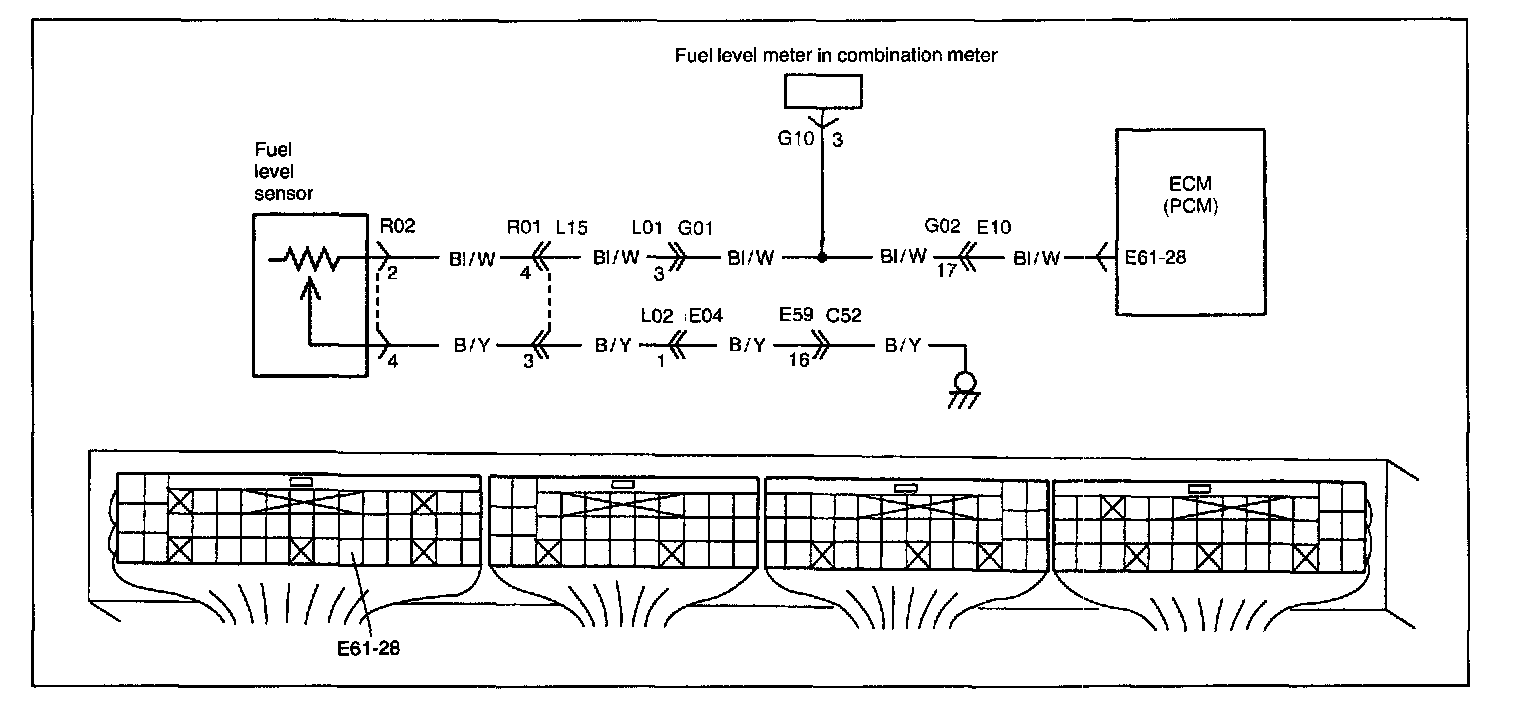

Wiring Diagram:






Detecting Condition/Trouble Area:






DTC CONFIRMATION PROCEDURE
DTC P0461 Flow Table includes system circuit confirmation inspection.

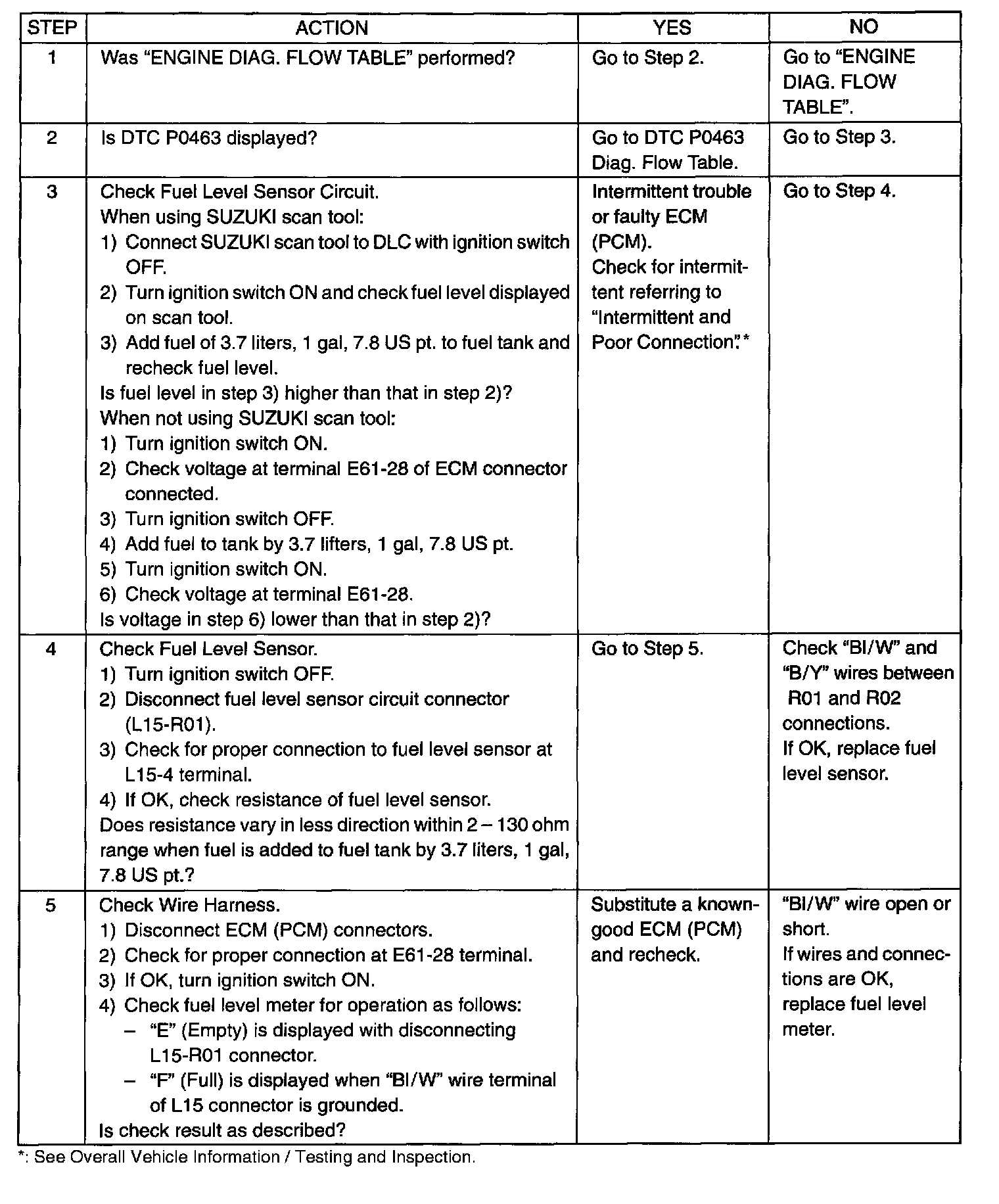

Troubleshooting ( Steps 1 - 5 ):
