P0113

Wiring Diagram:

Detecting Condition/Trouble Area:

DTC CONFIRMATION PROCEDURE
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed and engine coolant temp. 110 °C, 230 °F or lower for 10 sec. or more.
3. Check DTC and pending DTC by using scan tool.

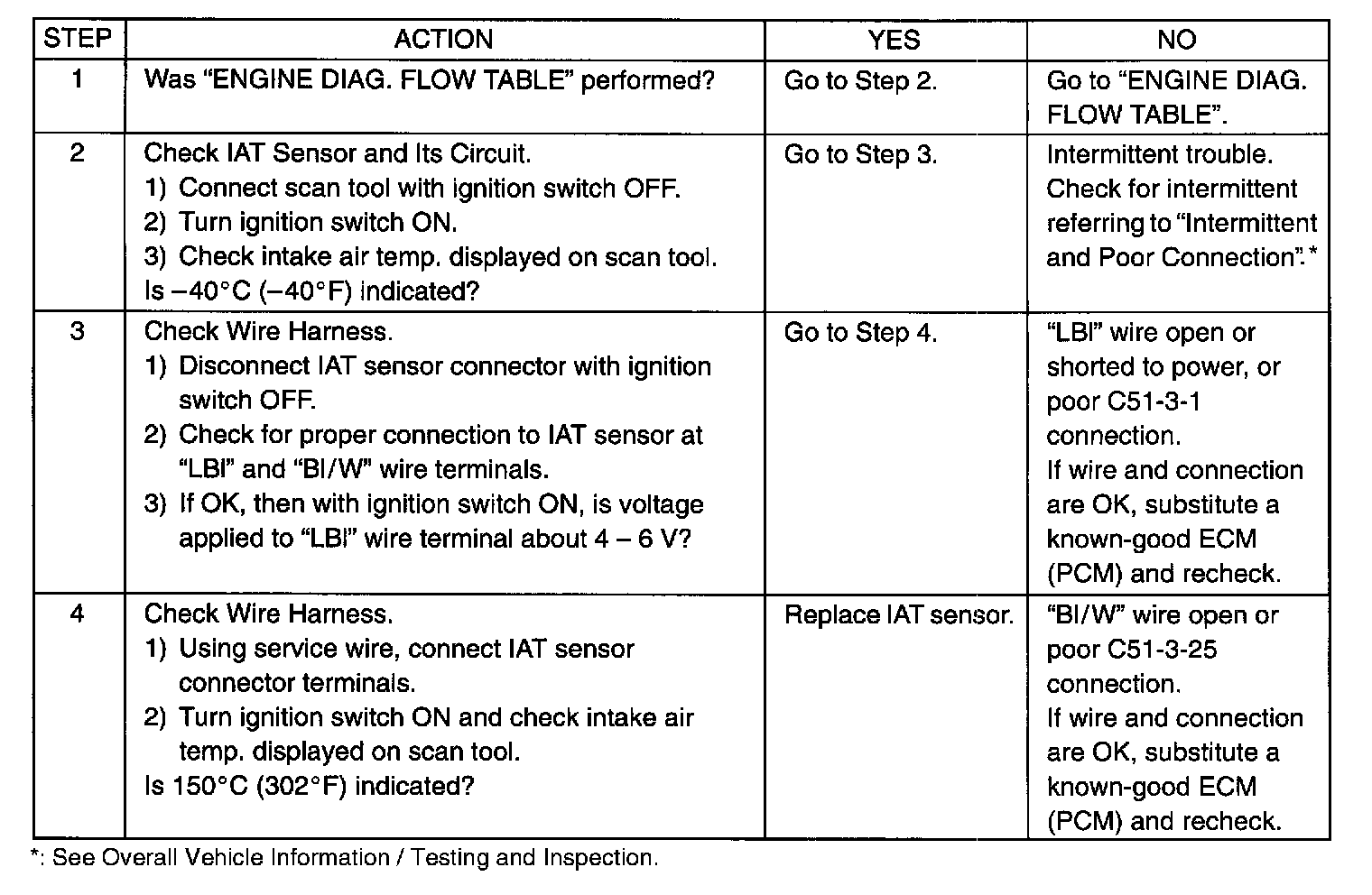

Troubleshooting ( Steps 1 - 4 ):
