Clutch Coil: Installation

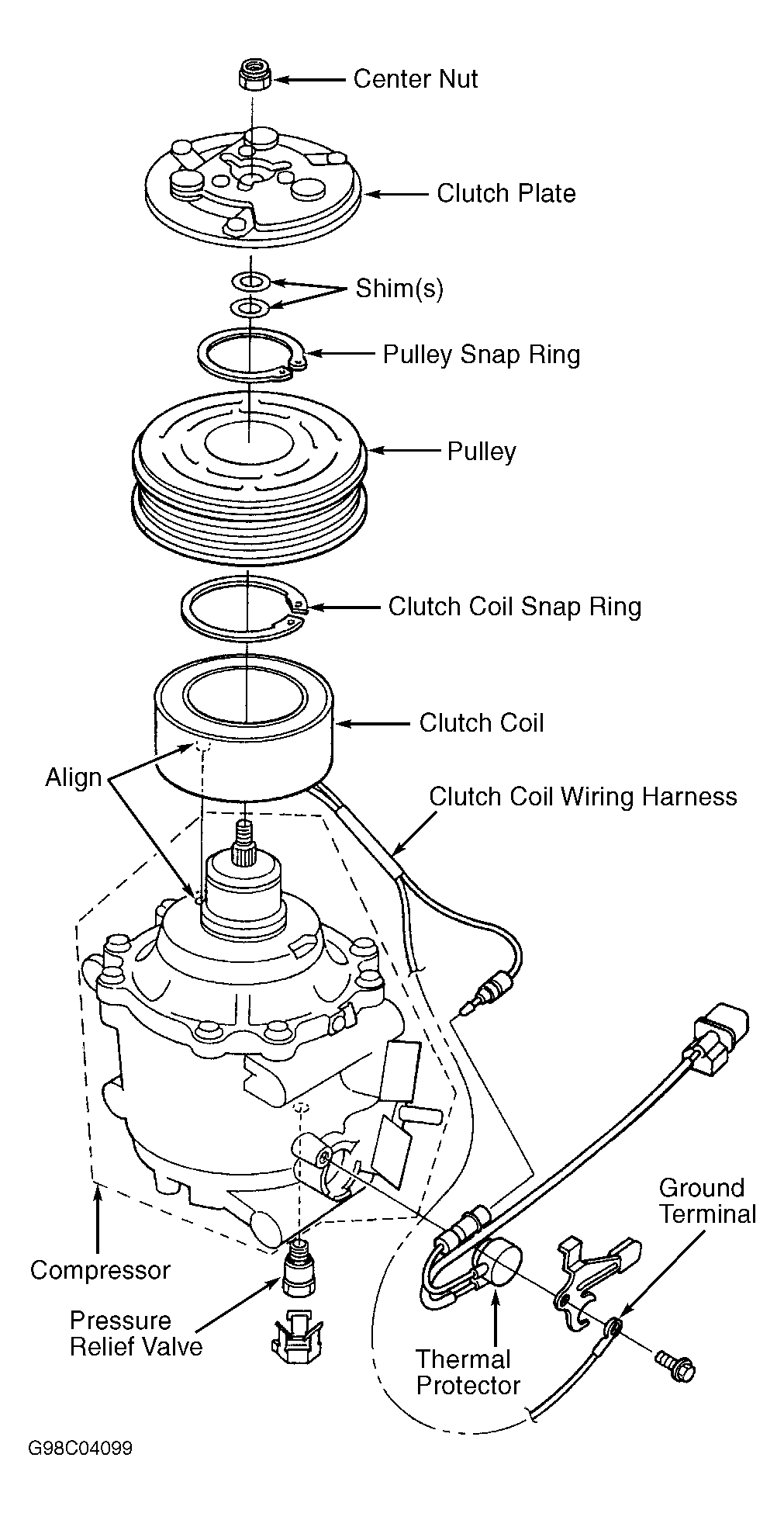

- Install clutch coil in reverse order of removal. Ensure wire side is facing down and pin on clutch coil boss is aligned with hole in compressor housing. Ensure snap ring is properly seated. Properly route and connect clutch coil wiring harness.
- Position pulley over clutch coil. Using Hub Guide (07965-6920500), press pulley onto compressor boss. Maximum press load is 5690 psi (400 kg/cm2
) or 882 lbs. (400 kg). If pulley does not press on straight, remove pulley and inspect pulley and compressor boss for damage or burrs.
- Hold clutch plate and tighten center nut to 13 ft. lbs. (18 N.m). Ensure air gap between clutch plate and pulley is 0.014-0.026" (0.35-0.65 mm). If air gap is incorrect, add or remove shim(s) as necessary.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
