Disabling Air Bag System (ECHO)

  1. Obtain radio anti-theft protection code from owner prior to servicing vehicle or deactivate radio anti-theft function before disconnecting vehicle battery.
  2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.
  3. Remove steering column lower cover. See Figure. Disconnect driver air bag module Yellow 2-pin connector. Air bag connector terminals are automatically shorted together. See Figure.

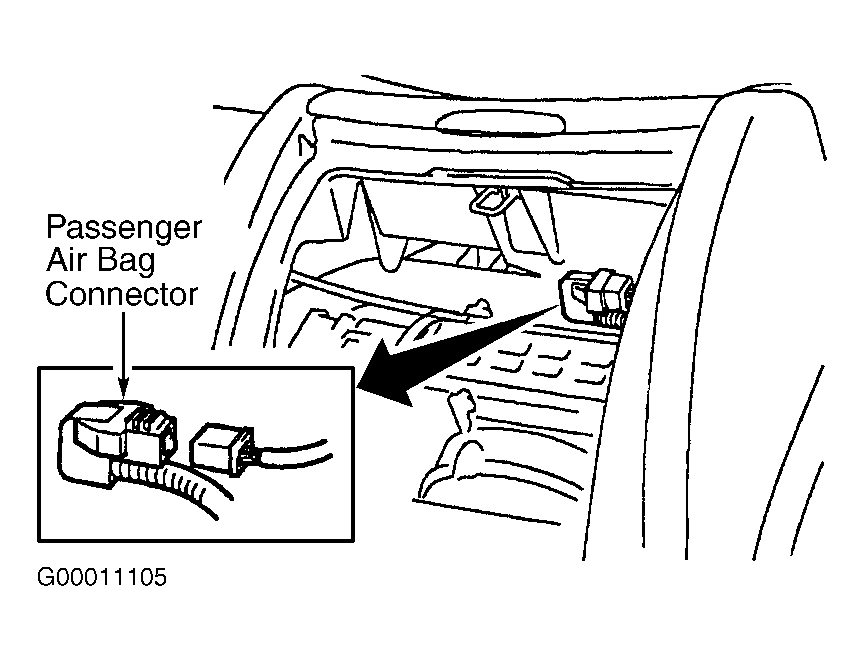

  4. Remove glove box. Unplug passenger air bag module Yellow 2-pin connector, accessible through glove box opening. See Figure. Air bag connector terminals are automatically shorted together
  5. Unplug left and right seat belt pretensioner Yellow 2-pin connectors. On 4-door models, remove front and rear door scuff plates, and center pillar lower trim for access to seat belt pretensioners. On 2-door models, remove door scuff plates and door opening trim (rear section only). Remove rear seat cushion and seat back. Remove rear quarter trim panel.
