Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in right side of engine compartment. See Fig 1.

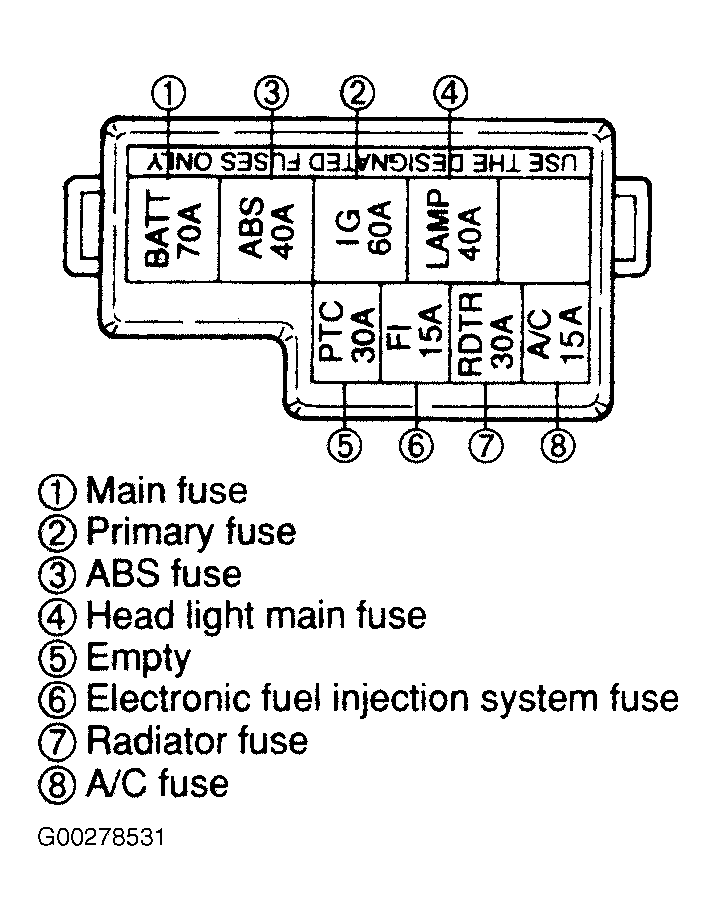

Fig 1: Locating & Identifying Under-Hood Fuse/Relay Box Components
G00278531Courtesy of SUZUKI OF AMERICA CORP.
