Front Door Window Regulator: Service and Repair

Front Door Window Regulator Removal and Installation

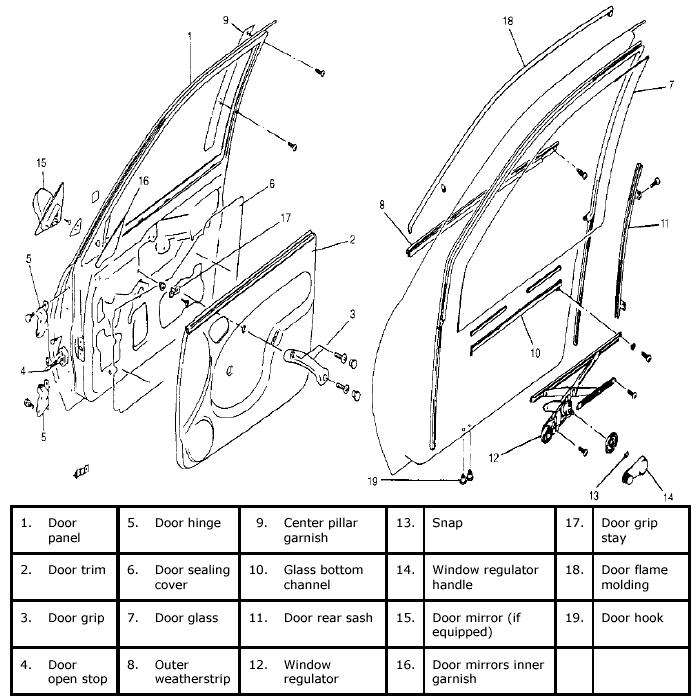

Front Door Glass Components:

Removal
1. Remove door glass.

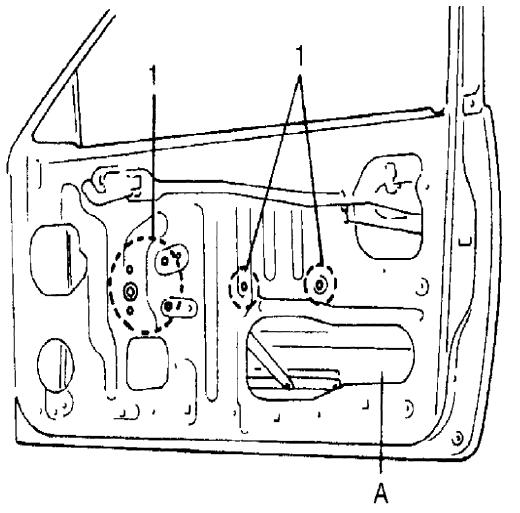

2. Remove window regulator attaching screws (1) (six pcs.).
Then, take out regulator through hole A.







Installation
Reverse removal sequence to install door window regulator.

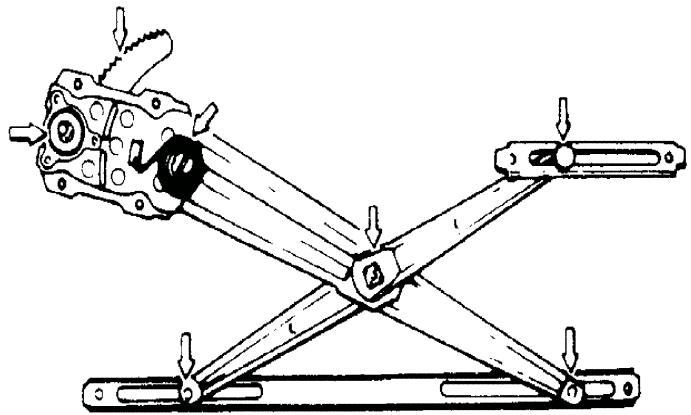

1. Apply multi-purpose grease to sliding parts.
