Symptom Related Diagnostic Procedures

Rear Window Defogger Symptom Diagnosis

The rear window defogger system has horizontal ceramic silver compound elements and two vertical bus bar. The system is operated by the defogger switch in the instrument panel.

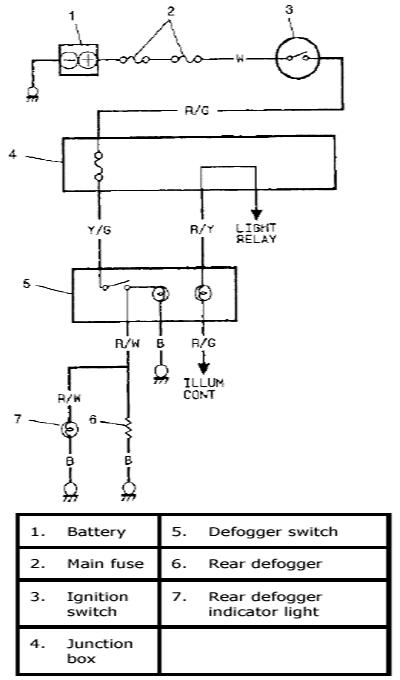

Wiring Diagram


Wiring Diagram:






Trouble Diagnosis


Trouble Diagnosis:
