Removal and Replacement

Rear Window Defogger Removal and Installation

Removal
Remove back window glass.
For removal procedure, refer to Back Door Glass Removal and Installation:Hatchback (for 2-door model) or Back Window Removal and Installation:Sedan (for 4-door model).

Installation
Before installing, disconnect negative battery cable.
1. Install back window glass.

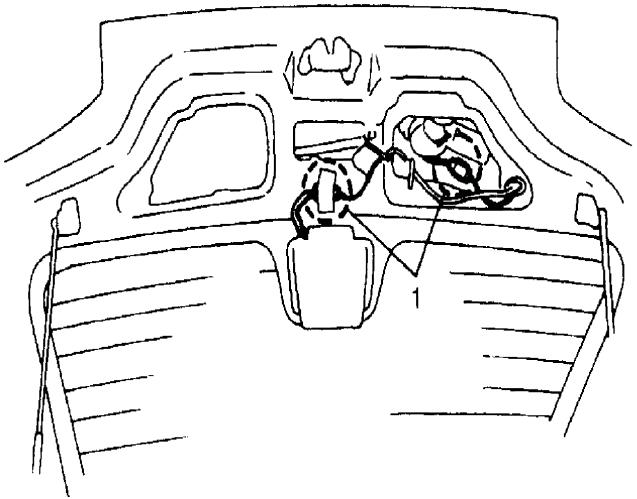

2. Connect lead wires to harness connectors (1).
3. Install defogger switch on instrument panel and connect switch connector to harness connector.
