Automatic Transmission Basic Check

AUTOMATIC TRANSMISSION BASIC CHECK

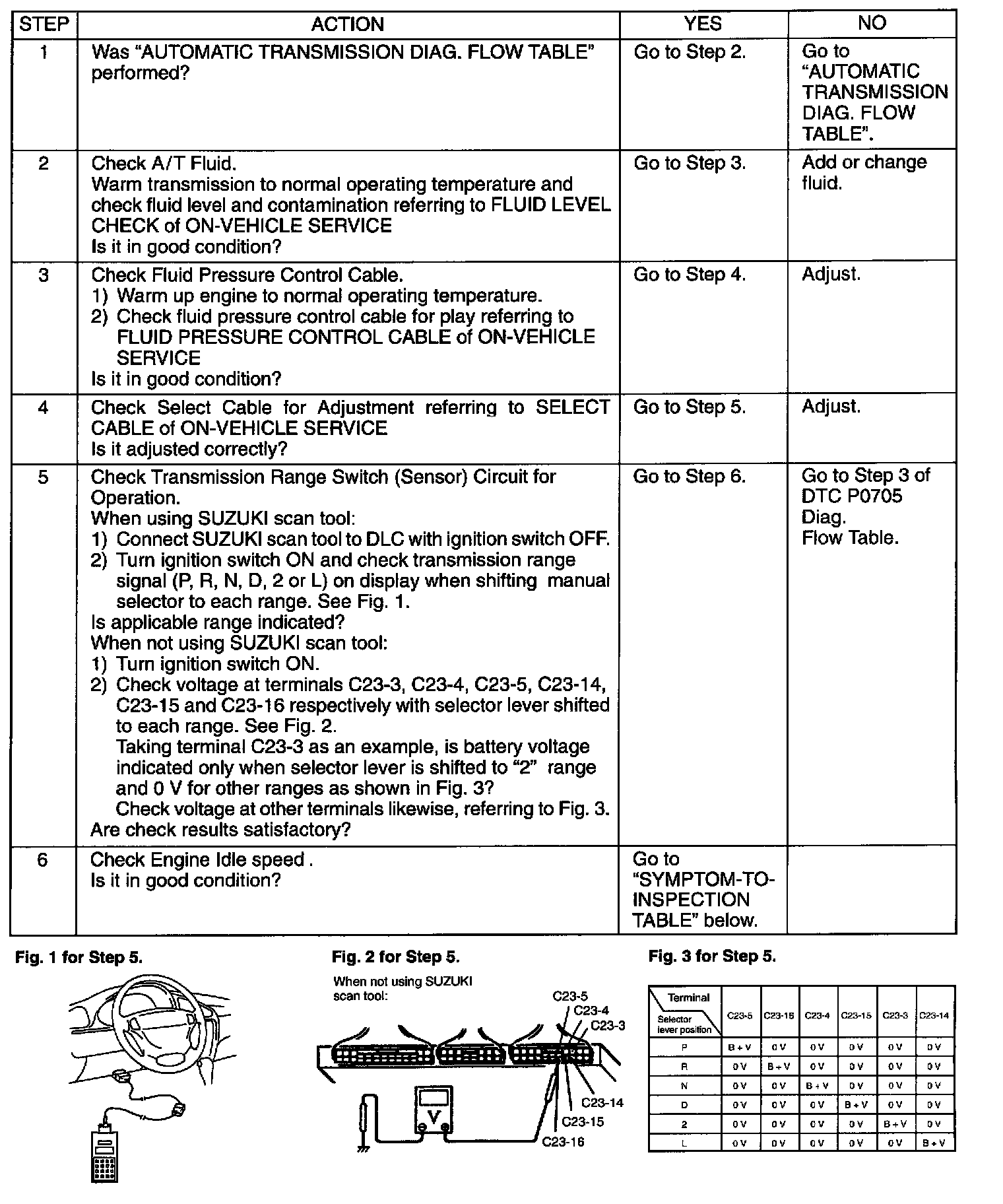

This check is very important for troubleshooting when PCM Electronic Control Module (ECM) has detected no DTC and no abnormality has been found in visual inspection. Follow the flow table carefully.
