0.9 kw Conventional Type

CRANKING CIRCUIT

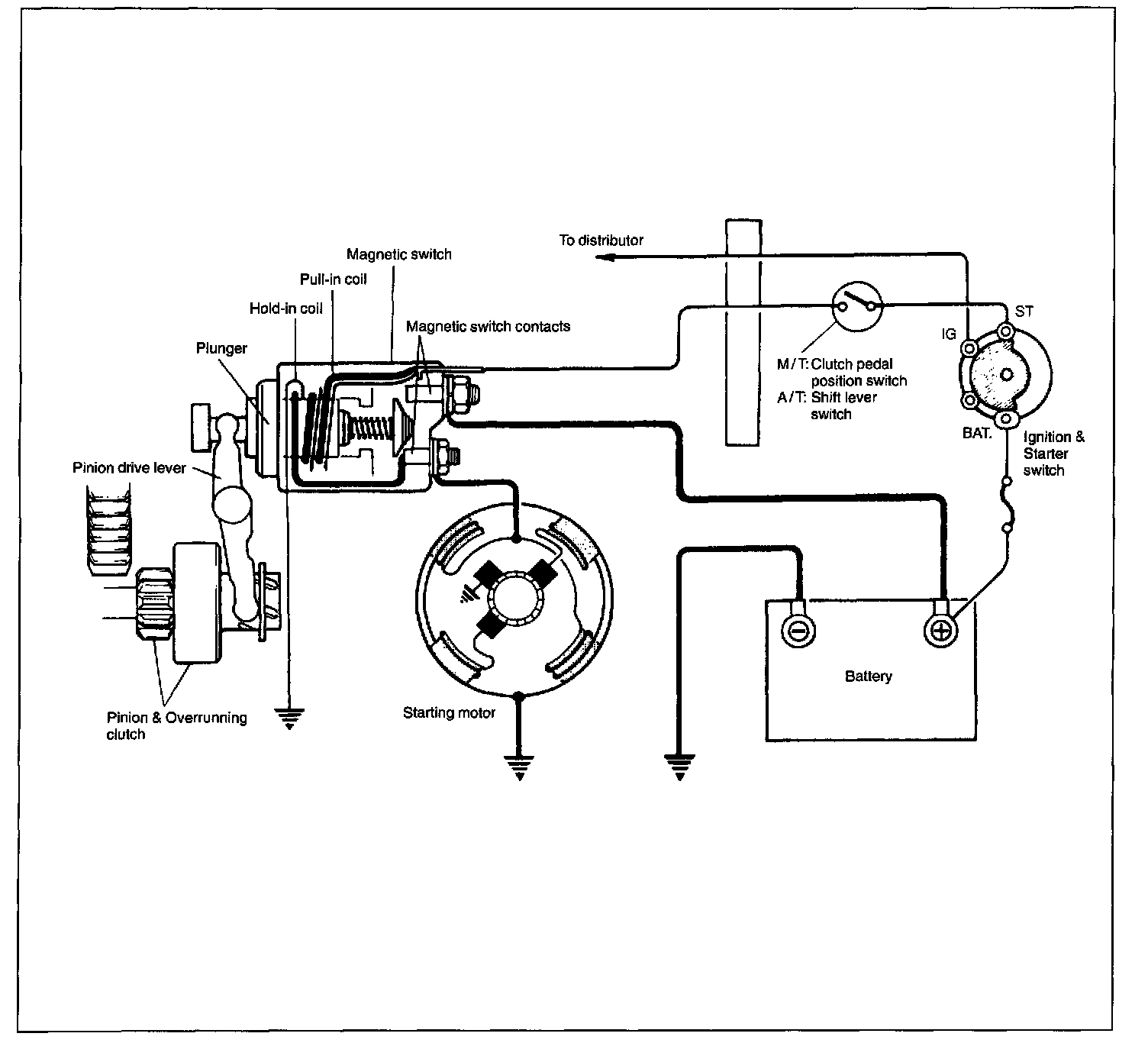

The cranking circuit consists of the battery, starting motor, ignition switch, and related electrical wiring. These components are connected electrically as shown in figure.
