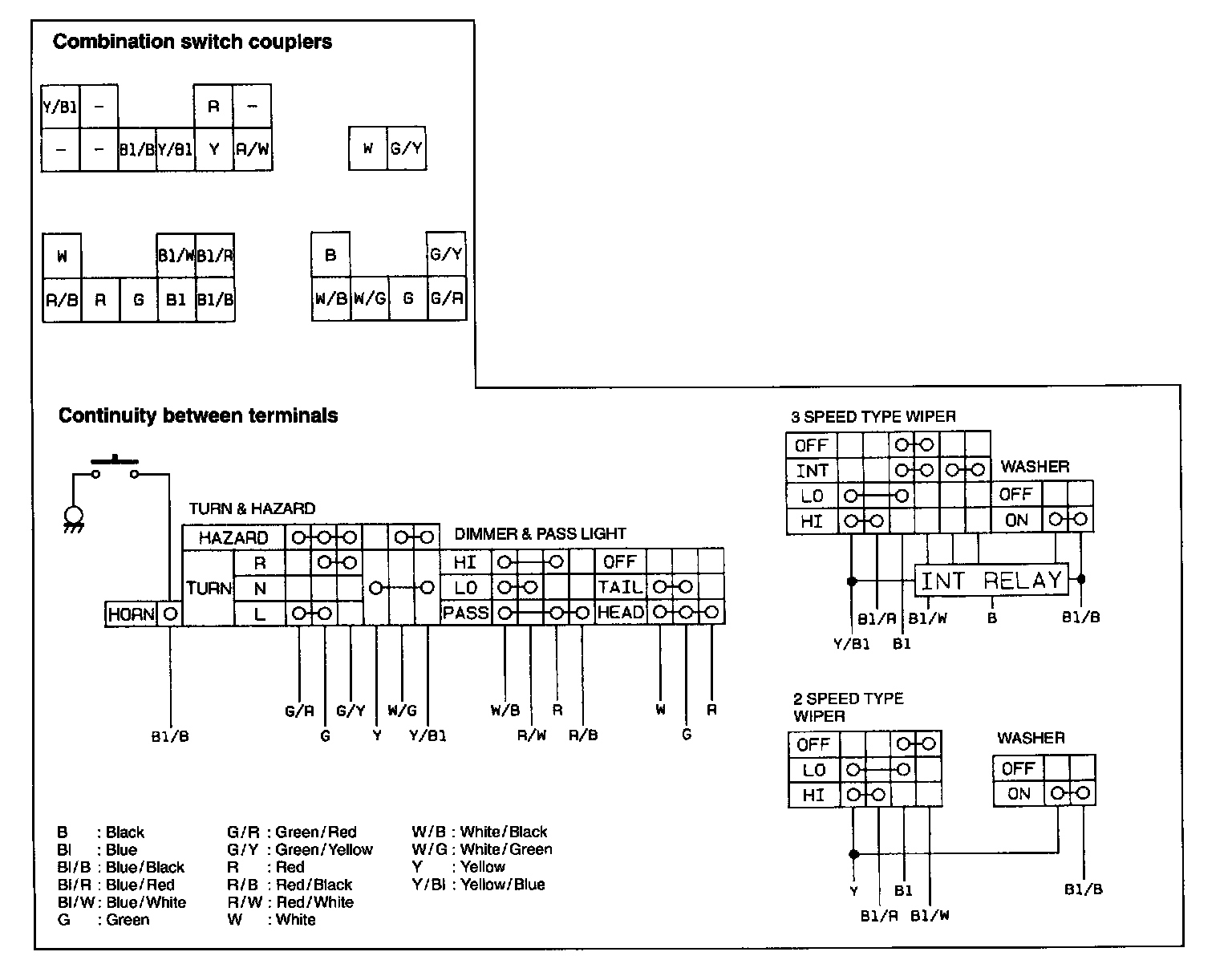

Combination Switch: Testing and Inspection




1. Disconnect battery (-) cable.
2. Disconnect combination switch lead wire connectors from junction/fuse block.
