Seat Back: Service and Repair

Rear Seatback Removal and Installation

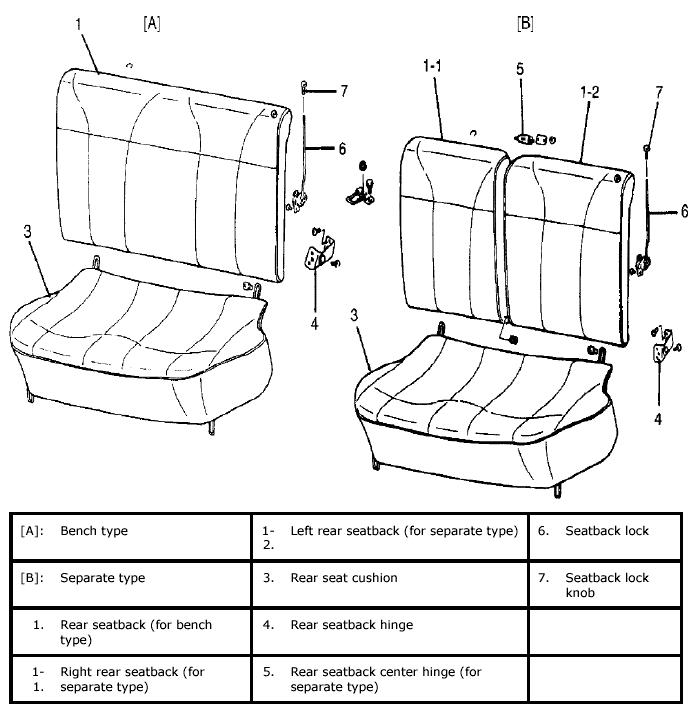

Rear Seat Components:






Removal
1. Remove luggage floor carpet.

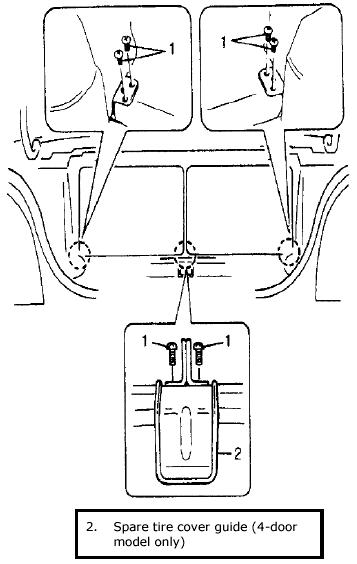

2. Remove seatback by removing its fitting nuts and screws (1).







Installation
Reverse removal procedure for installation.
