Hydraulic System

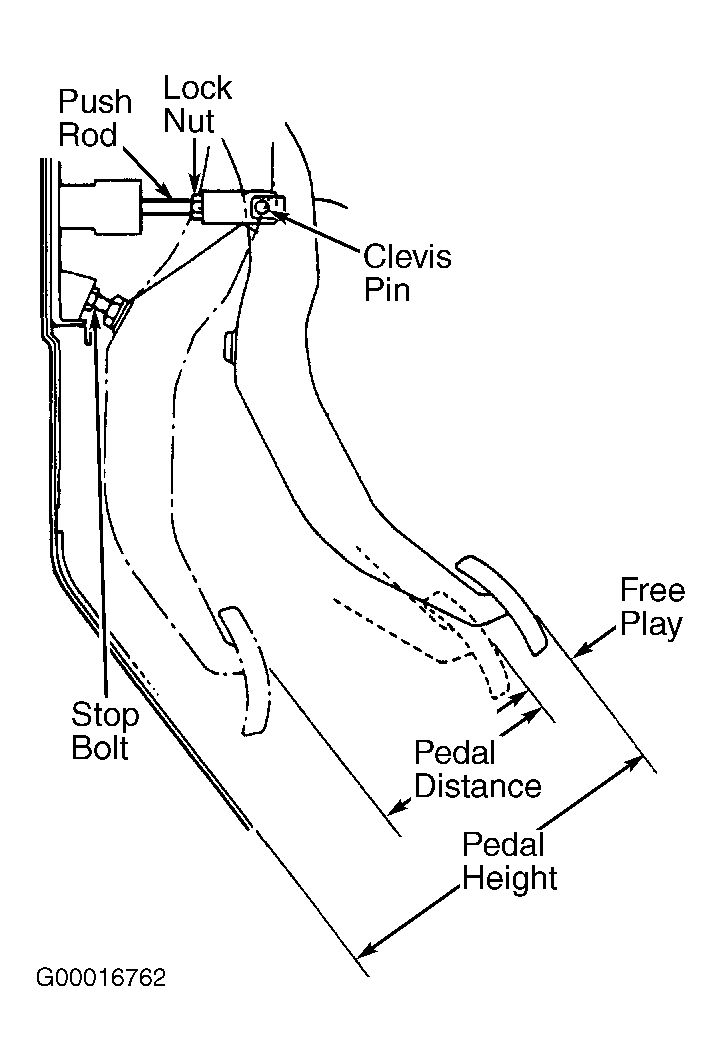

Measure distance between floor (with carpet removed) and top of pedal. See Figure . Pedal height should be 7.26" (184.3 mm). If pedal height is not within specification, loosen push rod lock nut and adjust push rod.
Measure distance between floor (with carpet removed) and top of pedal. See Figure . Pedal height should be 7.26" (184.3 mm). If pedal height is not within specification, loosen push rod lock nut and adjust push rod.
