Shaft Seal: Installation

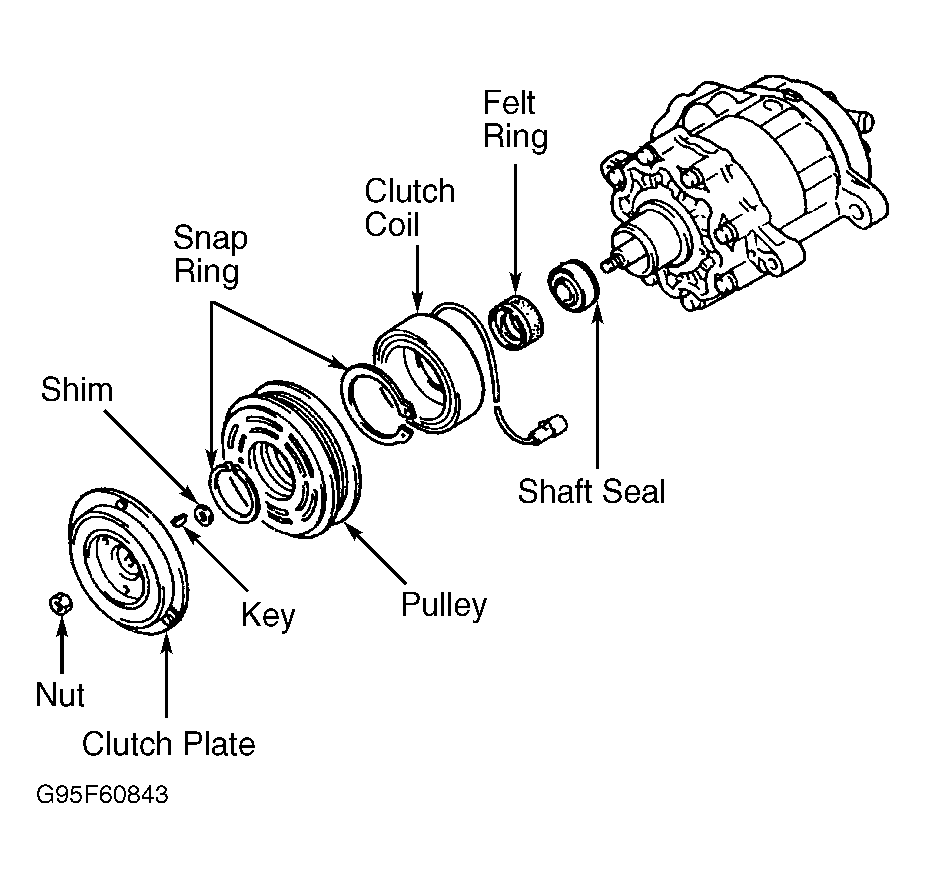

Lubricate shaft seal protector and shaft seal with refrigerant oil. Using seal remover/installer, install shaft seal. Lubricate seal seat "O" ring with refrigerant oil, and install seal seat. To complete installation, reverse removal procedure.
- Using refrigerant oil, lubricate Shaft Seal Protector (09990-58240) and install over compressor shaft. Using refrigerant oil, lubricate shaft seal lips and outer "O" ring. Install shaft seal over protector with "O" ring toward compressor. Ensure lips of shaft seal point toward compressor.
- Using Seal Remover/Installer (09990-48230) and hand pressure, slowly install shaft seal until upper face of seal is lower than snap ring groove. Install snap ring with chamfered side facing compressor. Install shaft key and felt ring. To complete installation, reverse removal procedure.
