Disabling Air Bag System (MR2)

WARNING: The MR2 is equipped with a passenger air bag ON/OFF switch. This switch should NOT be used in place of specified vehicle air bag system disabling and activating procedures.
  1. Obtain radio anti-theft protection code from owner prior to servicing vehicle or deactivate radio anti-theft function before disconnecting vehicle battery.
  2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.
  3. Remove steering column lower cover. See Figure. Disconnect driver air bag module Yellow 2-pin connector. Air bag connector terminals are automatically shorted together. See Figure.

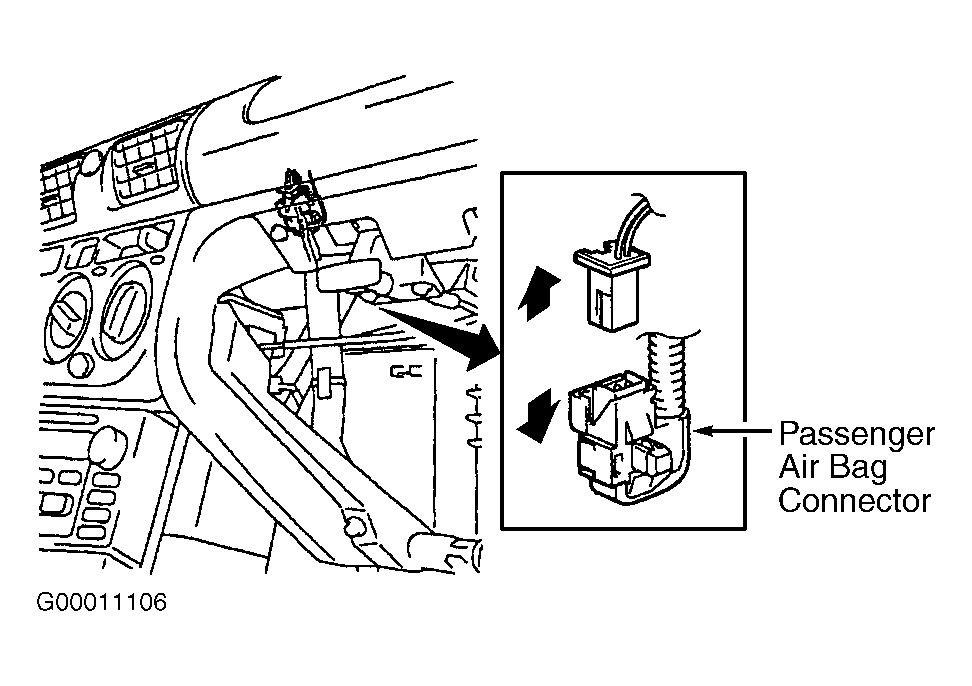

  4. Remove glove box. Unplug passenger air bag module Yellow 2-pin connector, accessible through glove box opening. See Figure. Connector may be attached to a finish plate. Air bag connector terminals are automatically shorted together.

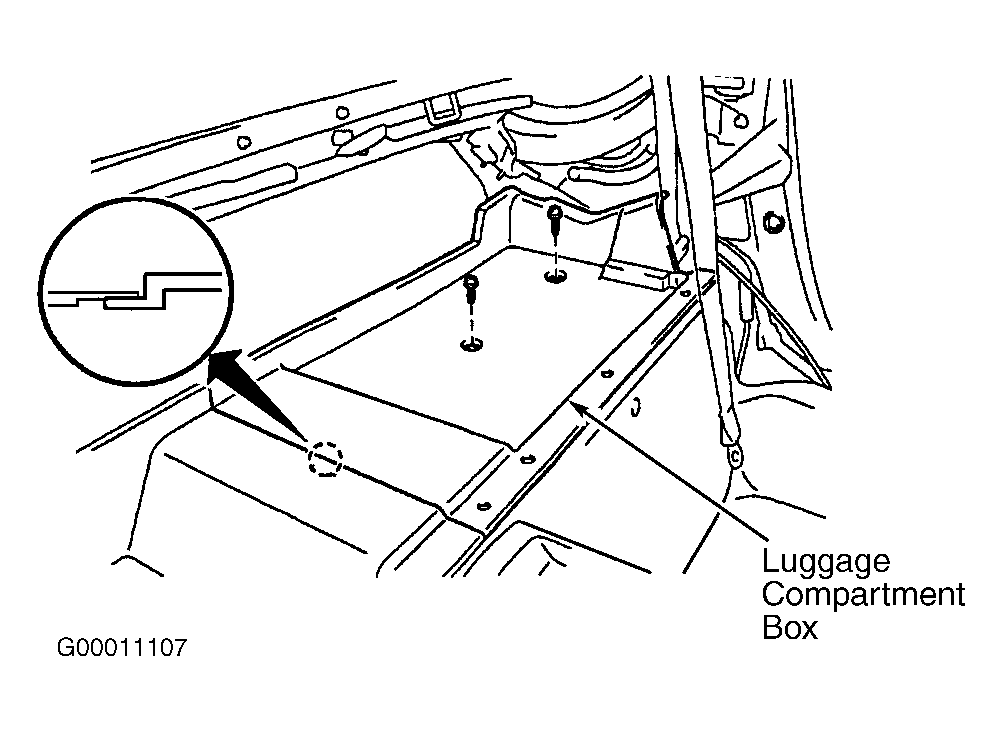

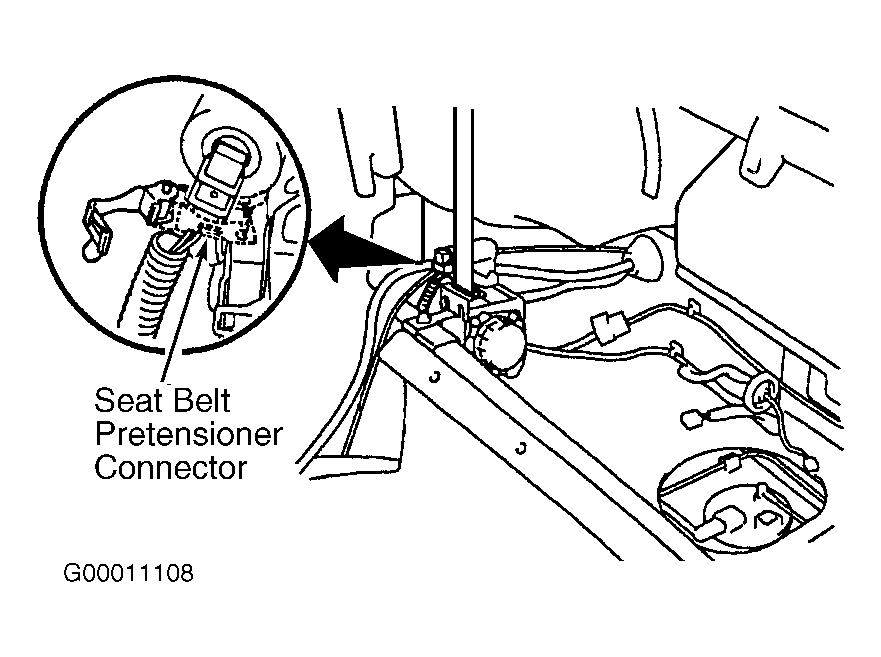

  5. Unplug left and right seat belt pretensioner 2-pin connectors. To access pretensioner connectors, remove door scuff plates. Remove luggage compartment lid, rear quarter trim panel, and luggage compartment box. See Figure and Figure .
