Engine Lubrication System: Notes

A force-feed type lubrication system is used. The oil pump is a trochoid-type pump mounted on forward portion of crankshaft. See Fig 1.

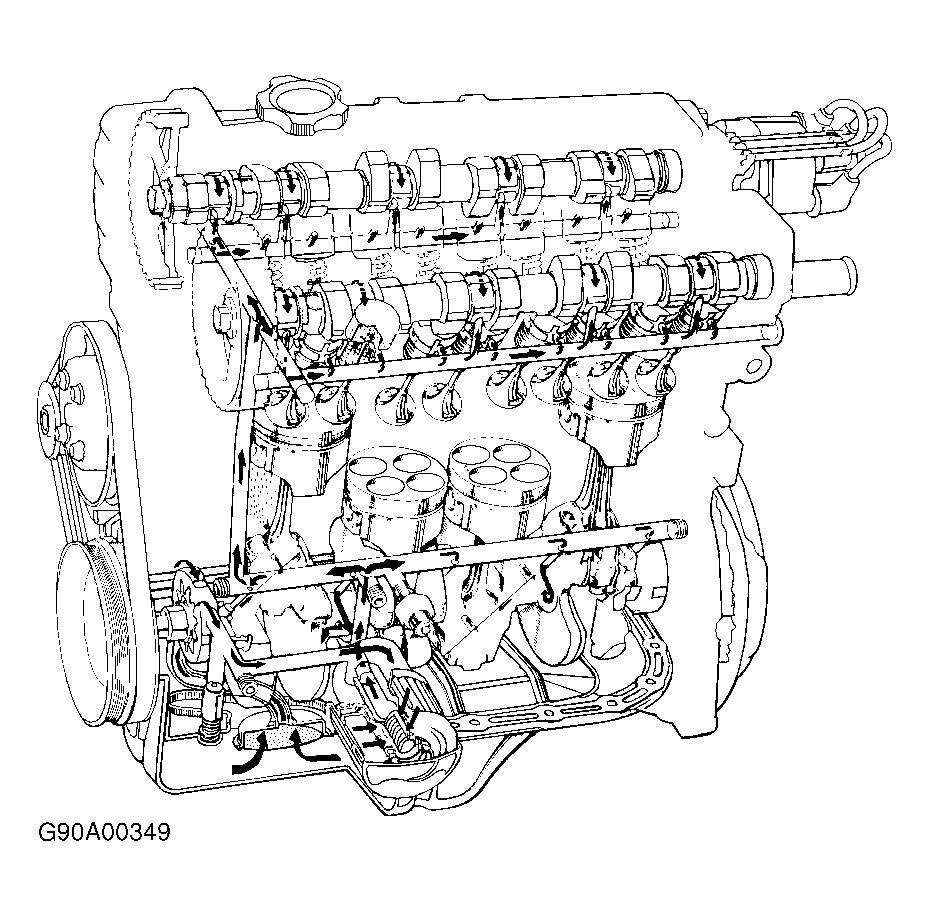

Fig 1: Cross-Sectional View Of Engine Oil Circuit (Typical)
G90A00349Courtesy of SUZUKI OF AMERICA CORP.
