Throttle Valve Cable: Swift

Ensure accelerator cable is adjusted correctly. Accelerator cable should not have any end play at throttle body with accelerator at idle position and engine off.
Warm engine to normal operating temperature. Ensure throttle is fully closed. Remove fluid pressure cable cover. Check boot-to-inner cable stopper clearance. See Fig 2 .
If clearance is greater than .02" (.5 mm), loosen upper lock nuts and adjust fluid pressure cable length. If necessary, use lower lock nuts to change cable length. See Fig 2 . Tighten all lock nuts.

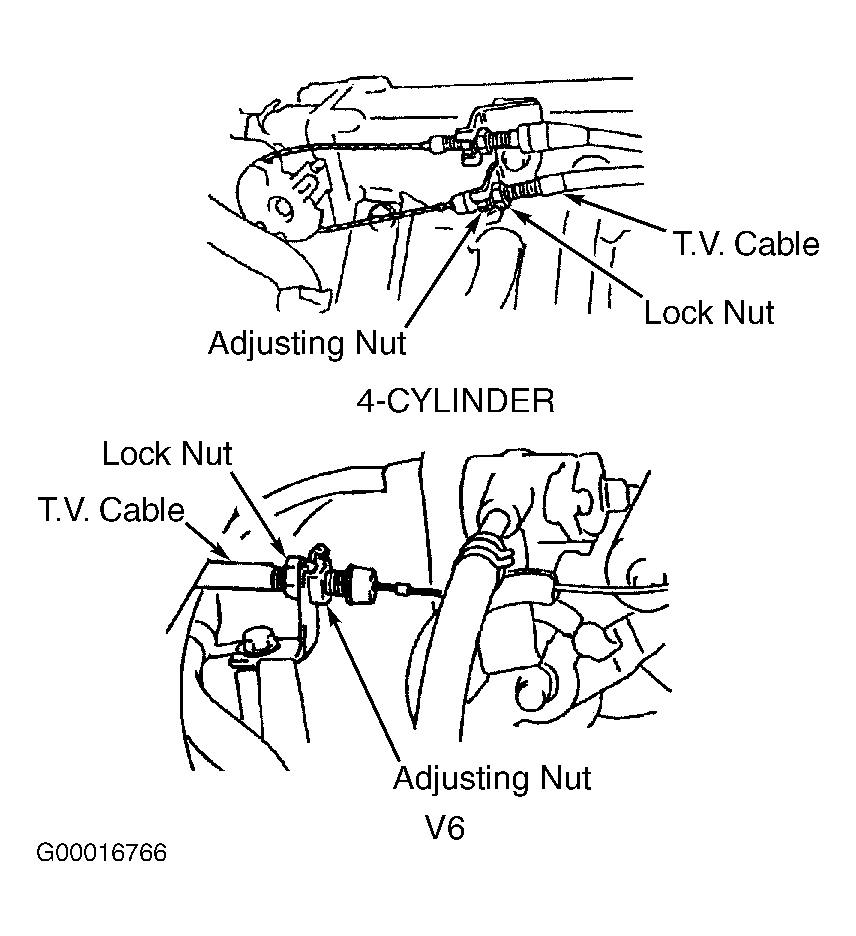

Fig 1: Adjusting T.V. Cable/Fluid Pressure Control Cable (Grand Vitara & Vitara)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Adjusting T.V. Cable/Fluid Pressure Control Cable (Swift)

Courtesy of SUZUKI OF AMERICA CORP.
