Oil Pump: Reassembly

  1. Install pump body oil seal. Apply grease to oil seal lip. Coat driven and drive gears with ATF. Install gears to pump body. Install pump cover to pump body. Tighten 11 pump cover bolts to 72-102 INCH lbs. (8.1-11.5 N.m).
  2. Apply ATF to oil pump bushings and 2 seal rings. Install 2 oil pump cover seal rings. Apply grease to oil pump cover seal ("O" ring) and install. Check drive gear for smooth rotation.

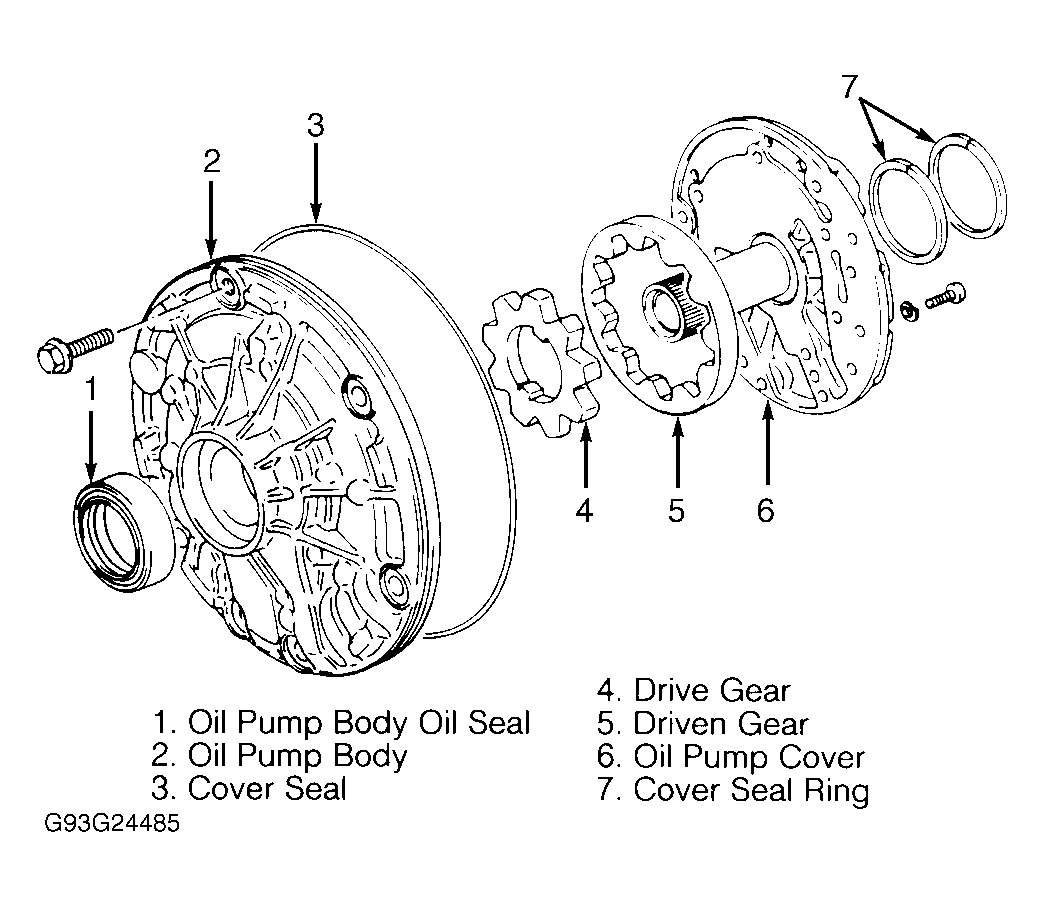

Fig 1: Exploded View Of Oil Pump
G93G24485Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Checking Oil Pump Driven Gear Clearance
G93H24486Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Checking Oil Pump Tip Clearance
G93I24487Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Checking Oil Pump Gear Side Clearance
G93J24488Courtesy of SUZUKI OF AMERICA CORP.
