Connector Locations

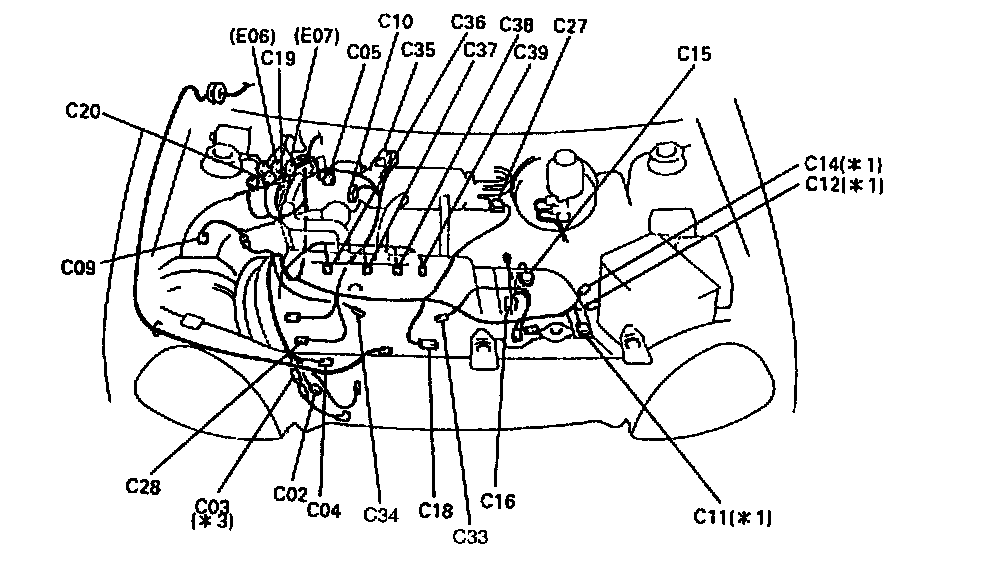

Engine Harness (Connectors "C"):

Main Harness (Connectors "E"):

Engine And Main Harness (Connectors "C" And "E"):

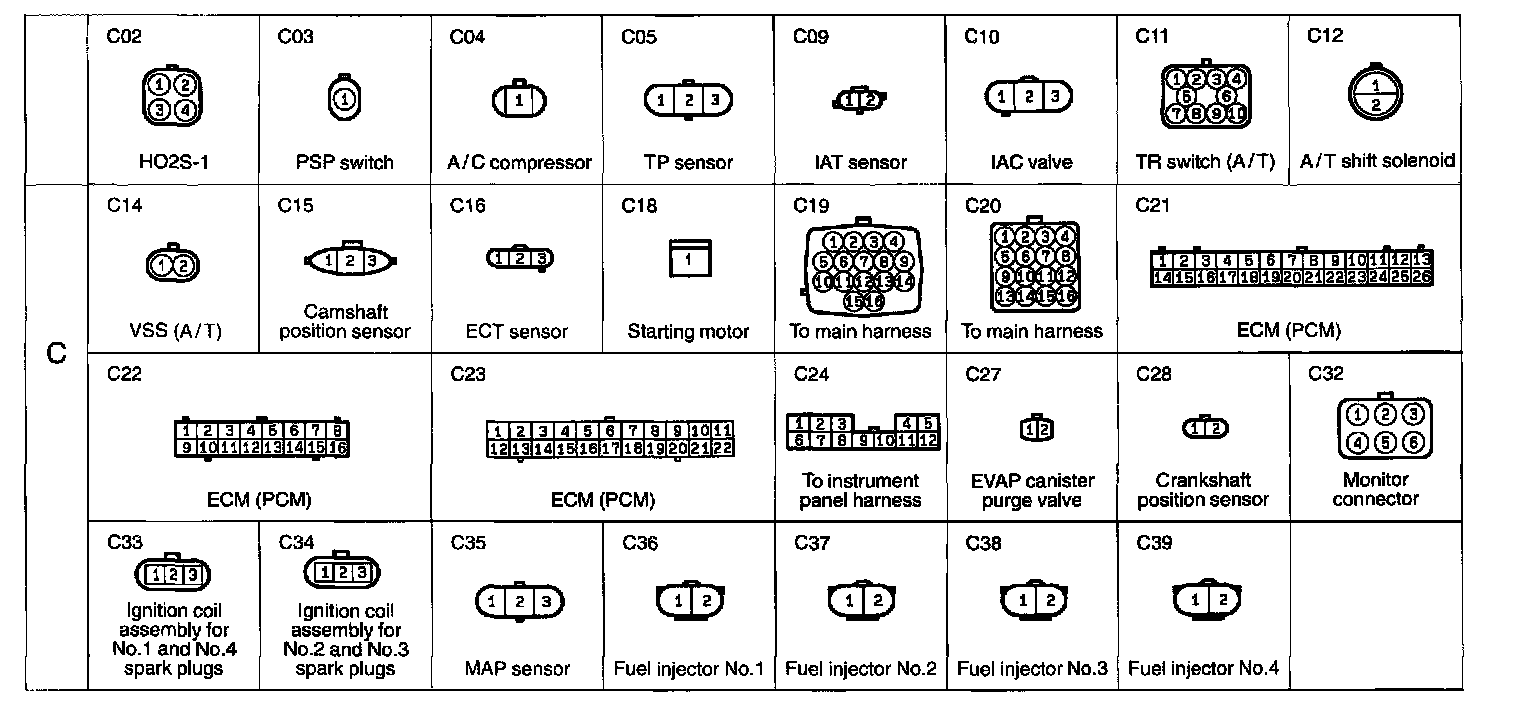

Engine Harness Connectors "C":

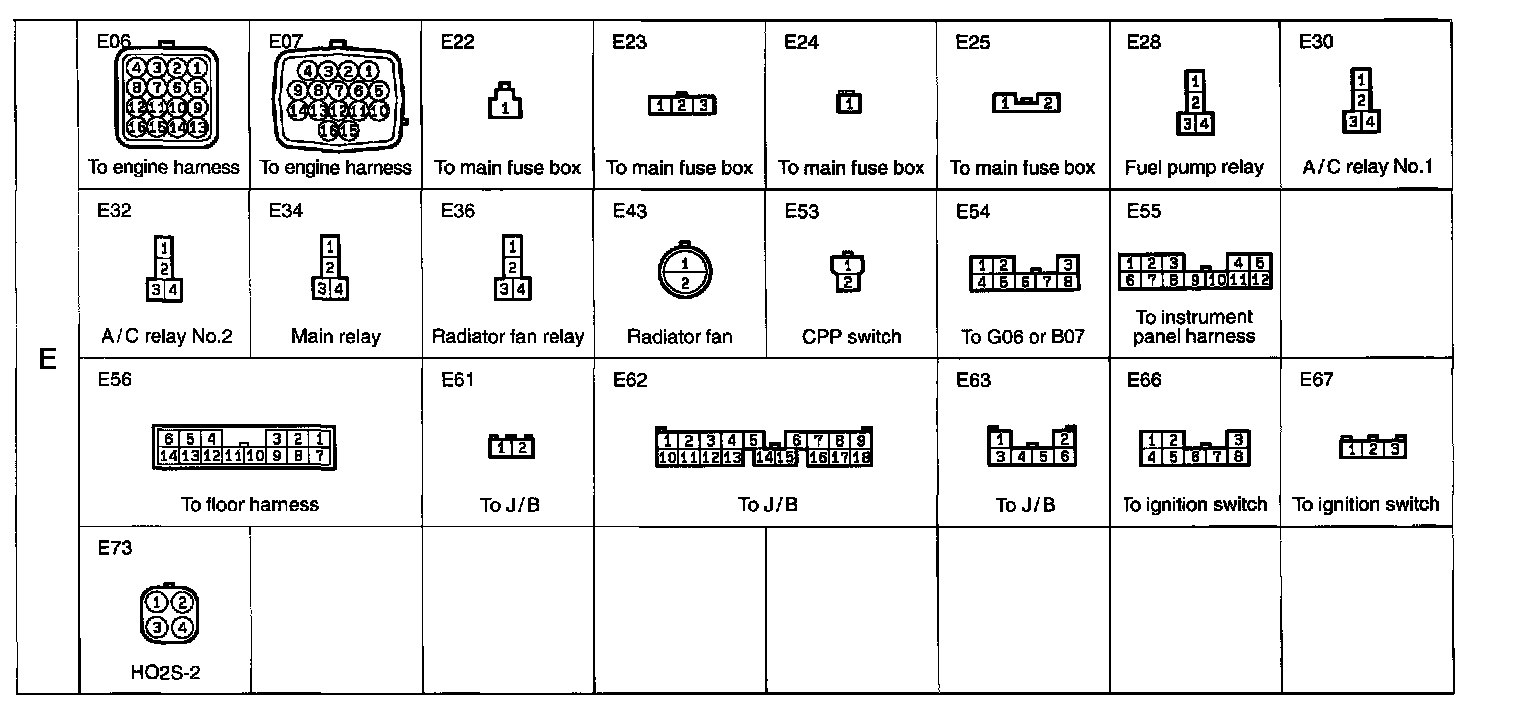

Main Harness Connectors "E":

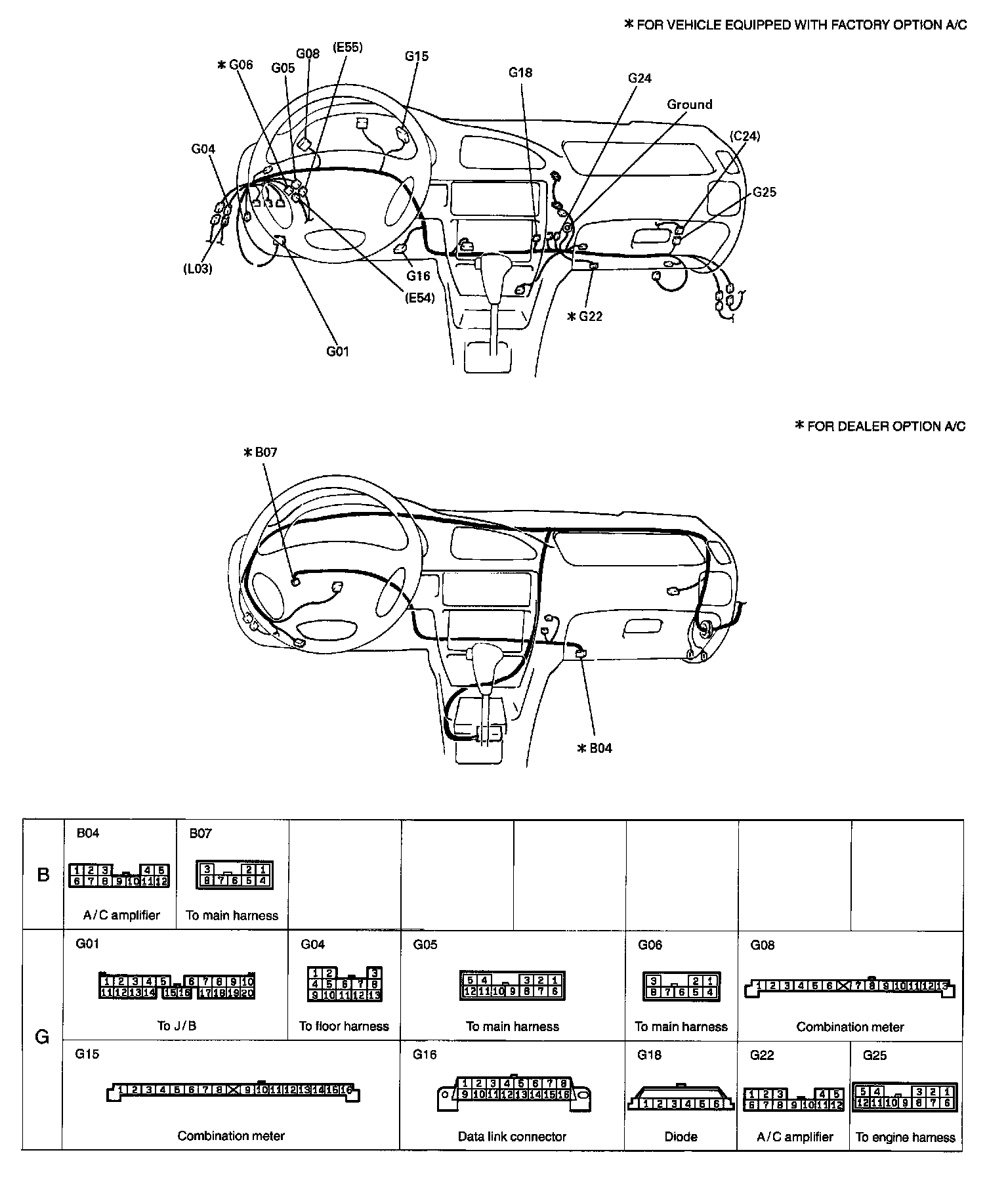

Instrument Panel Harness And Connectors "G" And "B":

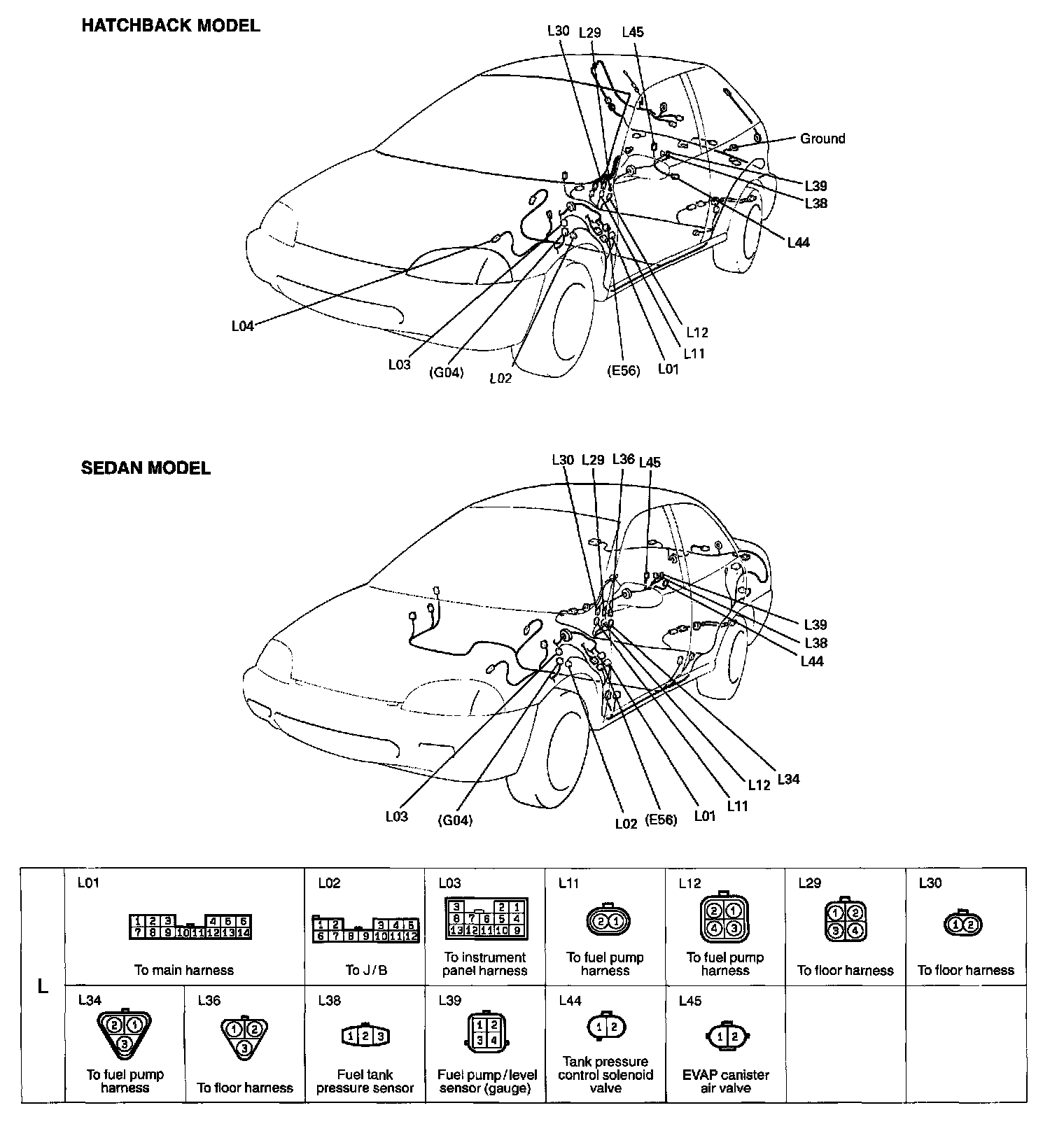

Floor/Fuel Pump Harness And Connectors "L":

WIRE HARNESS AND CONNECTORS
Terminal assignment on each connector indicates viewed from terminal side.
