Front Seat

Front Seat Removal and Installation

Removal
1. Remove five seat rail mounting bolts. Then, remove seat assembly with seat rail.
2. Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install front seat.
Torque them to specifications, as given below.

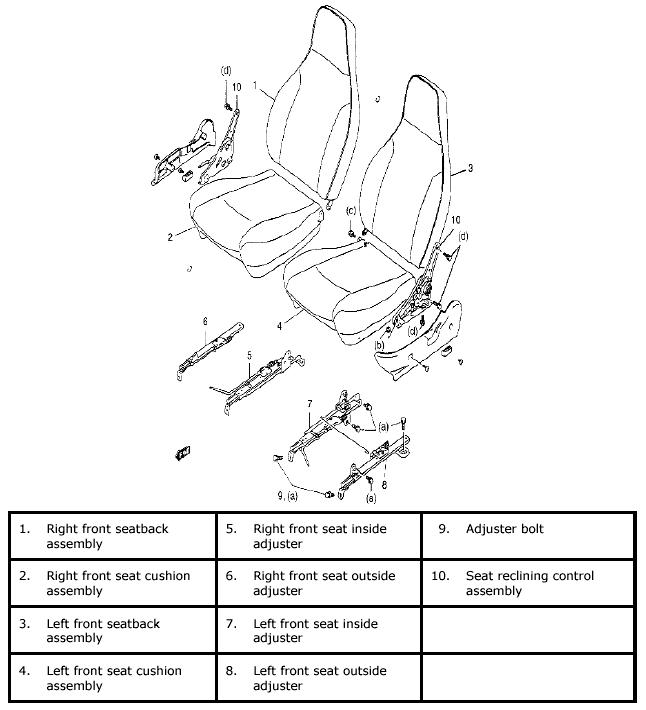

Tightening torque
Seat adjuster bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
Seat reclining control assembly mounting nut (b): 15 N.m (1.5 kg-m, 11.0 lbf-ft)
Seat back to seat cushion bolt (c): 6 N.m (0.6 kg-m, 4.5 lbf-ft)
Seat reclining control assembly mounting bolt (d): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
