Quarter Window Glass: Service and Repair

Quarter Window Removal And Installation

Refer to Head Lining Removal and Installation, Windshield Removal and Installation procedures and cautions are basically the same. However, note the following.

NOTE:

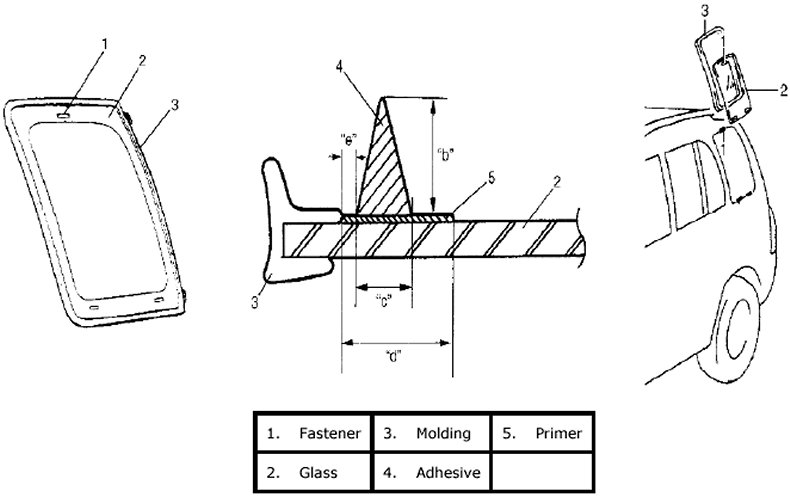

- Before applying primer to glass edge, install molding according to installing position shown in the figure.
- Observe the following precautions when applying adhesive along glass edge.
- Adhesive should be applied evenly especially in height.
- Be careful not to damage primer.
- Press glass against body quickly after adhesive is applied.

Adhesive amount specification (quarter window)
Height "b": 12 mm (0.47 in.)
Width "c": 8 mm (0.31 in.)
Width "d": 16 mm (0.63 in.)
Clearance "e": 1 mm (0.04 in.)
