Table A-1

DIAGNOSTIC FLOW TABLE A-1 (NO TCC LOCK-UP OCCURS)
SYSTEM DESCRIPTION
PCM turns TCC solenoid OFF under any of the following conditions.
- Brake pedal switch: ON
- 4WD LOW switch: ON
- Cruise control module: TCC OFF command signal is output.
- ECT: ECT < 30° C (86° F)

TROUBLESHOOTING

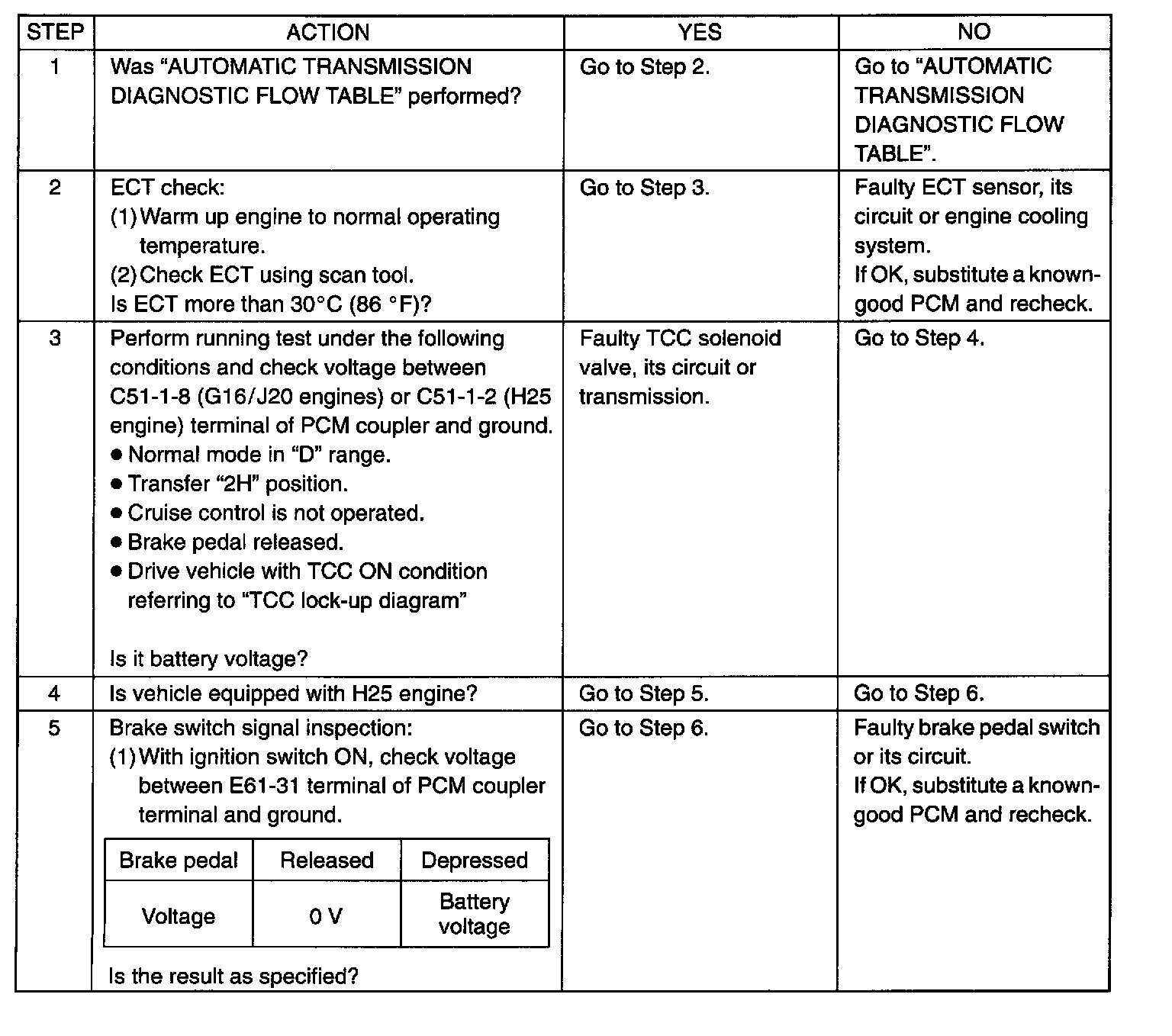

Step 1 - 5

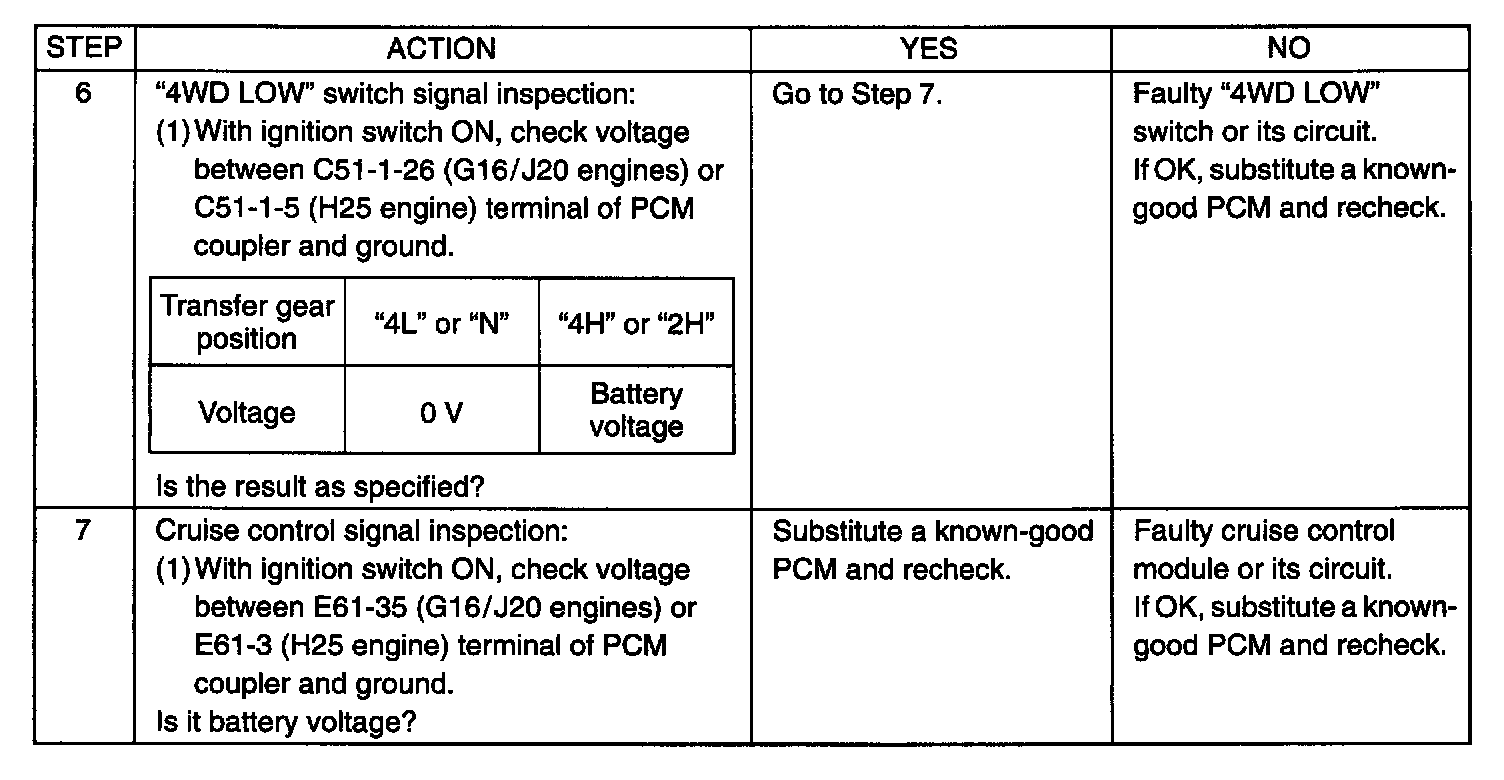

Step 6 - 7

WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during to avoid occurrence of an accident.
- Road test should be carried out with 2 person, a driver and tester, on a level road.
