Headlamp Switch: Testing and Inspection

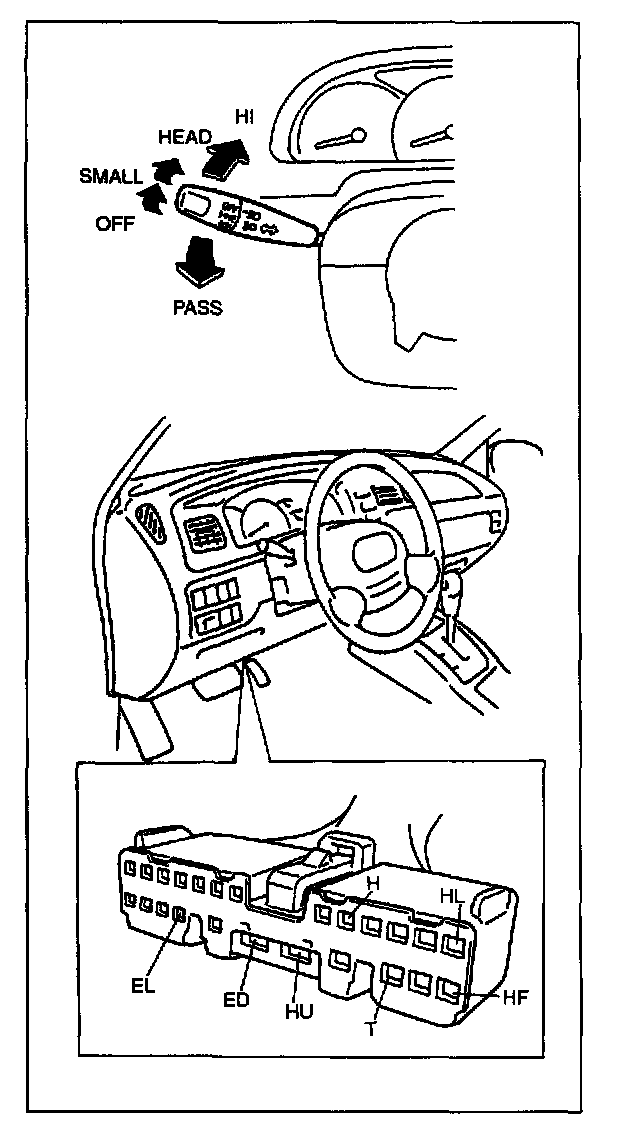

HEADLIGHT SWITCH (IN COMBINATION SWITCH) INSPECTION
1. Disconnect negative (-) cable at battery.
2. Disconnect combination switch lead wire couplers.

Lighting Switch:

Dimmer & Passing Switch:

3. Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.
