Ignition System

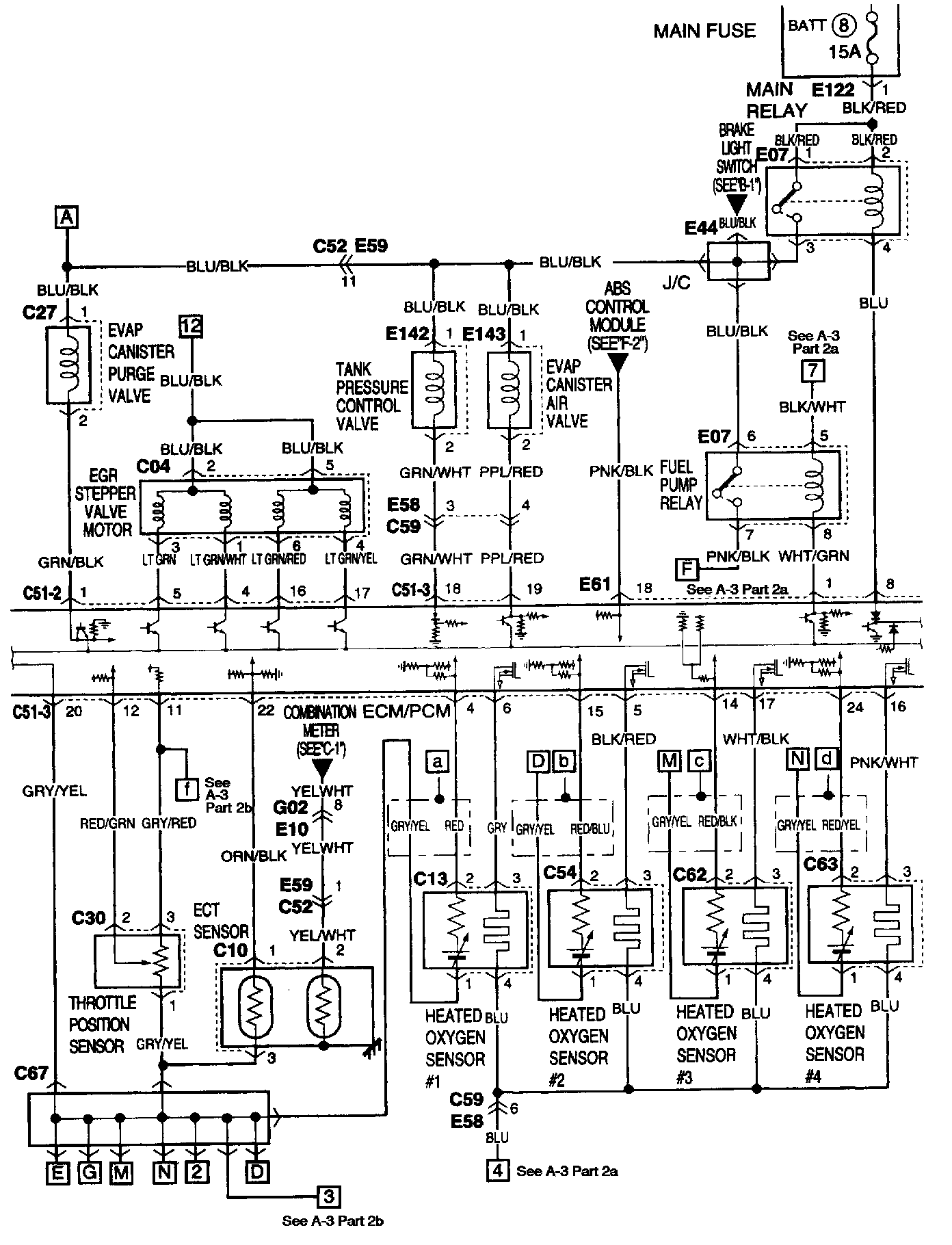

A-3 Part 1a - Ignition, Engine, Emission Control System:

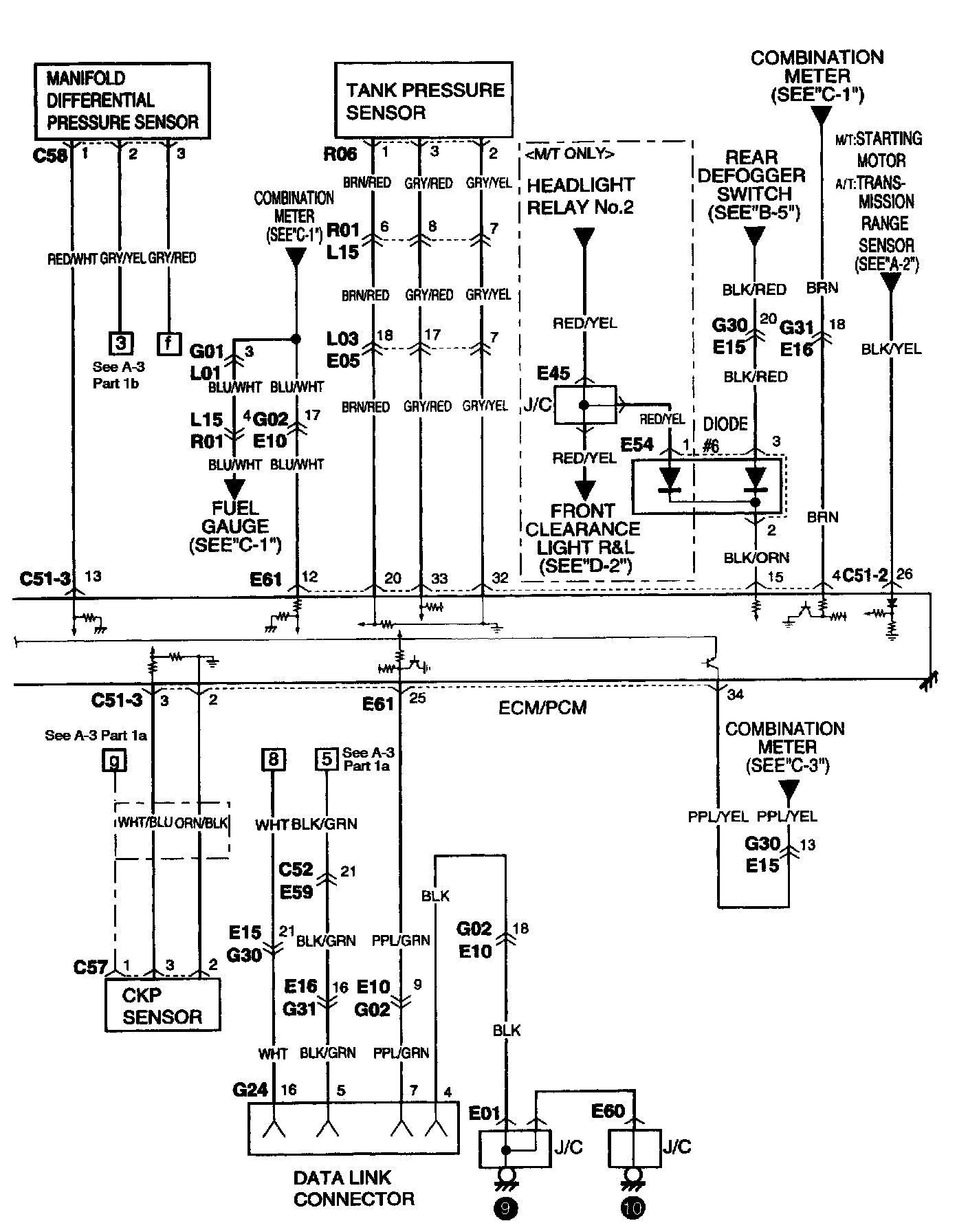

A-3 Part 1b - Ignition, Engine, Emission Control System:

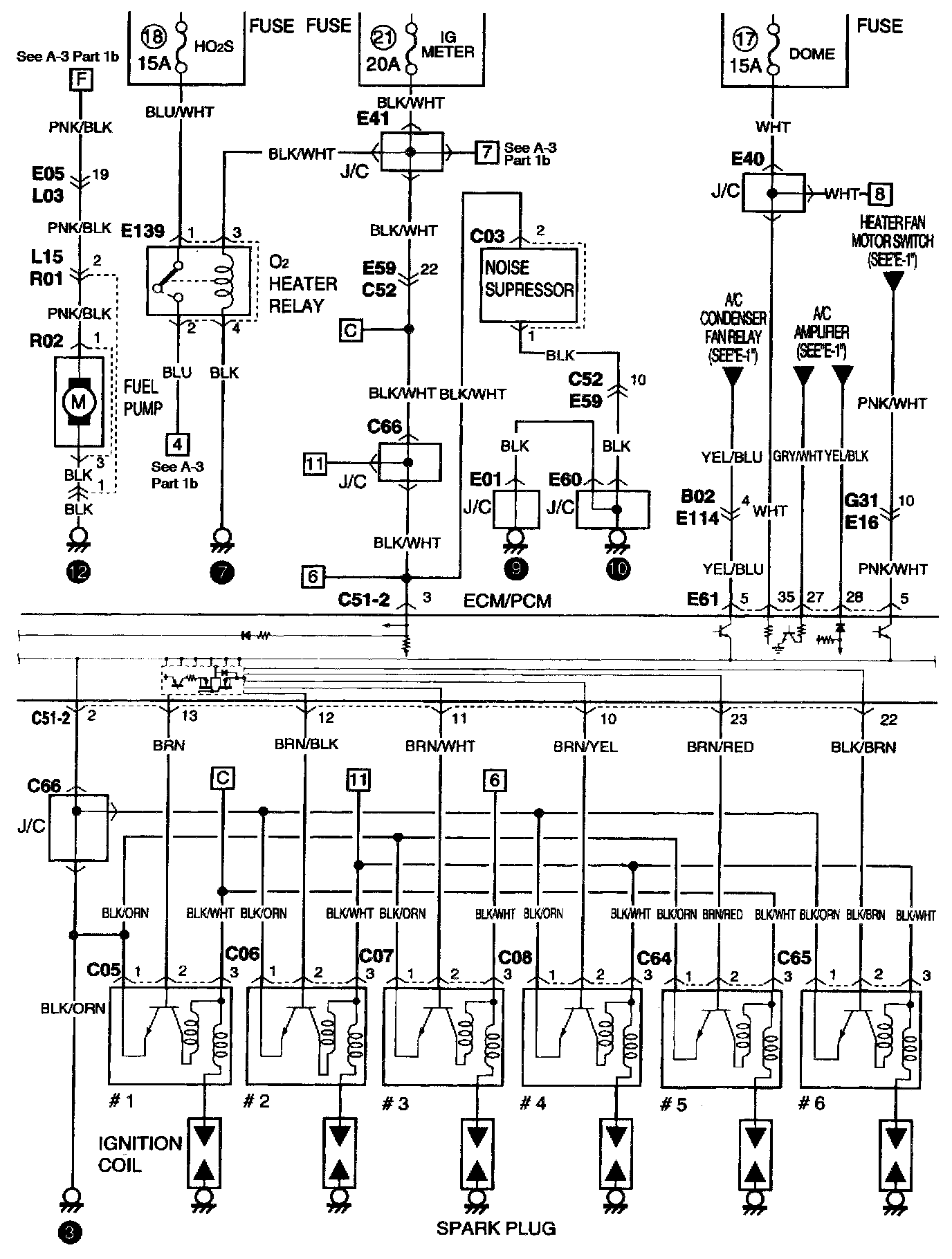

A-3 Part 2a - Ignition, Engine, Emission Control System:

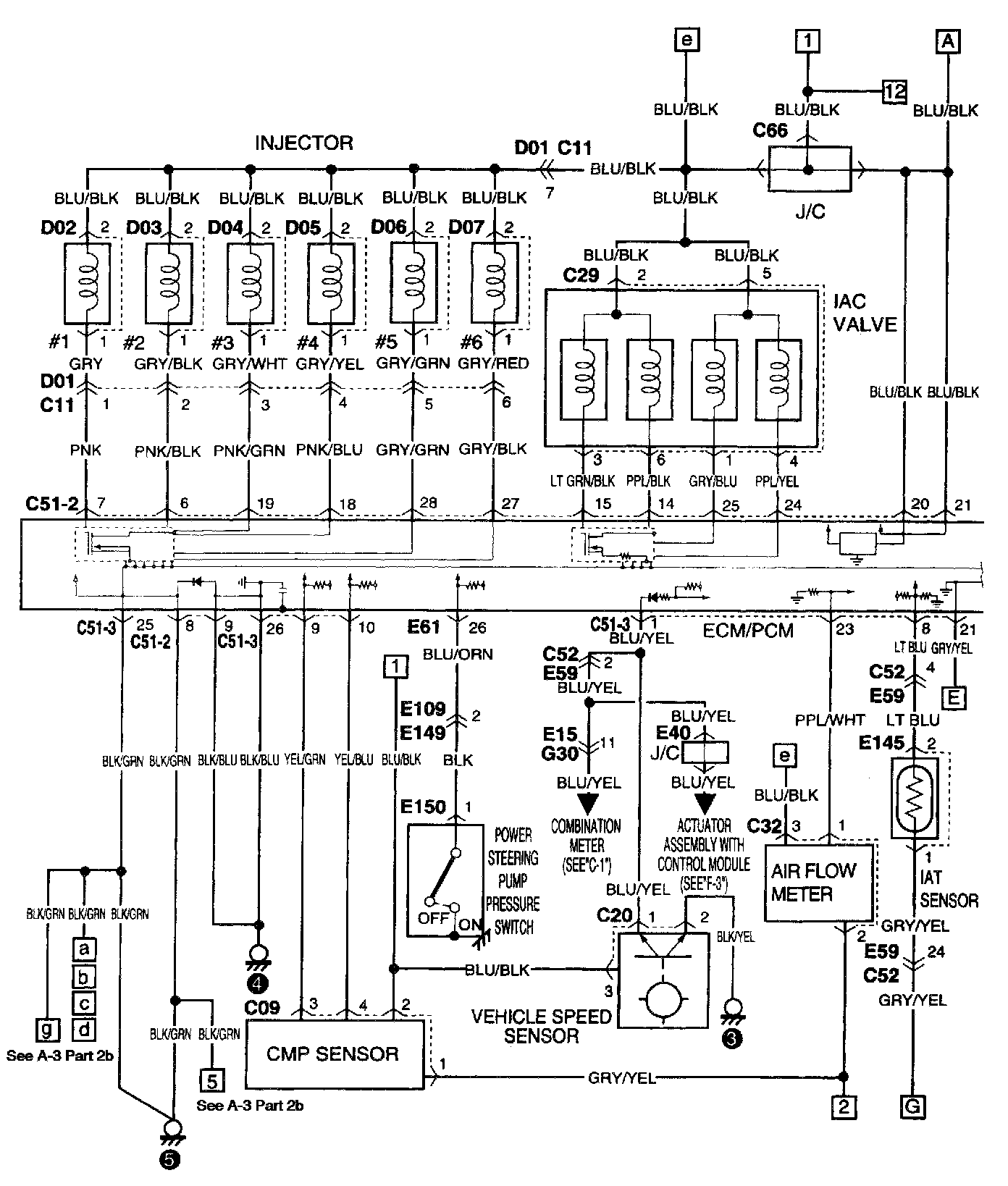

A-3 Part 2b - Ignition, Engine, Emission Control System:






NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
