P1500

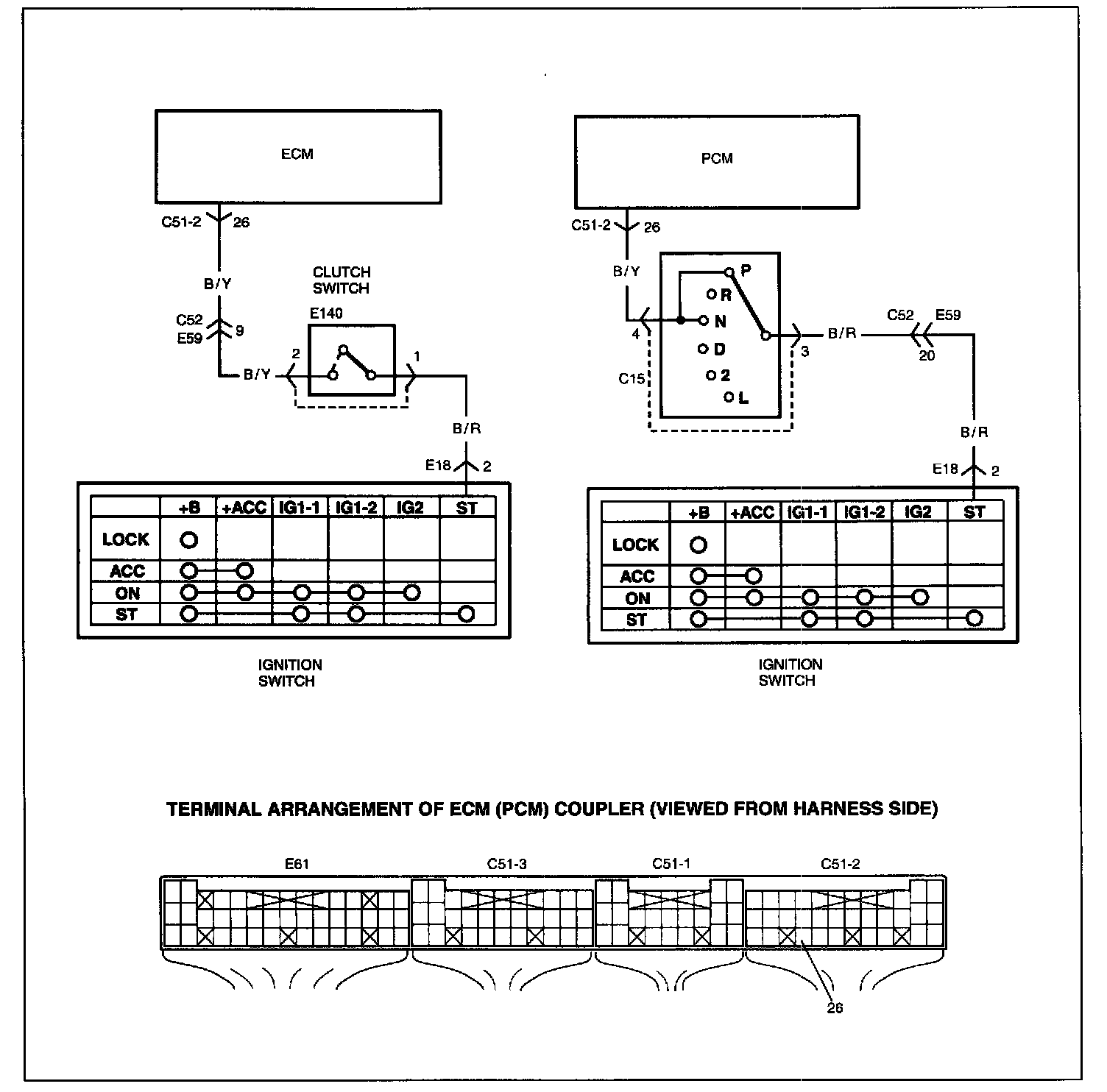

Wiring Diagram:

CIRCUIT DESCRIPTION
Engine start signal is sent from engine starter circuit while engine cranking.

Detecting Condition/Trouble Area:

DTC CONFIRMATION PROCEDURE

NOTE:
Check to make sure that the following conditions are satisfied when using this DTC CONFIRMATION PROCEDURE.
- Intake air temperature: between -14 °C and 70 °C (6.8 °F and 158 °F)
- Atmospheric pressure: higher than 560 mmHg (Altitude: lower than 2790 m (9150 ft))

1. With ignition switch OFF connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 5 min.
4. Check DTC and pending DTC by using scan tool.

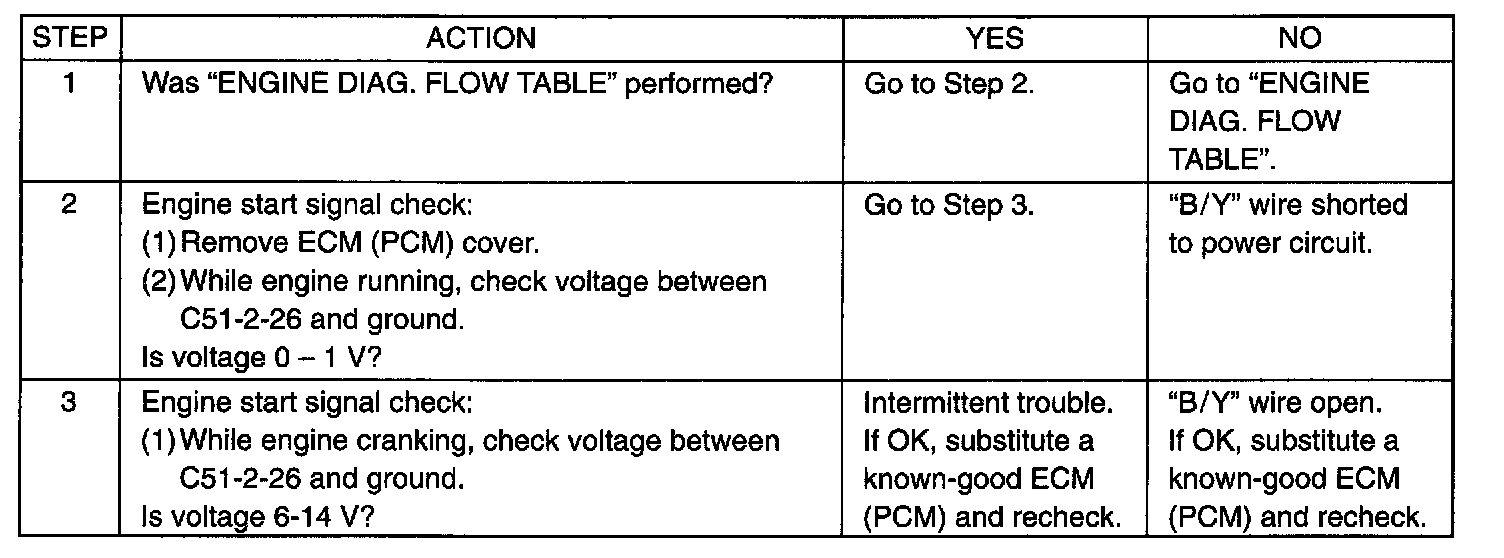

Troubleshooting ( Steps 1 - 3 ):
