P0461

System/Wiring Diagram:






Detecting Condition/Trouble Area:






DTC CONFIRMATION PROCEDURE
Perform "DTC TROUBLESHOOTING TABLE STEP 3".

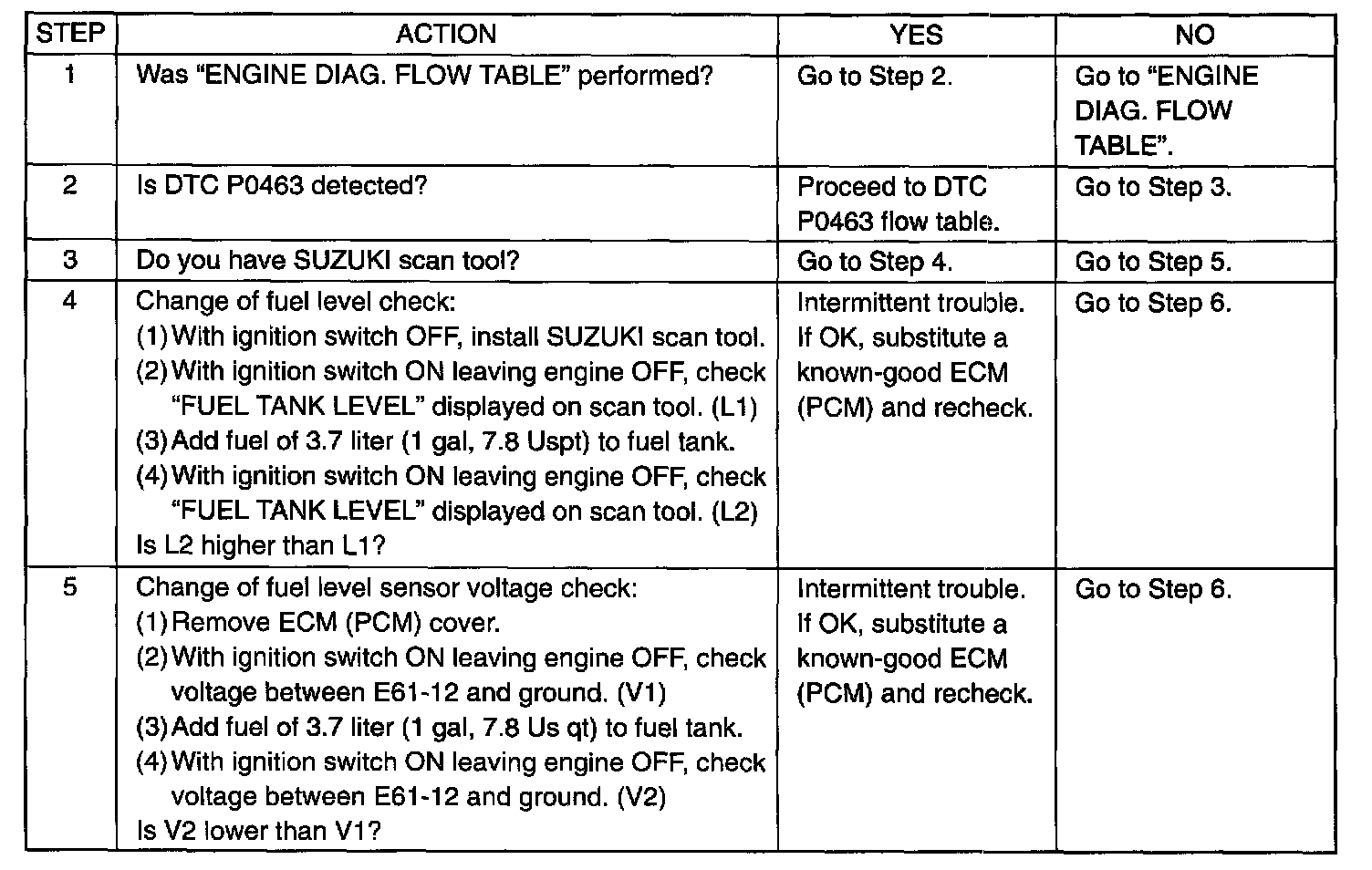

Troubleshooting ( Steps 1 - 5 ):

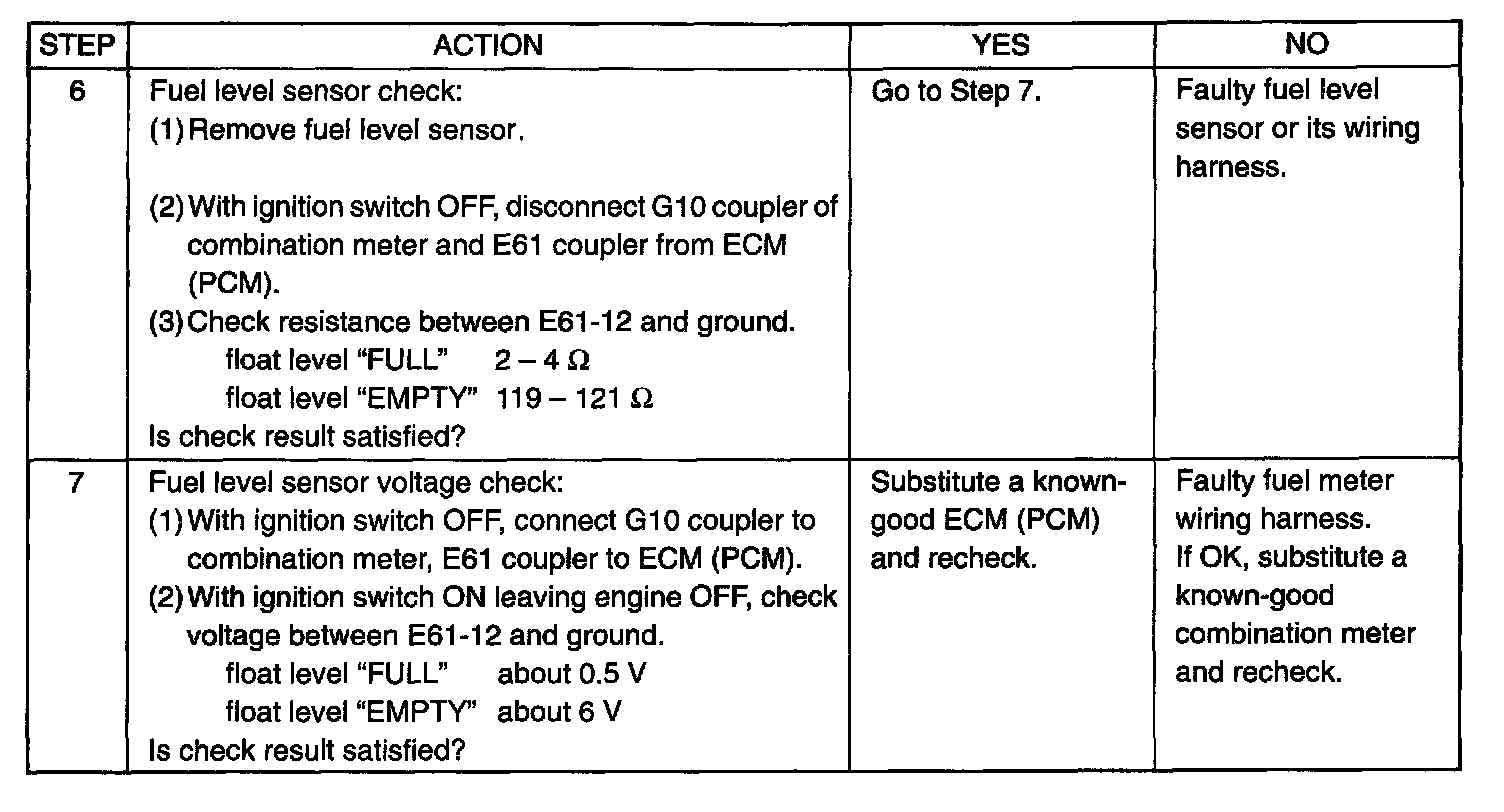

Troubleshooting ( Steps 6 - 7 ):
