Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

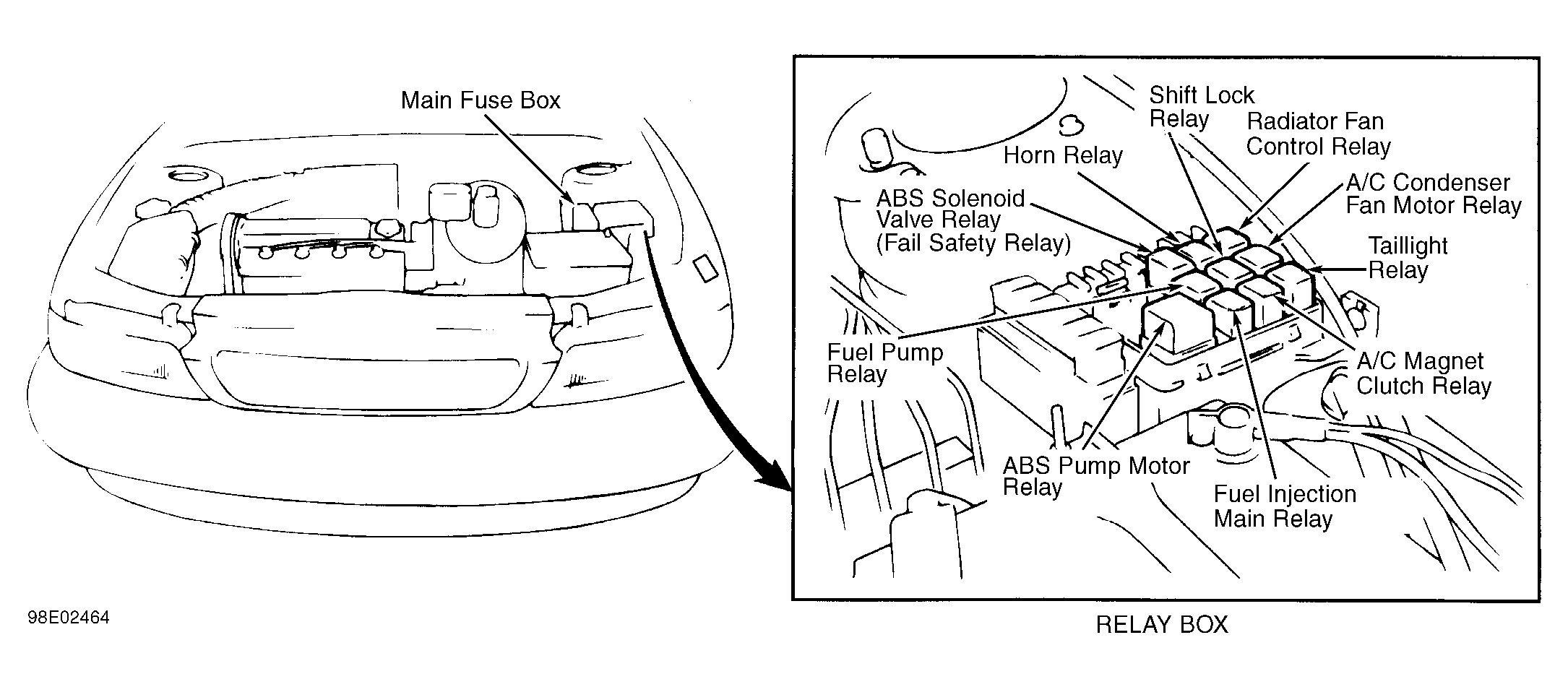

Fig 1: Main Fuse Box

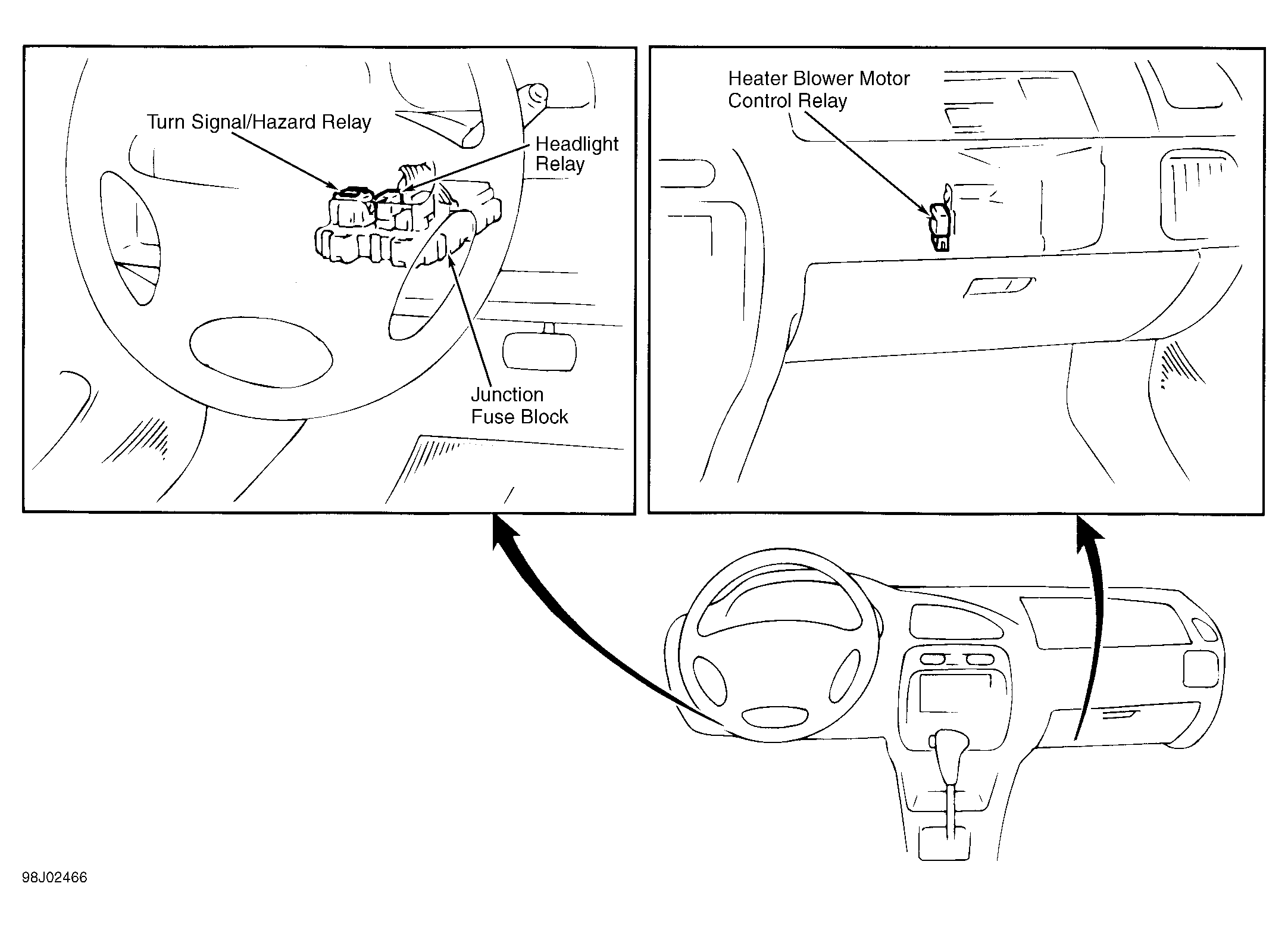

Fig 2: Dash

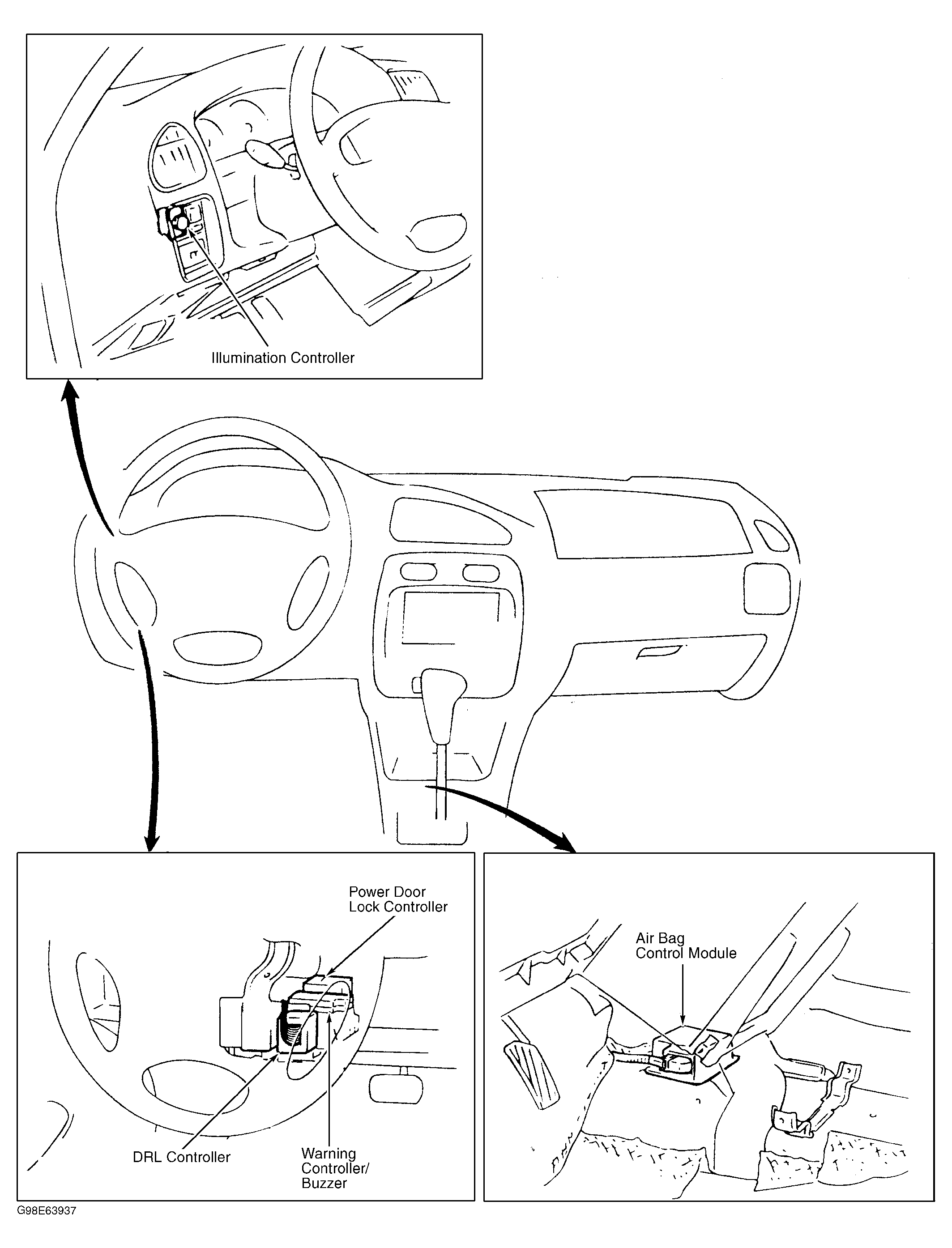

Fig 3: Dash

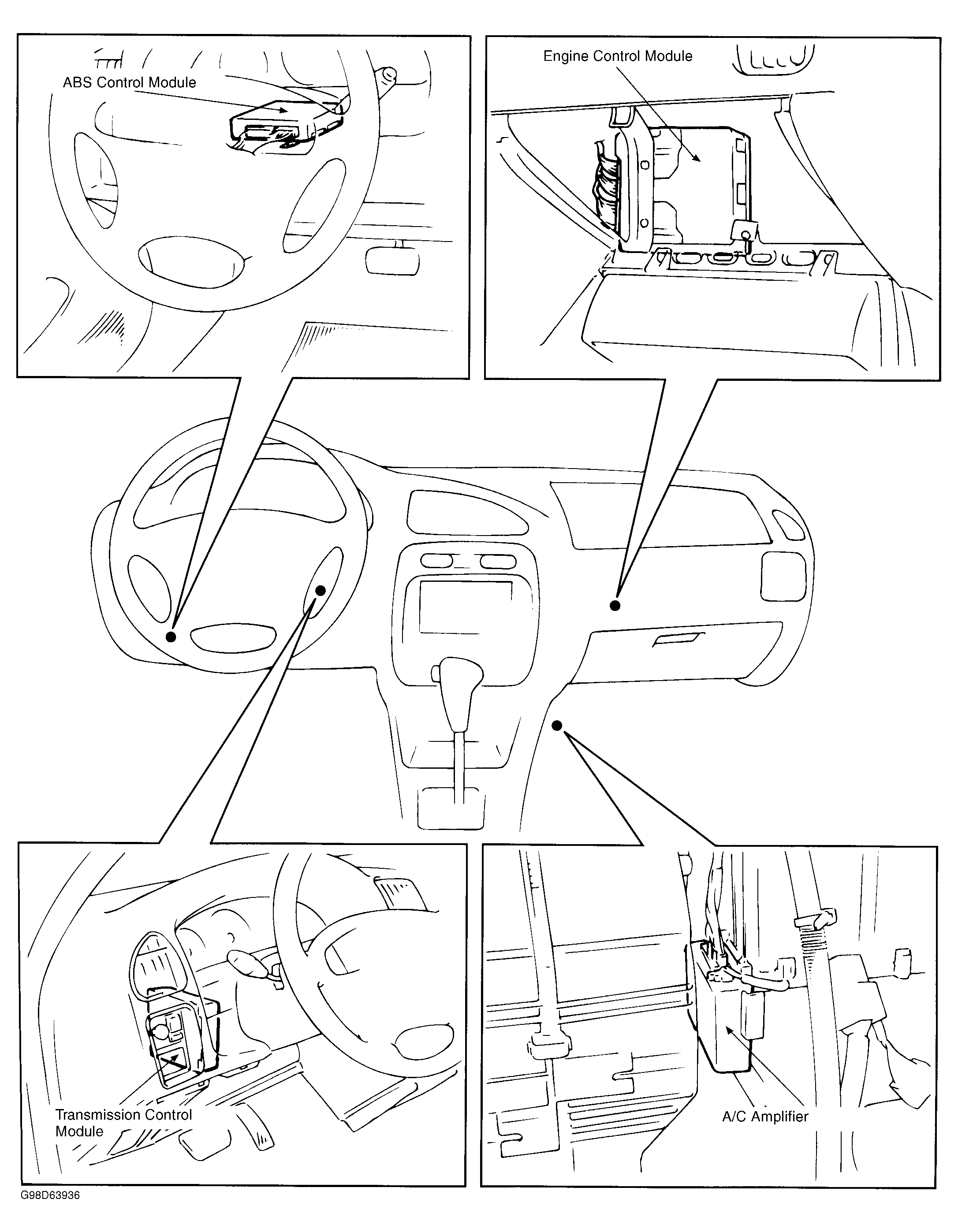

Fig 4: Dash
