Blower Motor Switch

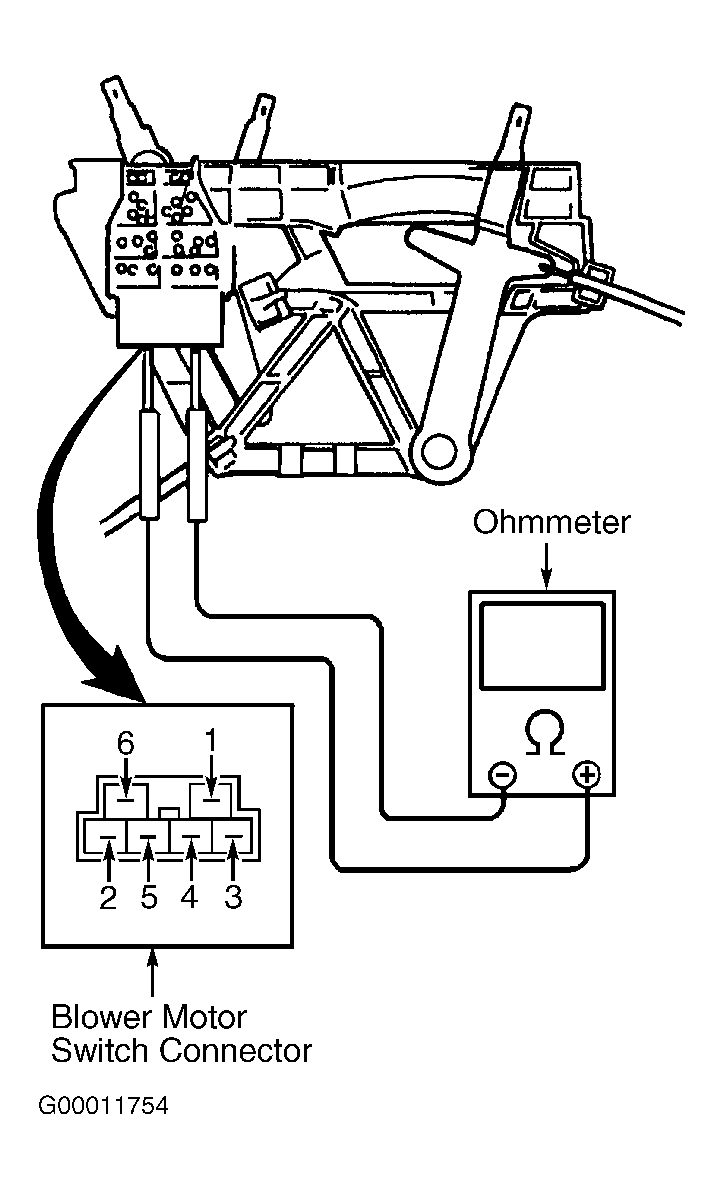

Check continuity between blower motor switch terminals. See Fig 1 . See BLOWER MOTOR SWITCH CONTINUITY TEST table. Replace blower switch if continuity is not as specified.
BLOWER MOTOR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| OFF | No Continuity |
| Low | 1, 2 & 3 |
| Medium-Low | 1, 2 & 4 |
| Medium-High | 1, 2 & 5 |
| High | 1, 2 & 6 |
