Brake Lamp

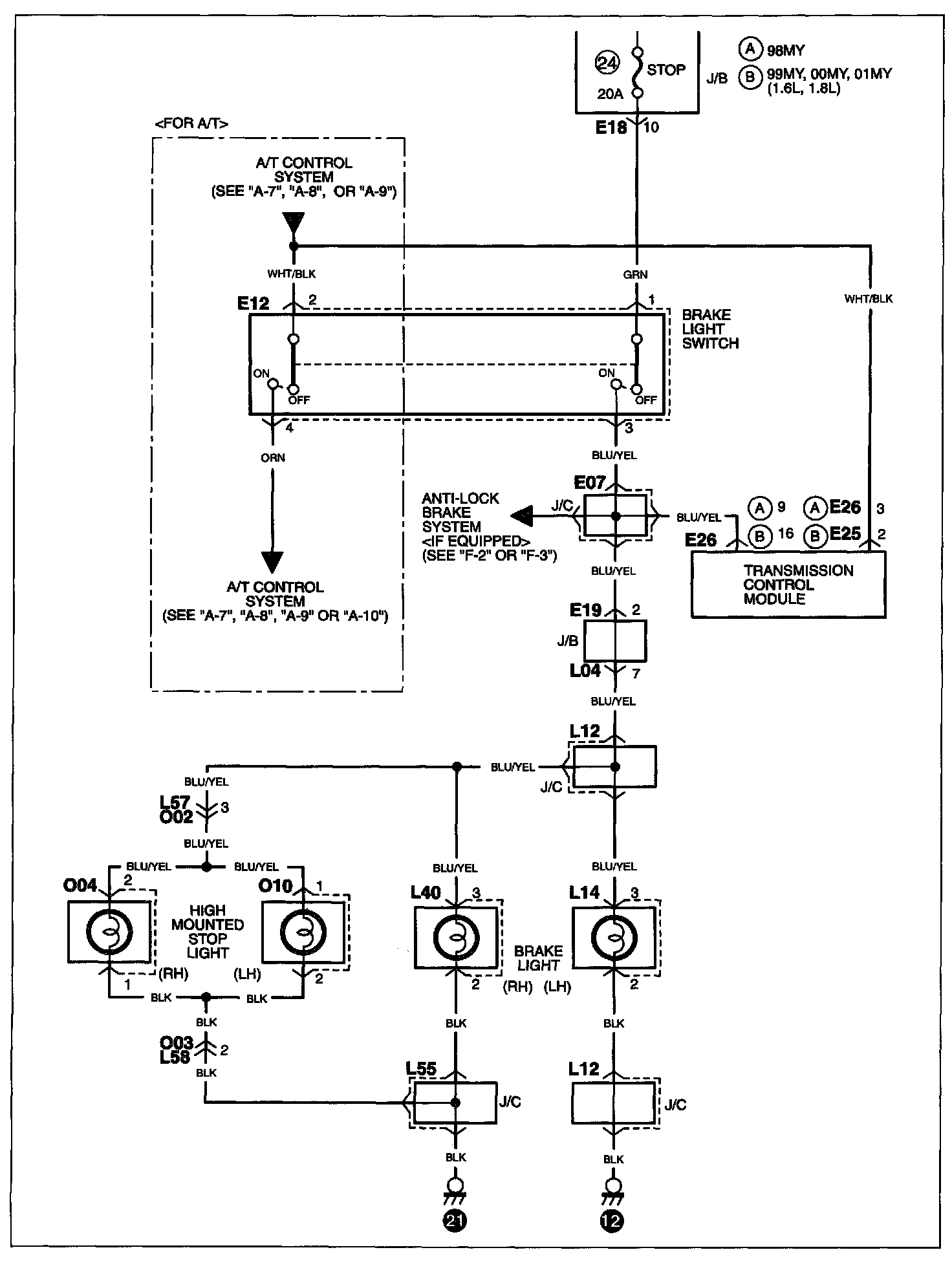

D-8 Brake Light <Vehicle Without Cruise Control> For Wagon:

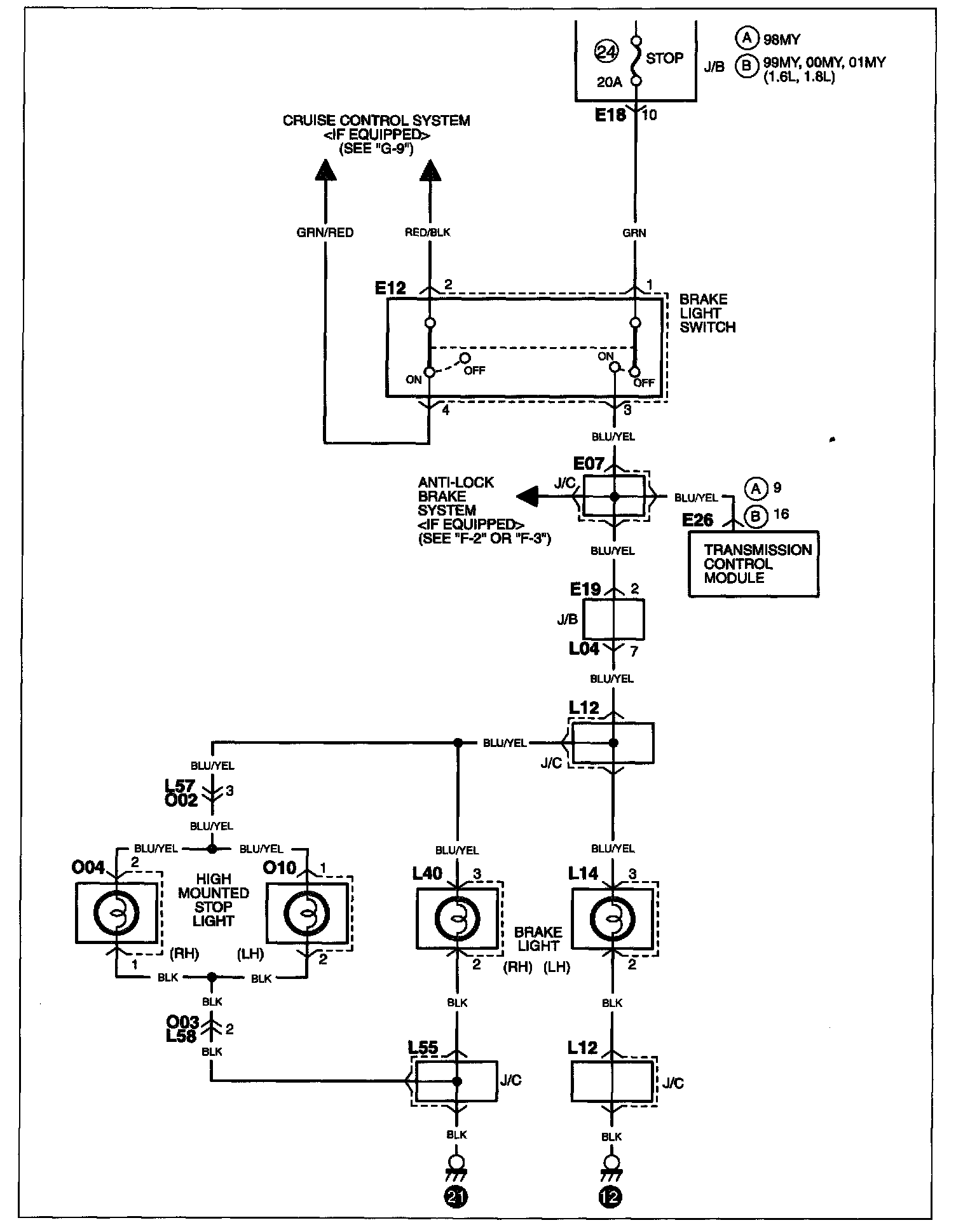

D-10 Brake Light <Vehicle With Cruise Control> For Wagon:






NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
