Trim Panel: Service and Repair

Rear Speaker Cover Removal And Installation







Removal

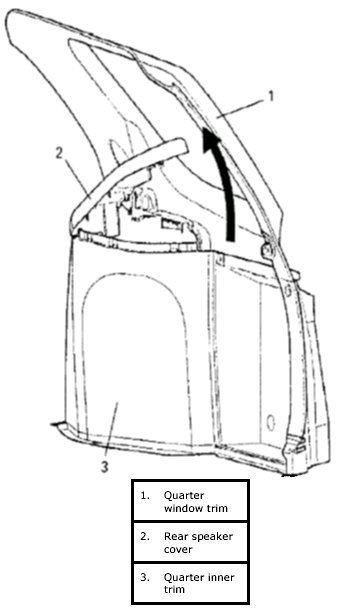

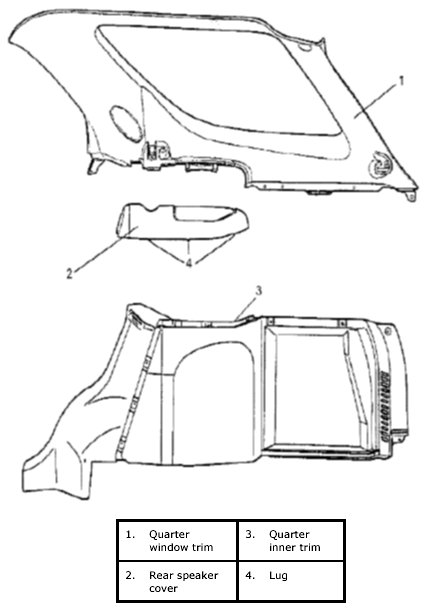

1. Remove rear speaker cover from quarter trim (3) by pushing its catching lugs (2) (at 3 locations) with flat tip screwdriver or the like (1).







2. Lift up rear end of speaker cover and remove it from quarter glass trim.

Installation

For installation, reverse removal procedure.
