Rear Bumper: Service and Repair

Rear Bumper Removal And Installation

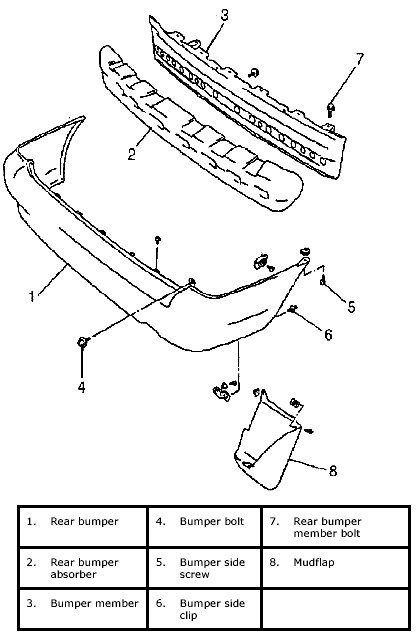

Rear Bumper Components:

Removal

1. Remove mudflap screws (1) and then mudflaps (2) (if equipped).







2. Remove bumper bolts and bumper side screws (1) as shown in the figure.







3. Raise up and hold tire cover under box and spare tire cover with carpet, and remove back panel trim.







4. Remove rear bumper member bolt (2) after removing rear bumper member bolt grommet (1).







5. Remove rear bumper assembly.
6. Remove rear bumper from rear bumper member by removing screws and clips.

Installation

Reverse removal procedure for installation.
