Table B-2 Brake Switch (Stop Lamp Switch) Circuit Check

TABLE B-2 BRAKE SWITCH (STOP LAMP SWITCH) CIRCUIT CHECK





WIRING DIAGRAM

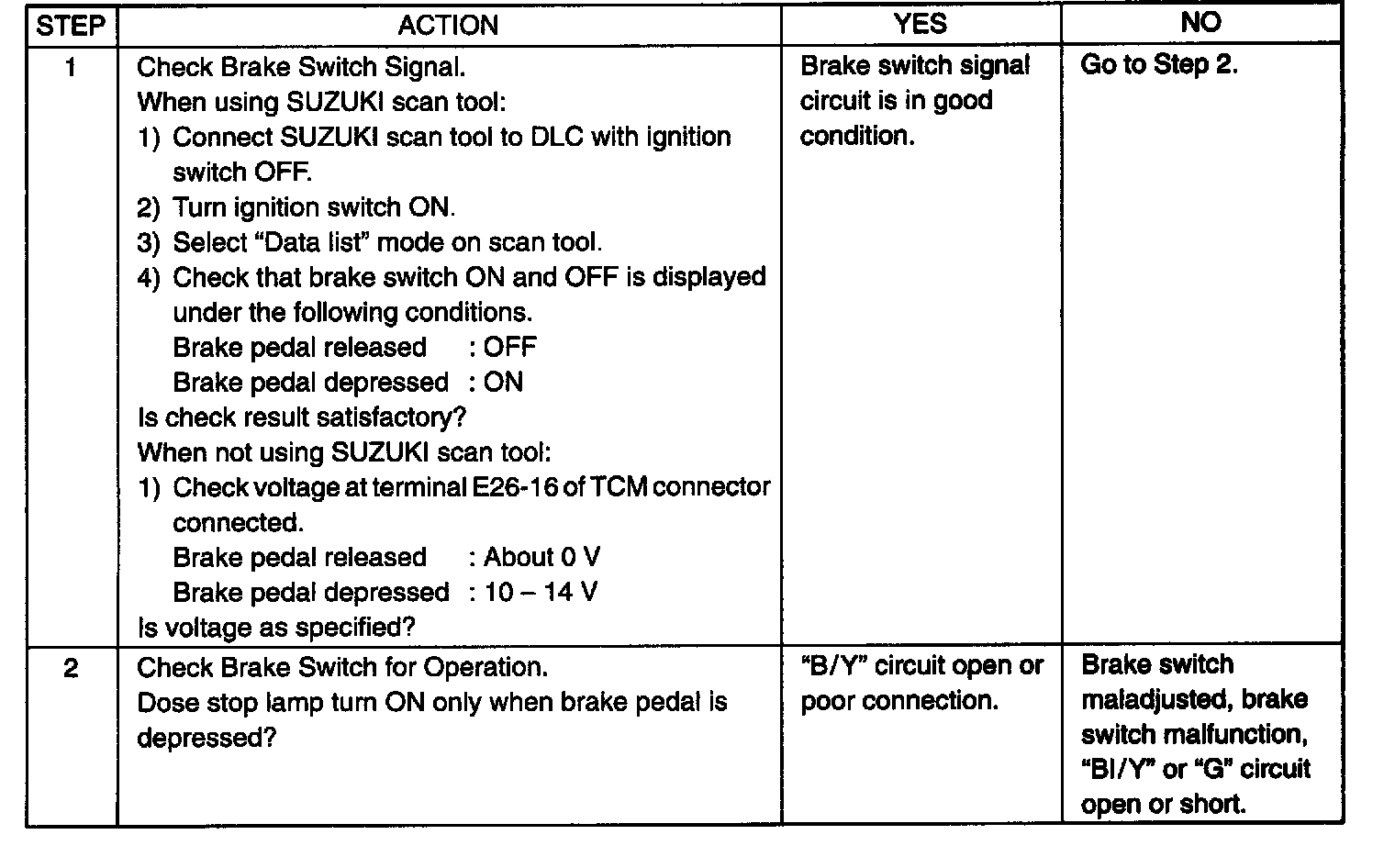

INSPECTION
