Chart F - Air Bag Warning Lamp Cannot Indicate DTC By Flashing

Wiring Diagram

CAUTION:
- When measurements are requested in this table use specified digital multimeter with correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is requested refer to INTERMITTENT AND POOR CONNECTIONS in this section.
- When an open in air bag wire harness, damaged wire harness, connector or terminal is found, replace wire harness, connectors and terminals as an assembly.

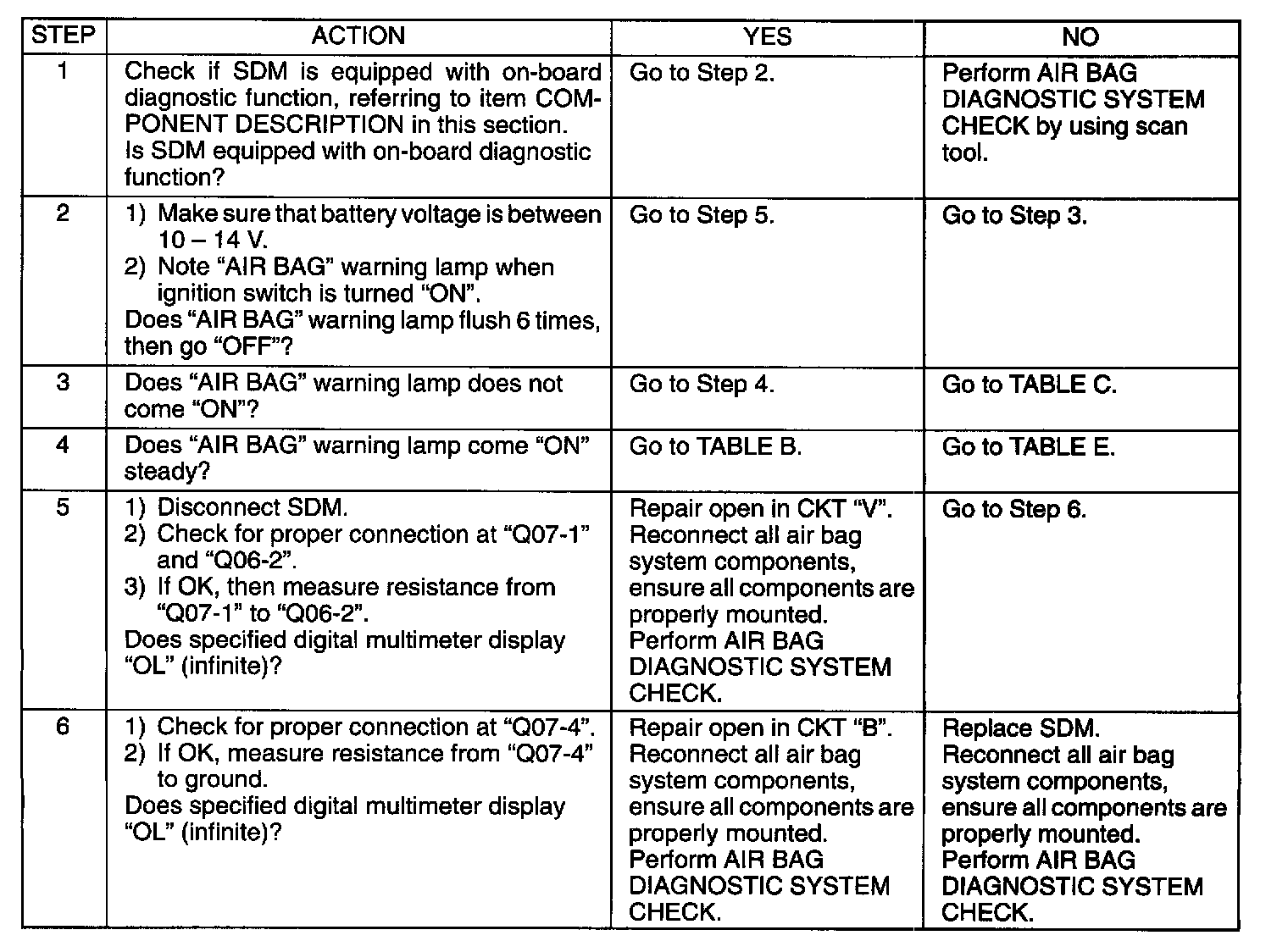

TABLE F (Steps 1 - 6):

TABLE TEST DESCRIPTION:
Number(s) below refer to circled number(s) on the diagnostic table.
1. "AIR BAG" warning lamp should flash 6 times after ignition is first turned "ON".
2. This test checks for an open in CKT "V".
3. This test checks for an open in CKT "B".
