Floor

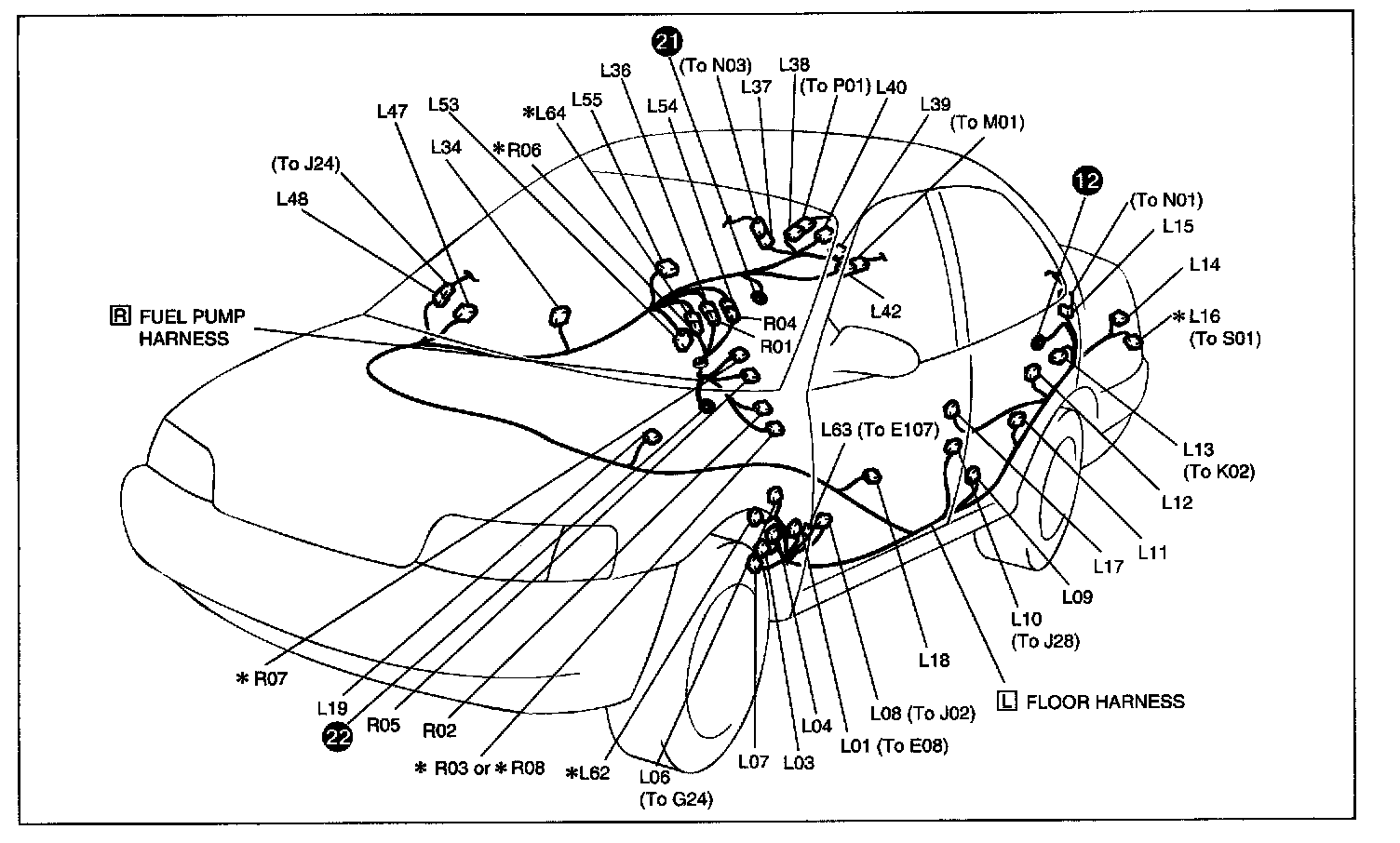

L: Floor Harness, R: Fuel Pump Harness (For Sedan):

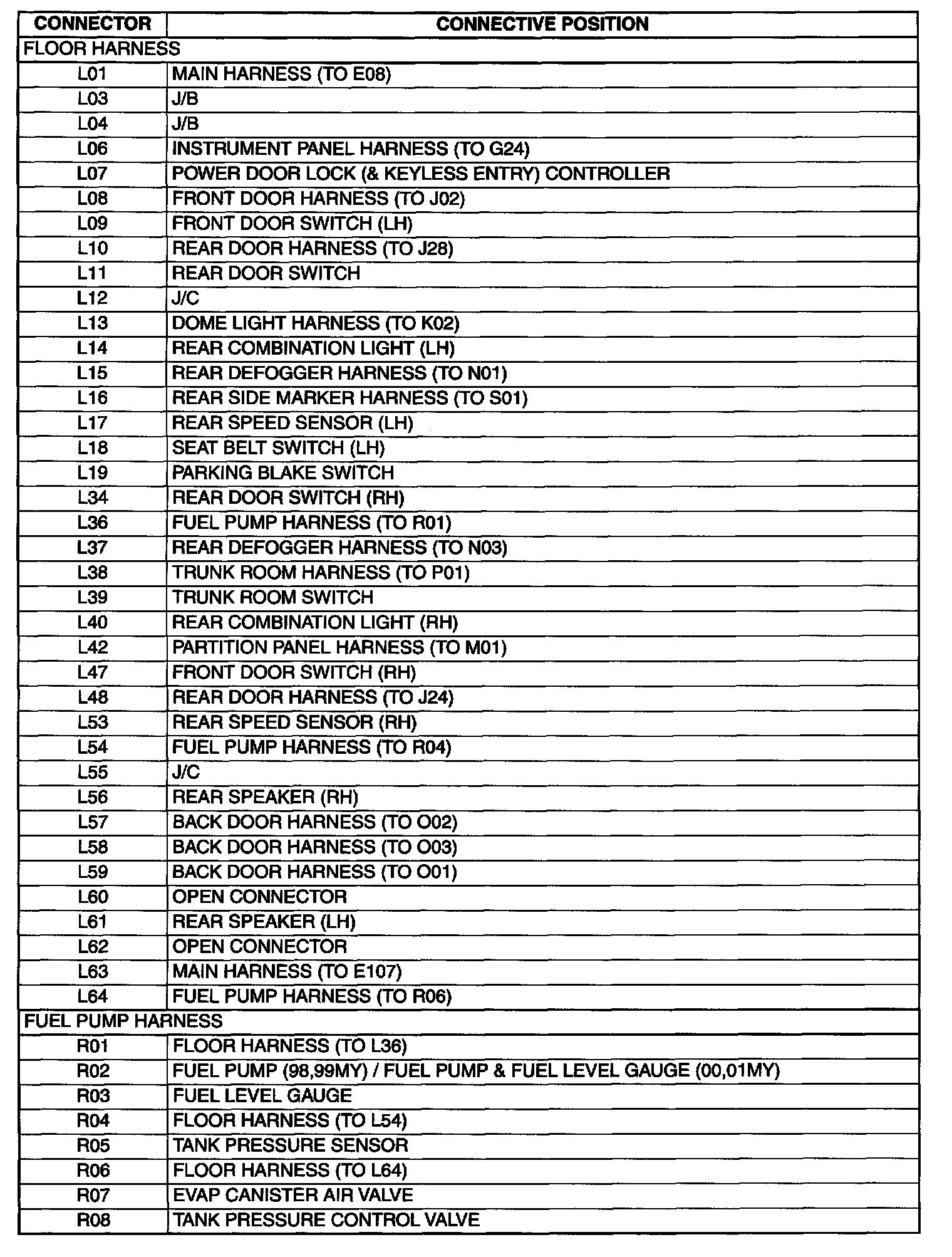

L: Floor Harness, R: Fuel Pump Harness (For Sedan), L: Floor Harness, R: Fuel Pump Harness (For Wagon) Connectors:
