Component Tests and General Diagnostics

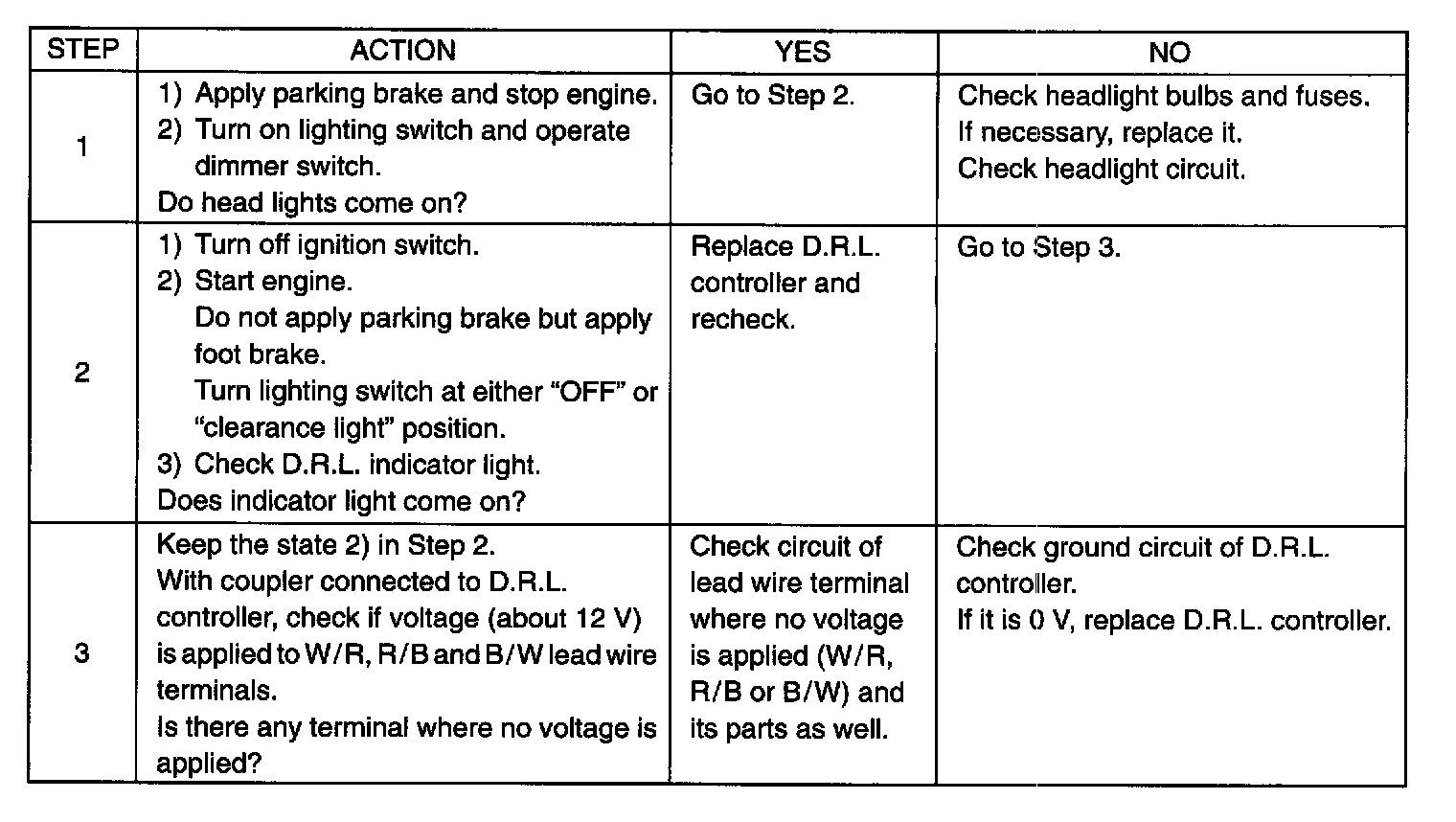

DAYTIME RUNNING LIGHT (D.R.L.) SYSTEM

The terminal numbers (1-9) correspond to numbers on DRL controller terminal numbers shown in wiring circuit.

NOTE: D.R.L. controller is located under instrument panel at the left of column hole cover stay.
