Power and Ground Distribution

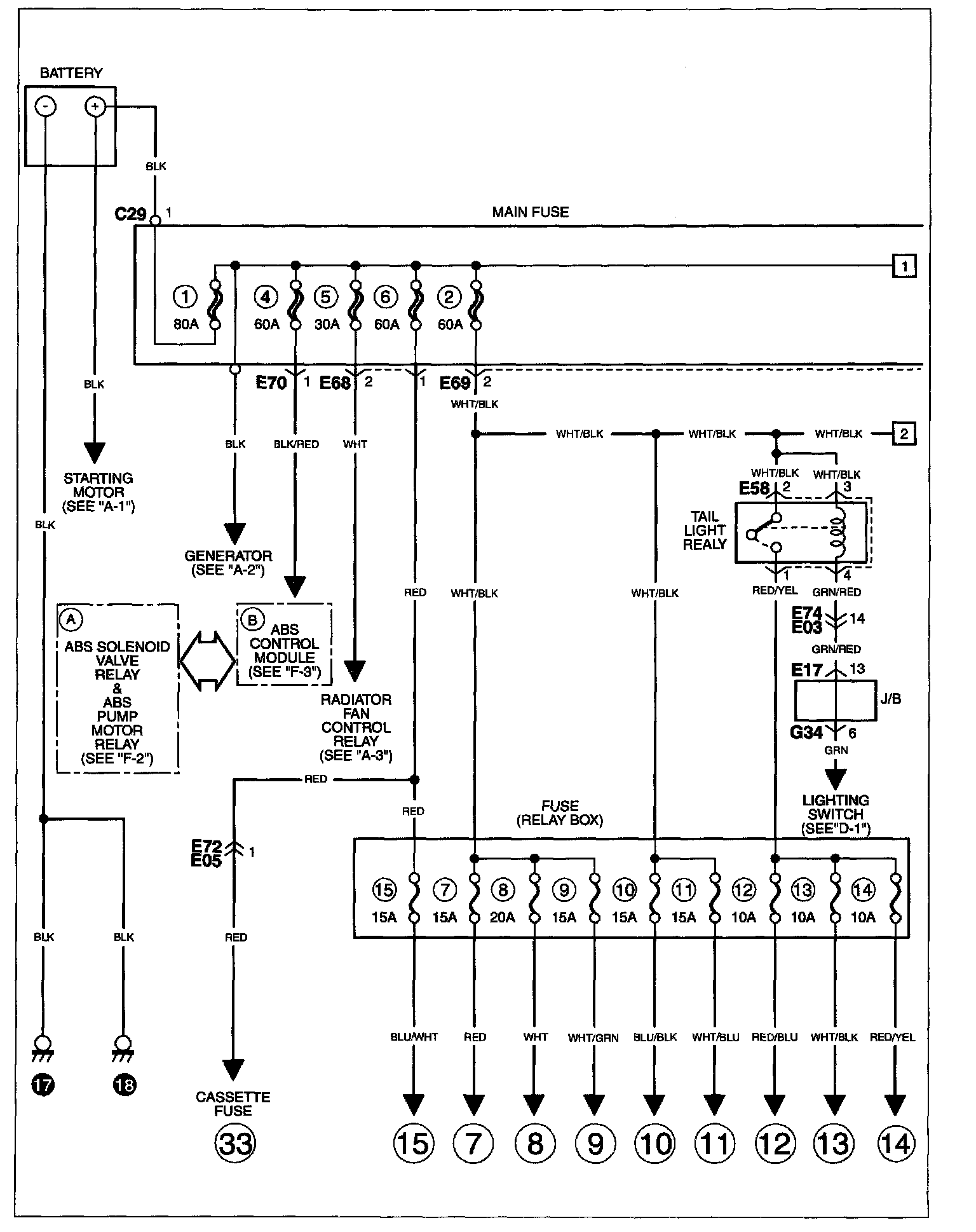

Power Supply Diagram Part 1:

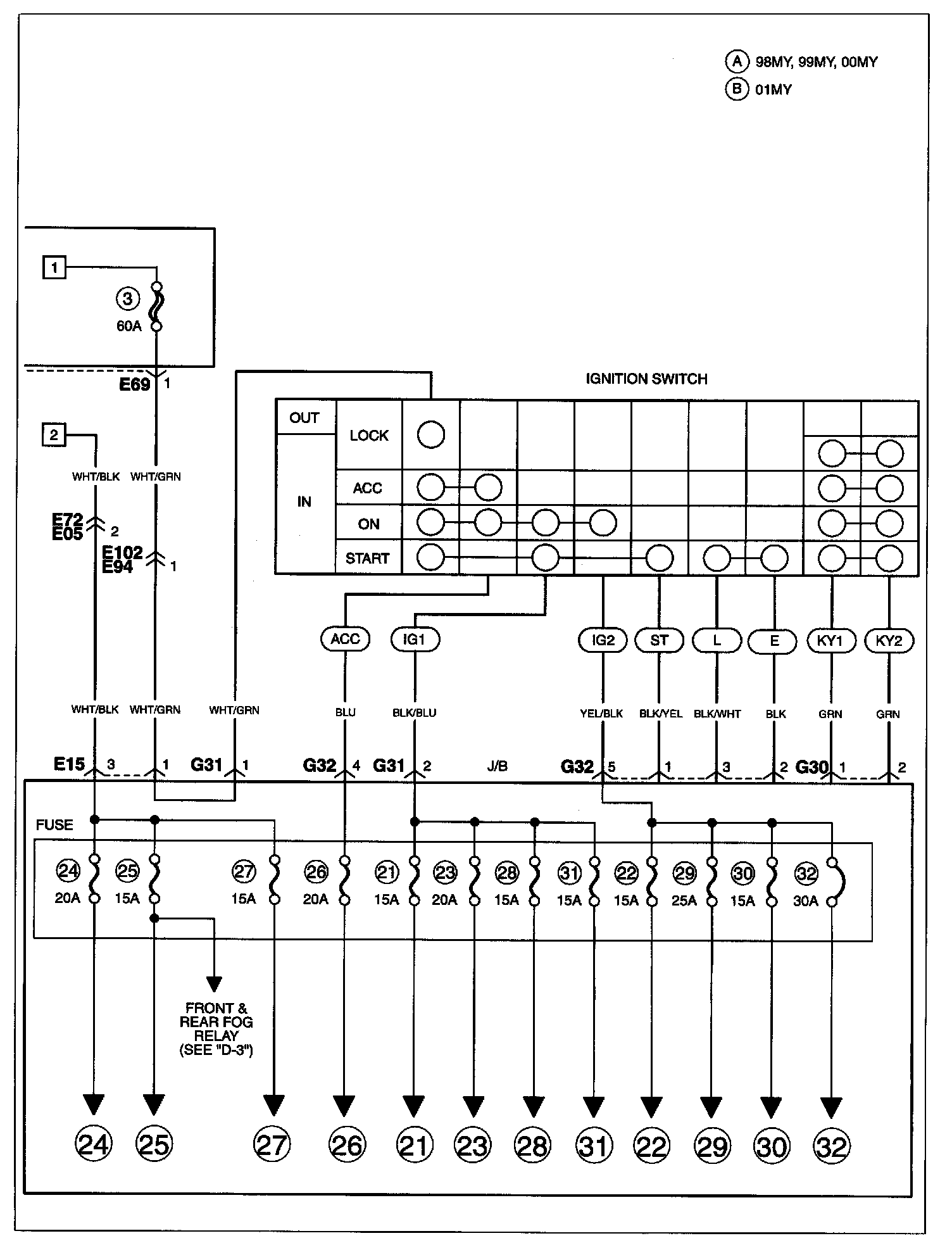

Power Supply Diagram Part 2:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
