Courtesy Lamp

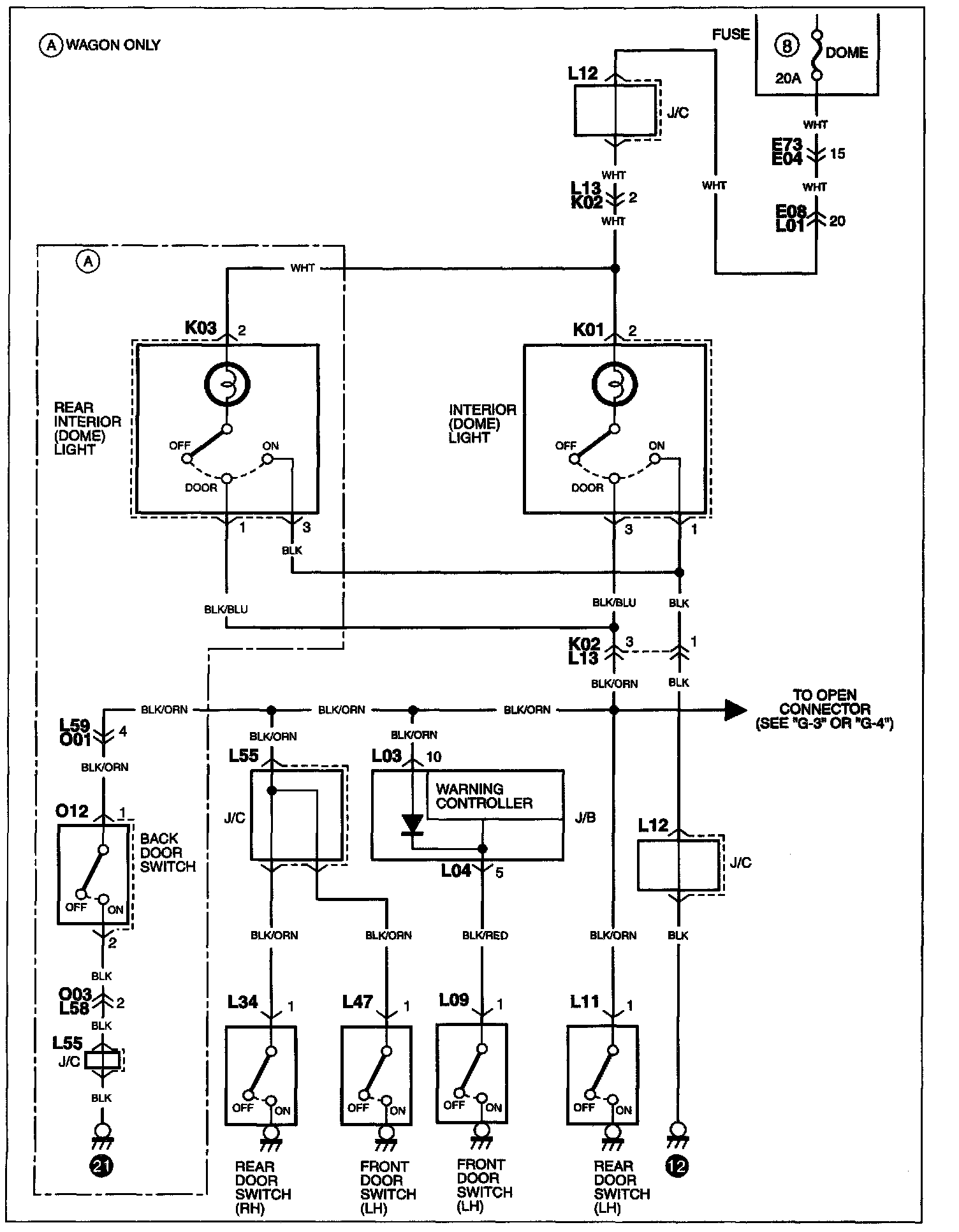

D-4 Interior Light <Vehicle Without Keyless Entry Or With Optional Keyless Entry>:

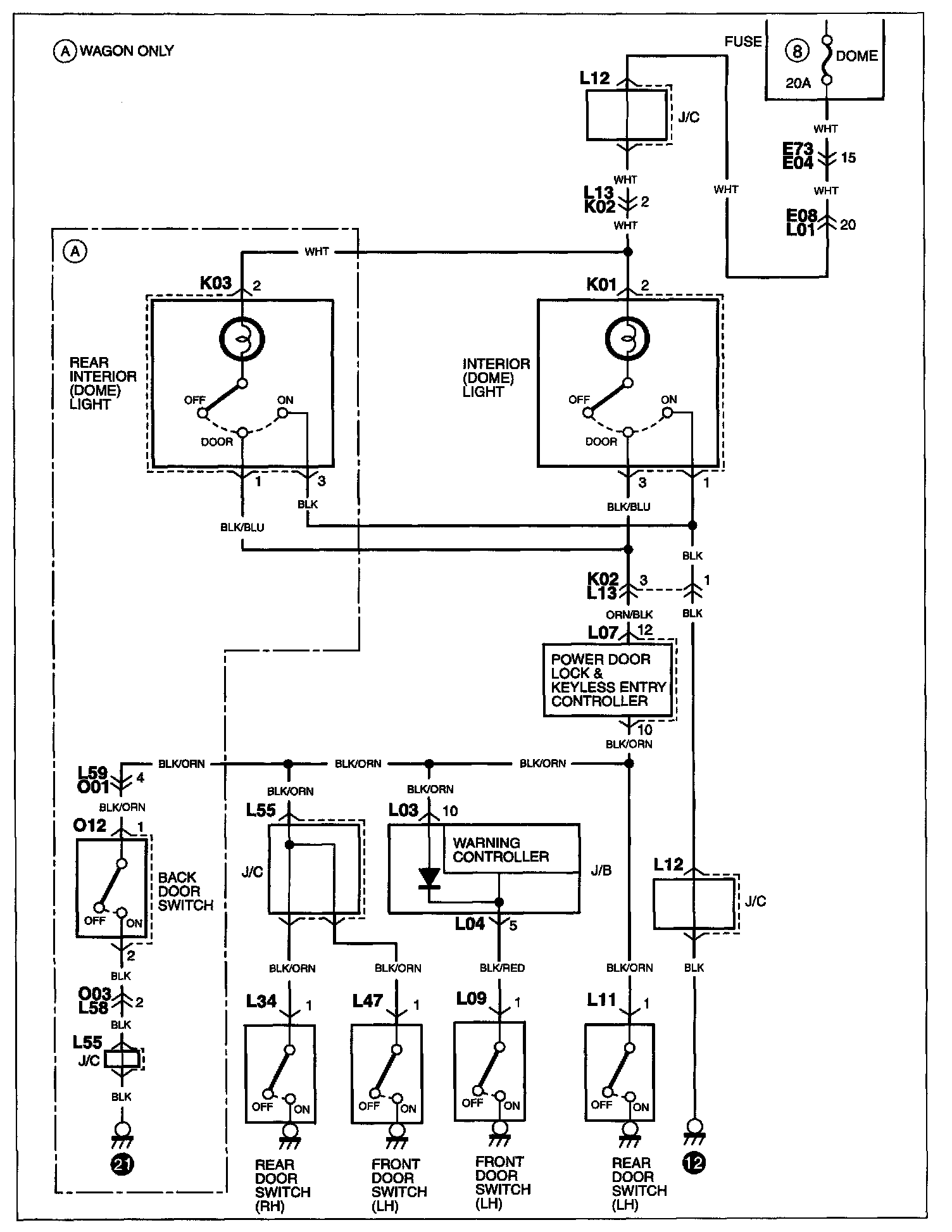

D-5 Interior Light <Vehicle With Keyless Entry As Standard Equipment>:

NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
