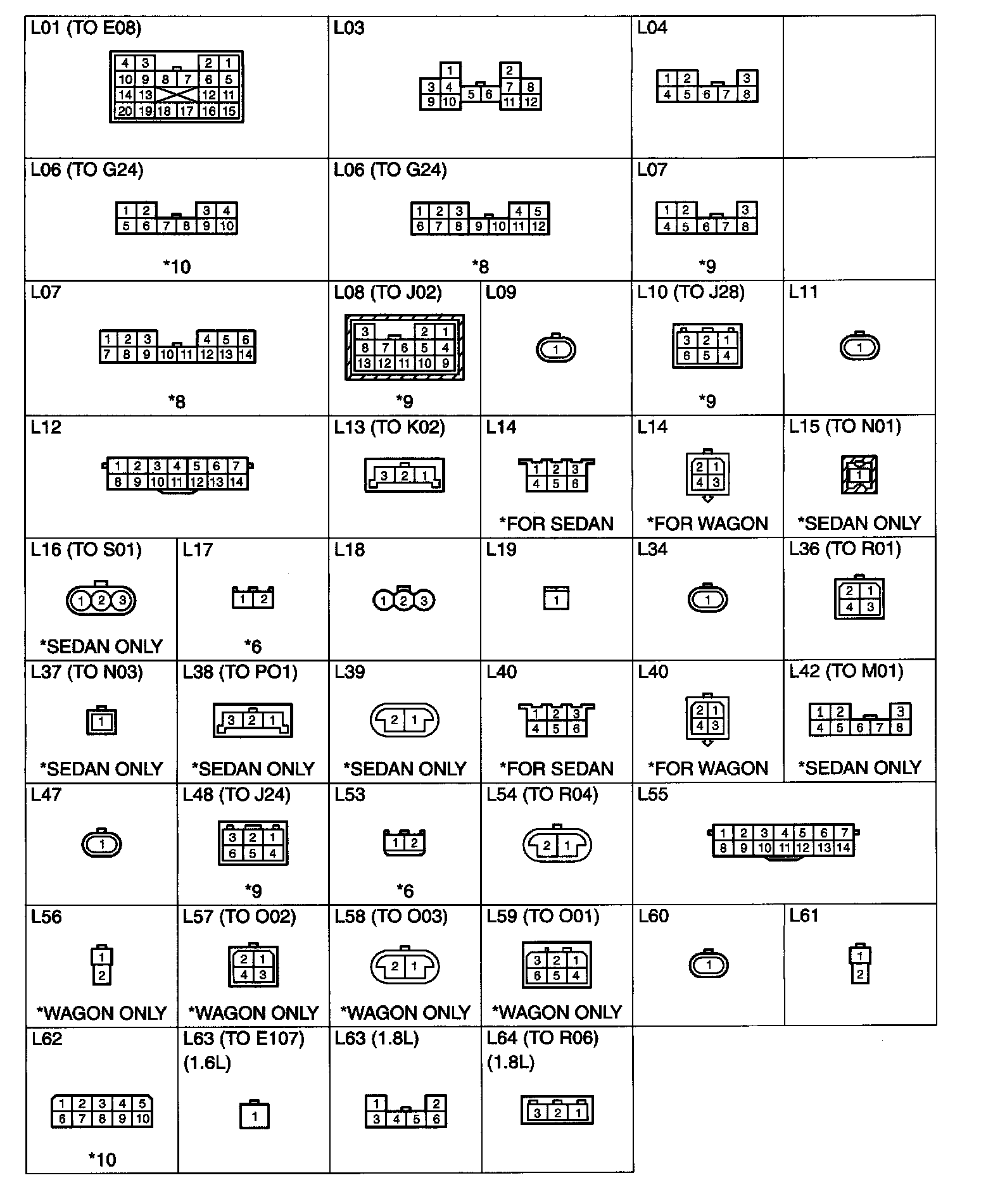

L Connectors

L01 (To E08)- L64 (To R06):

NOTE:
*6: For vehicle equipped with ABS
*8: For vehicle equipped with keyless entry as the standard equipment
*9: For vehicle equipped with power window
*10: For vehicle not equipped with keyless Entry
