Front Seat Removal and Installation

Front Seat Removal And Installation

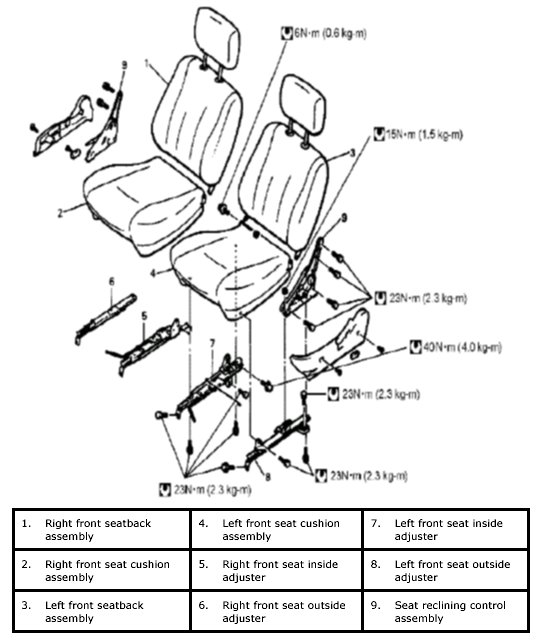

Front Seat Components:






Removal

1. Remove five seat rail mounting bolts. Then, remove seat assembly with seat rail.
2. Disassemble and repair seat as necessary.

Installation

Reverse removal procedure to install front seat.
Torque it to specifications.
