Power Door Lock Actuator: Testing and Inspection

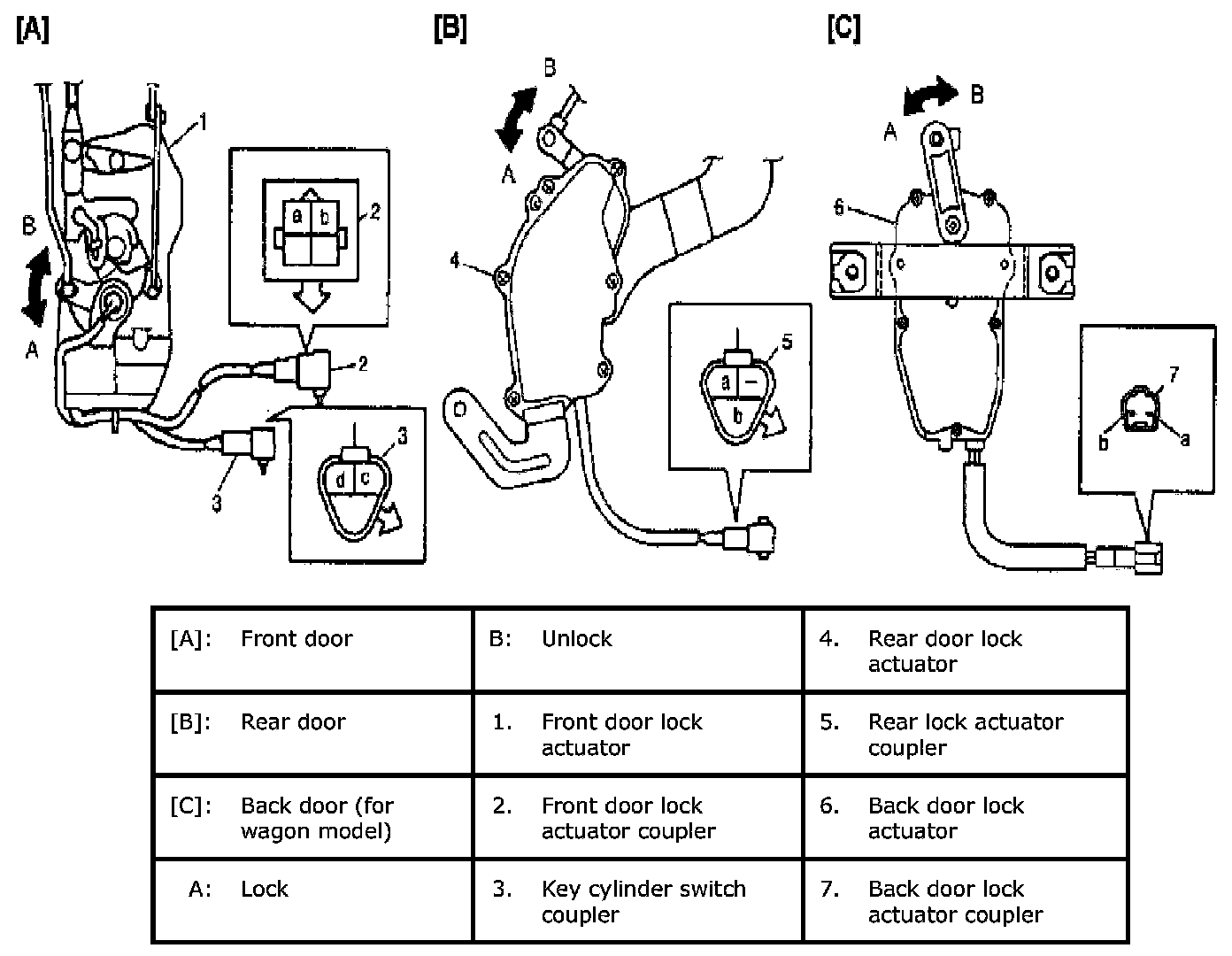

Power Door Lock Actuator Inspection

1. Disconnect power door lock actuator coupler.
2. Connect (+) cord and (-) cord of 12 V battery to coupler terminal "a" and "b".
3. Actuator is proved to be operating properly if (-) cord connection to terminal "a" results in Lock and its connection to terminal "b" results in Unlock.
