P0461

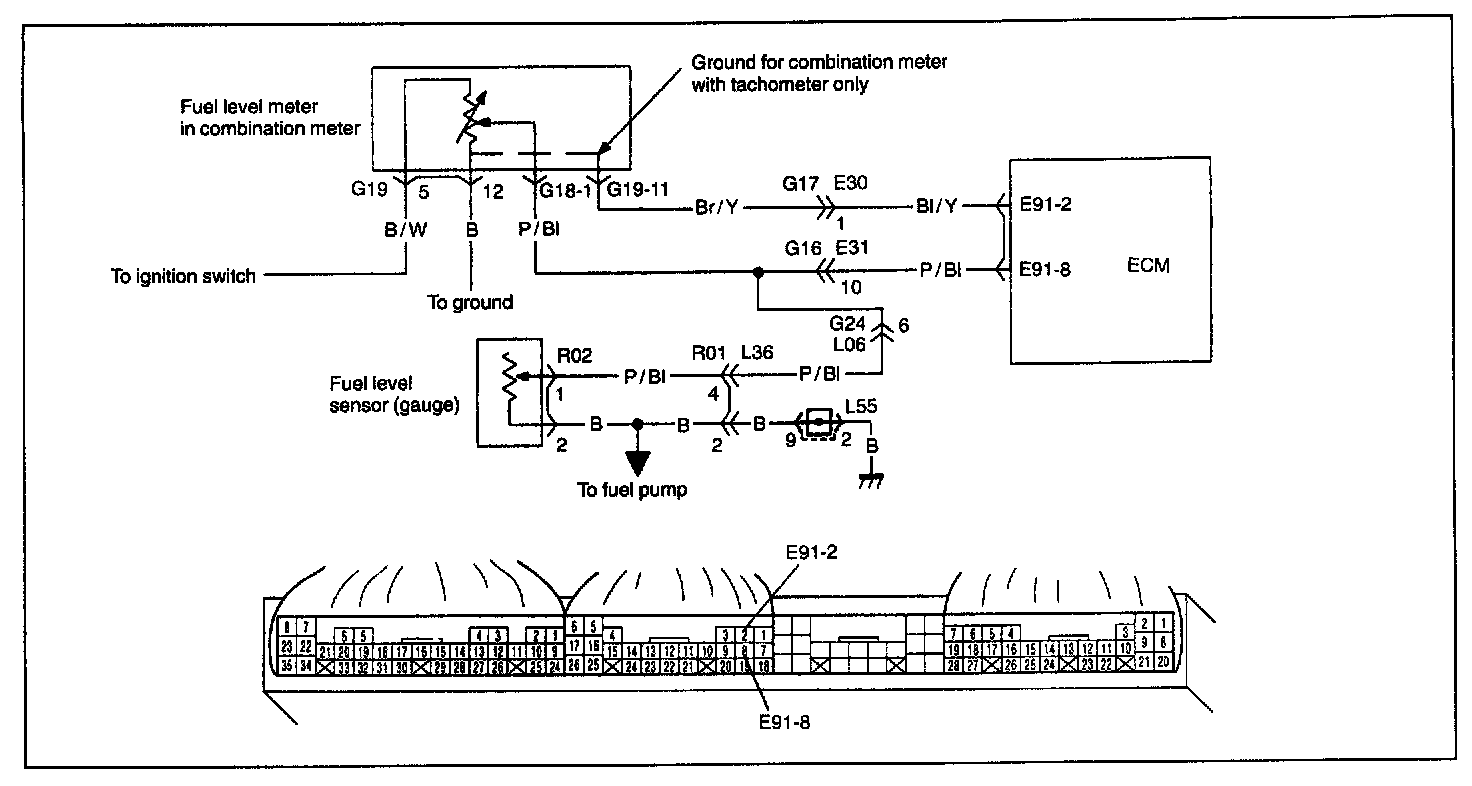

Wiring Diagram:






Detecting Condition / Trouble Area:






DTC CONFIRMATION PROCEDURE
System circuit confirmation inspection is included in DTC P0461 Diag. Flow Table.

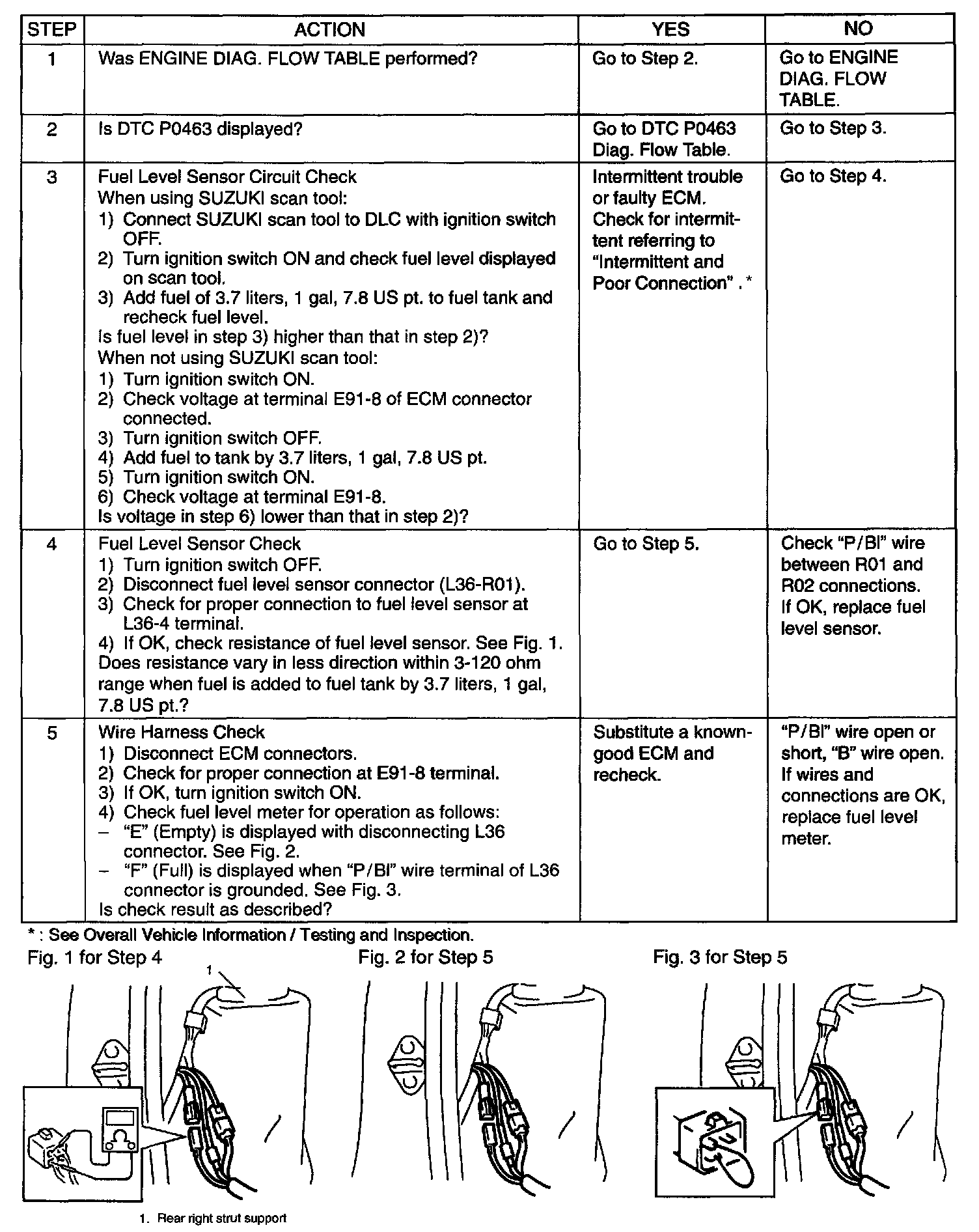

Troubleshooting (Steps 1 - 5):
