DTC 18





DESCRIPTION

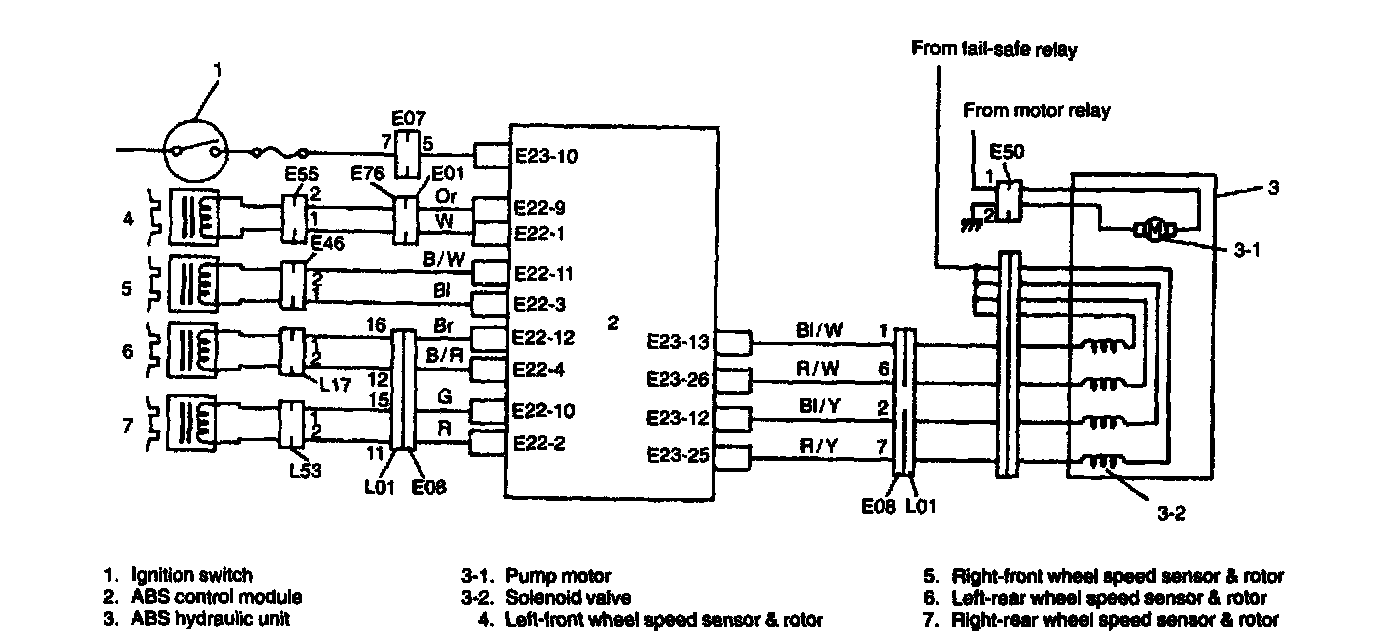

When no other malfunction DTC is detected and ABS control is performed for longer than approx. 1 minute continuously (high and low voltage repetition was detected for longer than approx. 1 minute continuously at the solenoid monitor terminal "E23-12", "E23-13", "E23-25" or "E23-26") this DTC will be set.

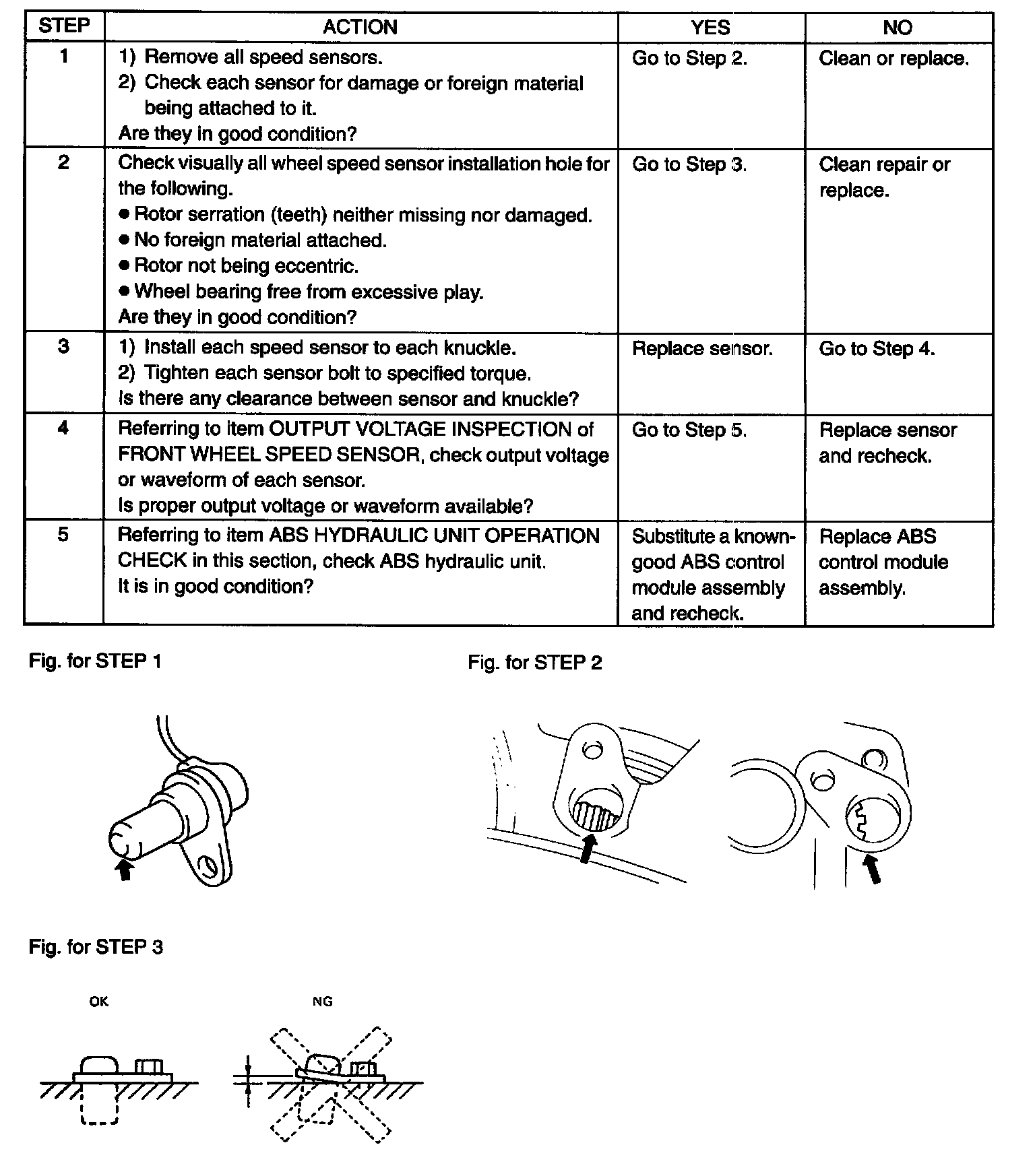

Steps 1-5:





INSPECTION
