Test A: Abs Warning Light Inoperative

Turn ignition on. If other warning lights operate, go to next step. If none of the warning lights operate, check IG fuse. Replace fuse if necessary. If fuse is okay, repair open Black/White wire between IG fuse and combination meter (instrument cluster).
Remove combination meter. Check ABS warning light bulb. Replace bulb if necessary. If bulb is okay, repair open Red/Blue wire between combination meter and ABS control module harness connector E23, terminal No. 19. See Fig 1 and Fig 2 .

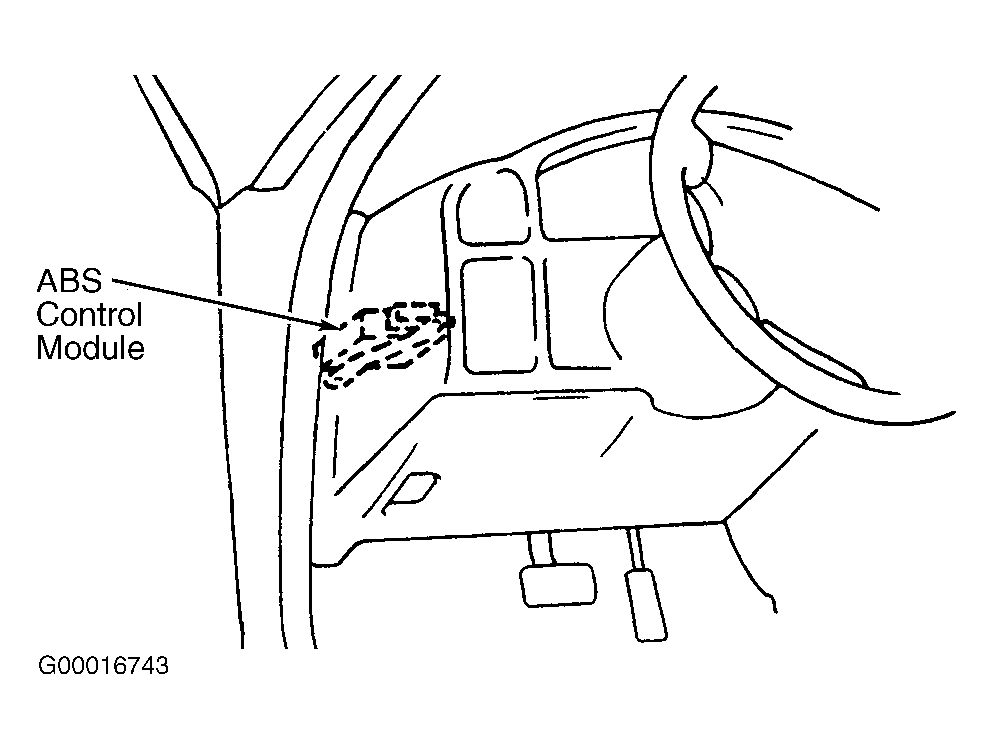

Fig 1: Identifying ABS Control Module Location

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying ABS Control Module Harness Connector Terminals (View From Back Of Connector)

Courtesy of SUZUKI OF AMERICA CORP.
