Table B-1 Overdrive (O/D) Cut Switch Circuit Check

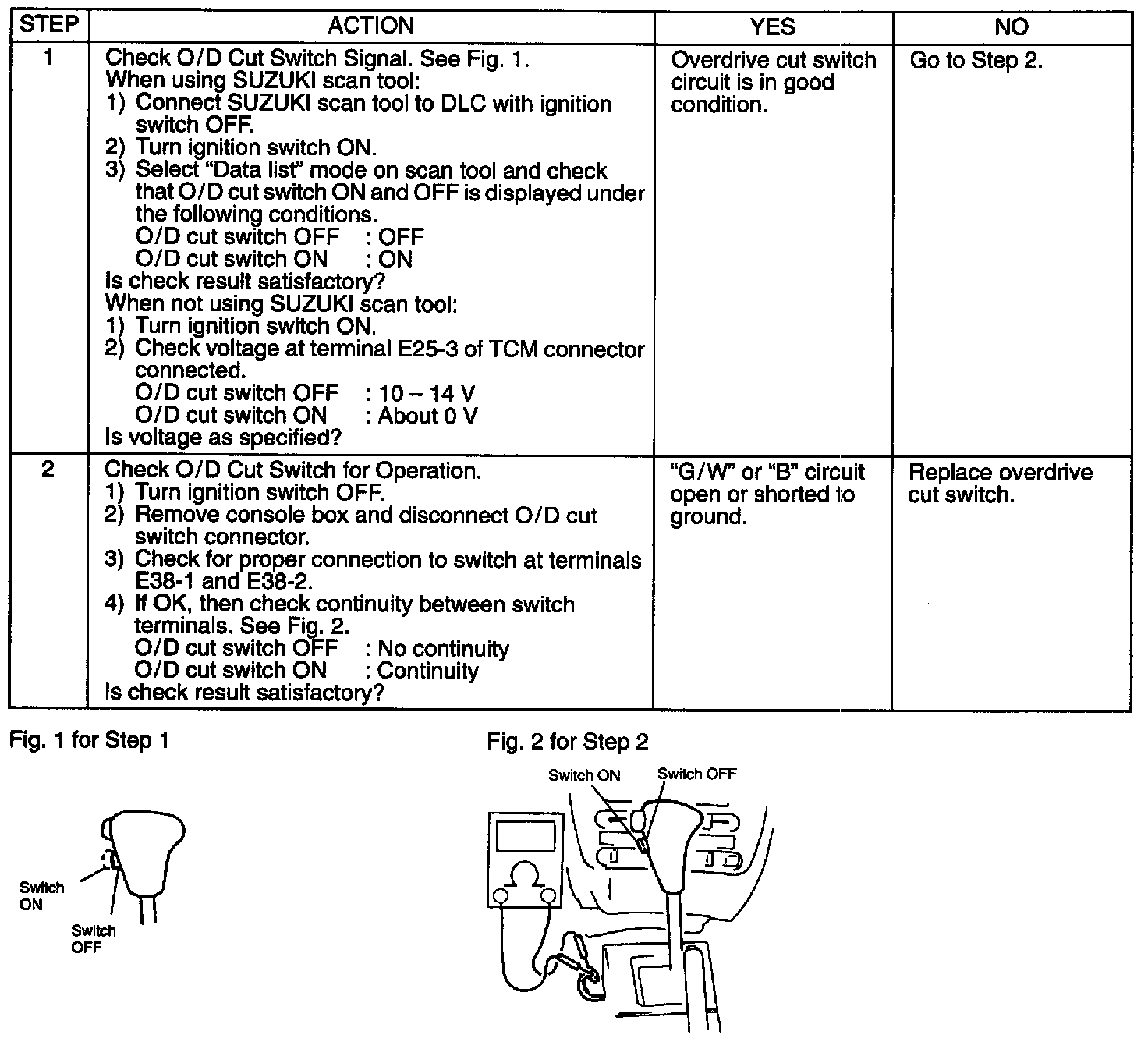

TABLE B-1 OVER-DRIVE (O/D) CUT SWITCH CIRCUIT CHECK





WIRING DIAGRAM





INSPECTION
