Table A-4: TCM Power and Ground Circuit Check

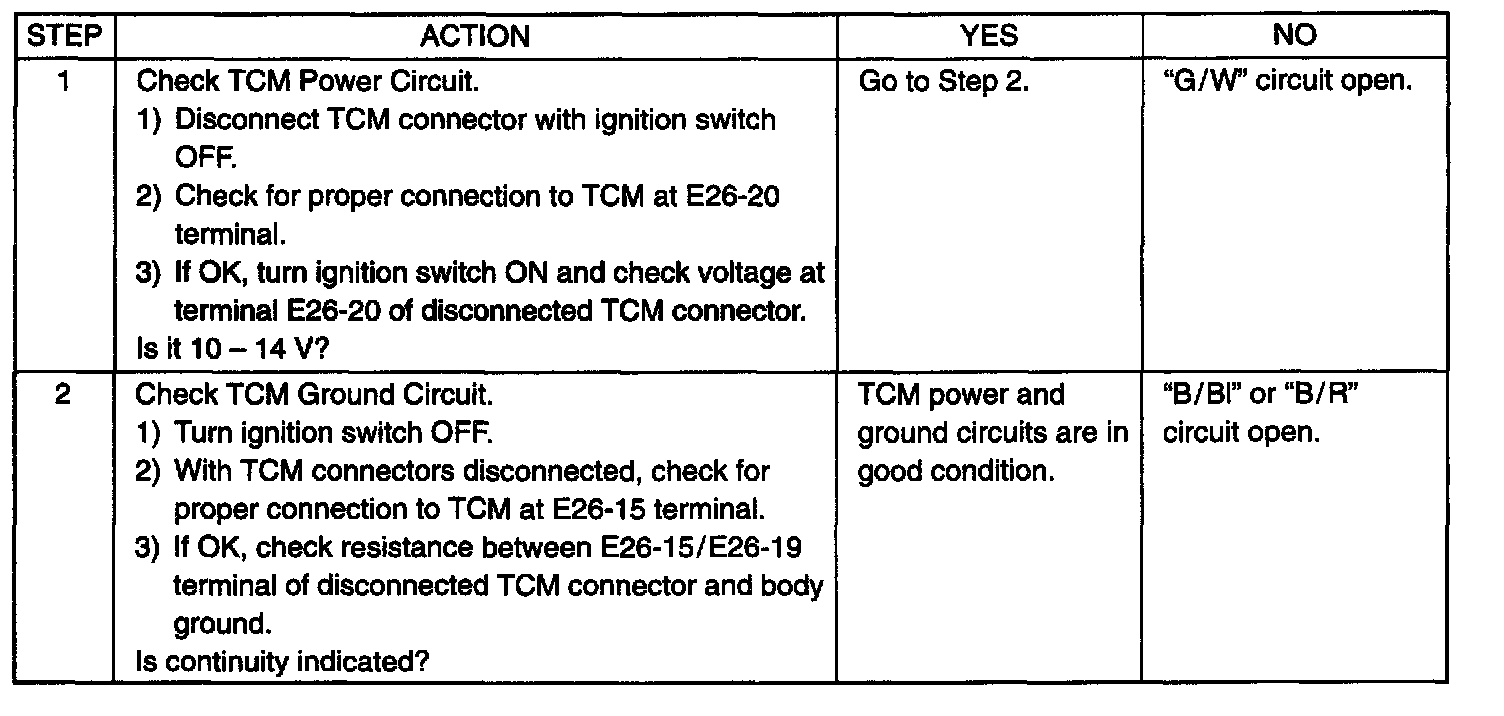

TABLE A-4 TCM POWER AND GROUND CIRCUIT CHECK





INSPECTION
