Blower Motor: Service and Repair

Blower Motor Unit

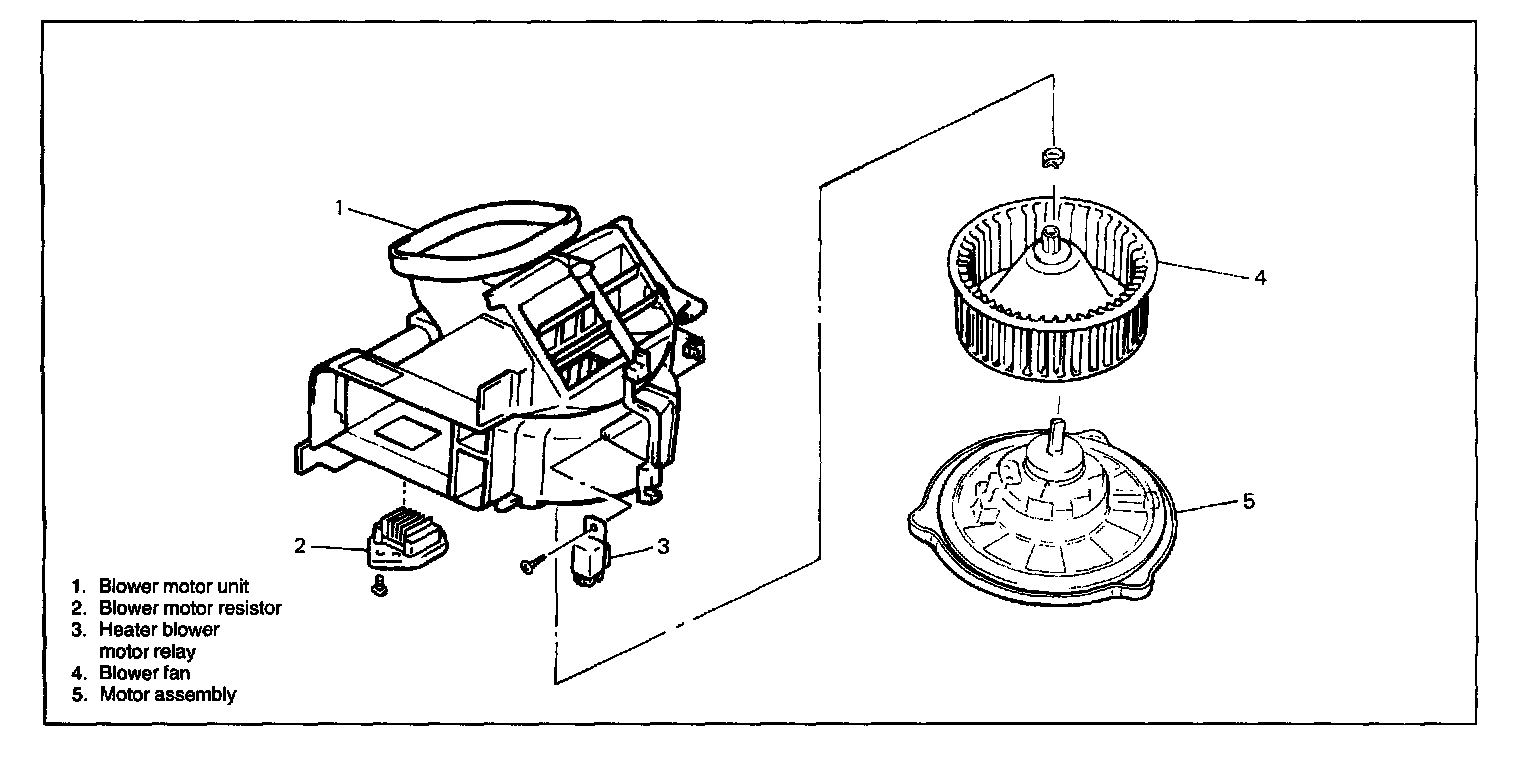

COMPONENTS

REMOVAL




1. Disconnect negative (-) cable at battery.
2. Disable air bag system.
3. Remove glove box, ECM and instrument panel lower member.
4. Disconnect blower motor, heater resistor and heater blower motor relay lead wires at couplers.
5. Disconnect fresh air control cable from blower motor unit.
6. Remove blower motor unit.

INSTALLATION




1. Reverse removal procedure for installation.
2. Enable air bag system.
